Water Damage Restoration - Wall Cavity Drying Package

  Status: In-Stock

  • High-Quality Drying Package
  • Efficient Cavity Drying
  • Powerful Aerial ASE 300 Dehumidifier
  • AERCUBE® Manifold Tower System
  • Essential Accessories Included
  • Fantastic Value Deal
£4,440.96
Sales Team: 0808 196 9381

Call FREE: Mobiles & Landlines

Description

Wall Cavity Drying Package

Efficient targeted drying in a fantastic deal

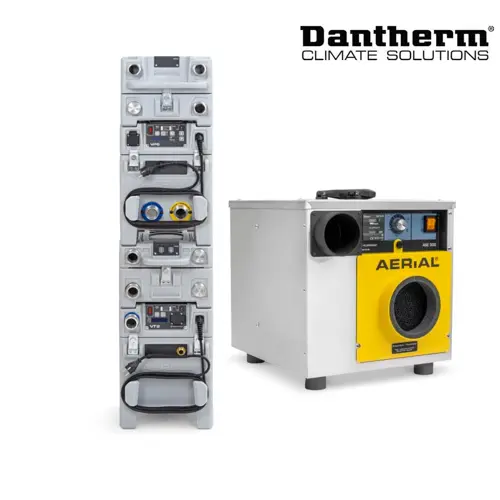

This professional restorer’s kit is complete with the optimal equipment for rapid and efficient drying of wall cavities and other confined, hard-to-reach places following a flood, leak or larger escape of water. Featuring the AERCUBE® Manifold System and ASE 300 desiccant dehumidifier with essential accessories, this fantastic package delivers a complete professional water damage restoration solution.

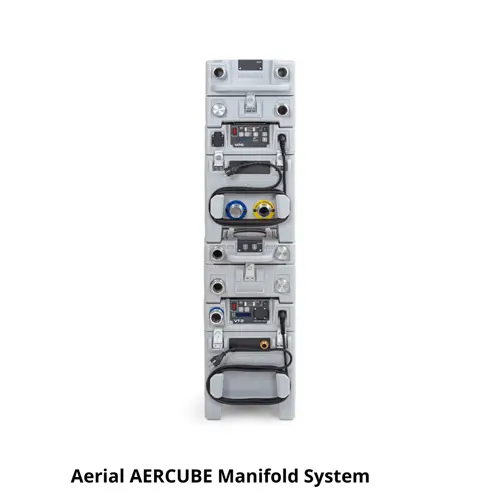

AERCUBE® Manifold System

Built in a convenient tower design, the AERCUBE® Manifold System is an innovative solution designed for drying wall cavities efficiently after water damage, preventing mould growth and structural damage.

All AERCUBE® modules included in this kit are designed to work in conjunction and seamlessly fit together in a stable tower construction. You can stack and lock the units together to safely store or transport the AERCUBE® system without the risk of tipping. The the rounded edges and corners maximise both comfort and safety whilst lifting and carrying the units, as well as prevent damage or injury of people and property.

A broad range of ergonomic handling and carrying options are available to ensure quick and convenient portability to the damage site. Plus, the lightweight design of each makes it possible for the units to be transported by one person. The AERCUBE® units are extremely robust and environmentally-friendly—all housing components are 100% recyclable, backed by a 5-year warranty.

TARGET DRYING METHOD

This advanced drying kit provides various methods of effective wall cavity drying. You can deploy the AERCUBE® series in combination with the Aerial ASE 300 Desiccant Dehumidifier for a professional air-drying solution.

Flexible hoses are connected from the AERCUBE® units to the wall cavities through pre-drilled holes or existing openings. Once this system is set up, the AERCUBE® units generate high-velocity air that is directed into the cavities via the hoses. The powerful airflow helps to evaporate moisture trapped within the walls, accelerating the drying process.

PROFESSIONAL DEHUMIDIFICATION

As the air circulates through the cavities, it collects moisture and carries it out of the walls via the connection hoses. The AERCUBE® units work in conjunction with the Aerial ASE 300 dehumidifier to remove moisture from the air, preventing it from re-entering the walls and ensuring a dry climate.

Moisture and free water are suctioned and separated by the VT 2 Water Separator via the manifold hose system. This process is aided by the vacuum pressure generated by the VP 6 Turbine. The ASE 300 The two-stage HEPA Filtration System HF 2 captures and removes dirt, bacteria and biomass, ensuring maximum hygiene to prevent room pollution and to protect each module throughout the process. Meanwhile, the SD 2 Sound Absorber is to be connected in order to minimise noise and disruption. The ASE 300 will efficiently remove remaining humidity from the filtrated air.

Specification

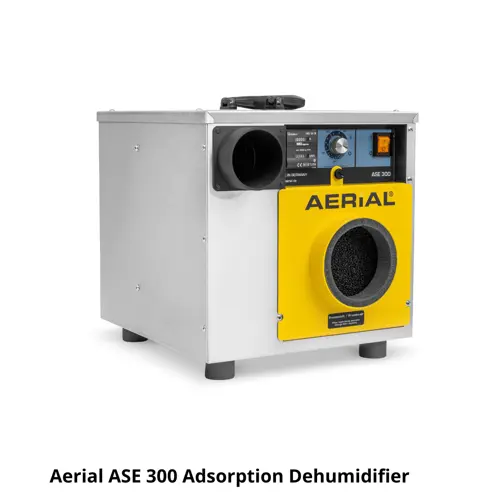

ASE 300 Adsorption Dehumidifier Specifications
Capacity (20°C/60% RH)   25.7 L/24h
 Air Volume - dry air/regeneration air (m³/h)    300/110
Ext. pressure - dry air/regeneration air   150/50 Pa
Operating temperature range (°C)   -10 - +35
Operating humidity range (%)    10 - 95
Nominal power consumption (W)   1040
Power supply   230/1ph/50
Sound level (dB(A))   57
 Duct sizes   -
Air inlet   125 Ø mm
Dry Air Outlet   1x100 or 2x50 Ø mm
Regeneration Air Outlet   80 Ø mm
Dimensions [mm]   370 (H) x 335 (W) x 430 (D)
 Weight (kg)   18
AERCUBE VP 6 Noise Box Specifications
Blow type   Brushless high-performance turbine blower
 Air flow (free blowing) [Speed:m²/m³/h]   1/15/80 - 2/30/140 - 3/50/190 - 4/70/250
Excess pressure (mbar)   270
 Low pressure (mbar)   220
 Motor power (W)   1,280
Operating temperature range (°C)   0 - 38
Power supply (V/Hz)   230/1ph/50
 Sound level @ 3m (dB(A))   57
Power cord (m)   4.5m with plug, heavy-duty version, (H07 cable) with magnet holder for plug
Protection class (IP)   IP44
Dimensions [mm]   507 (H) x 390 (W) x 455 (D)
 Weight (kg)   15
AERCUBE HF 2 HEPA Filter Specifications
Inserted air filter   Each 1 pc. is included with the delivery - prefilter G4 - HEPA-Filter H13 acc. EN1822 (Separation MPPS > 99.95%)
 Max. air flow (m³/h)    270
Control/operation   LED indicator for filter change and button for battery check
 Dimensions [m]   260 (H) x 390 (W) x 490 (D)
 Weight (kg)   6
AERCUBE VT 2 Water Separator Specifications
Pump type   Robust sewage pump
 Conveyor volume (m³/h)    7
Max. conveyor height (m)   5
Tank volume (L)   20
 Operating temperature (°C)    3 - 38
 Power consumption (W)   260
 Power supply (V/Hz)   230/1ph/50
 Power cord (m)   4.5m with plug, heavy-duty version (H07 cable) with magnet-holder for plug
 Protection class (IP)   IP44
 Dimensions [mm]   507 (H) x 390 (W) x 490 (D)
 Weight (kg)   18

AERCUBE SD 2 Sound Absorber Specifications
Max. Air Flow (m³/h)   220
Dimensions [m]   300 (H) x 390 (W) x 490 (D)
 Weight (kg)   6

What's In The Box

1 x Aerial VP6

1 x Aerial ASE 300

1 x Manifold System

1 x 80mm Ducting

1 x 50mm Hose
