DRYING EQUIPMENT SPECIALISTS

Water Damage Restoration / Renovation and Restoration Works – Air Quality Management – Professional Kit

  Status: In-Stock

  • Premium Air Quality Management Kit
  • Portable Air Management Solution
  • HEPA 99.95% Filtration System
  • App-Controlled Wireless Particle Counter
  • Professional Containment Wall
  • Includes Accredited 2-Day Course
£3,737.98
Sales Team: 0808 196 9381

Call FREE: Mobiles & Landlines

Description

Professional Air Quality Management Made Easy

Features Free 2-Day Professional Course

Managing healthy air quality during restoration or renovation work has never been easier. With this professional air quality management kit, you can analyse, monitor and manage all room climate parameters during any construction or drying process. Featuring premium devices, air purification, filtration, and dust protection is simple, straightforward and professional.

With an official Dantherm Solutions Academy 2-Day Water Damage Restoration Course, this kit is a fantastic package deal—providing everything you may need to efficiently and economically mitigate flood and leak damage in any affected building or structure. The course offers you the opportunity to gain a new skillset in how to professionally restore water damage in buildings with expertise in quality, safety and cost efficiency. Or you can build upon existing skills and knowledge, with the opportunity to claim 6-8 CPD points.

Powerful Two-Stage Filtration System

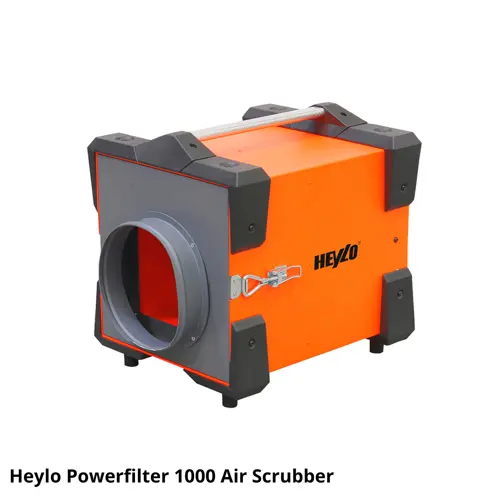

Heylo Powerfilter 1000 Air Scrubber

Featuring the powerful Heylo PowerFilter 1000 air scrubber, a portable air management solution for construction or restoration works. The mobile air filter offers a powerful two-stage filtration system to remove suspended particles in the ambient air. The class G4 pre-filter is included in the kit in a set of five. This preliminary filter is for extracting coarse dust up to 3µm, such as cement dust, spores and pollen.

Also provided is a HEPA class H14 main filter: a particulate air filter to capture dust and airborne particles up to 1µm with >99.995% separation efficiency, plus protection from bacteria and viruses. The device may be installed inside or outside the target zone, thanks to the conveniently supplied 7.6m length of Ø205mm ducting including a fixing strap.

10-In-1 Environmental Measuring Device

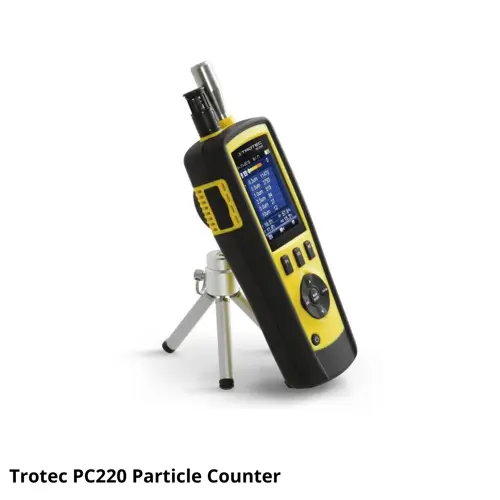

Trotec Particle Counter PC220

The PC220 is a versatile hand-held environmental measuring device for air particle monitoring, gas detection and climate data logging. The PC220 features a continuous data recording function, which allows you to save up to 5,000 measured values on the internal memory—this capacity can be expanded by up to 16GB using an additional MicroSD card. All detected data can be documented digitally in image or video format, on the 2.8-inch colour LCD display. Plus, an automatic acoustic alarm is integrated for the quick detection of critical particle concentrations.

Dust-tight Barrier For Clean Rooms

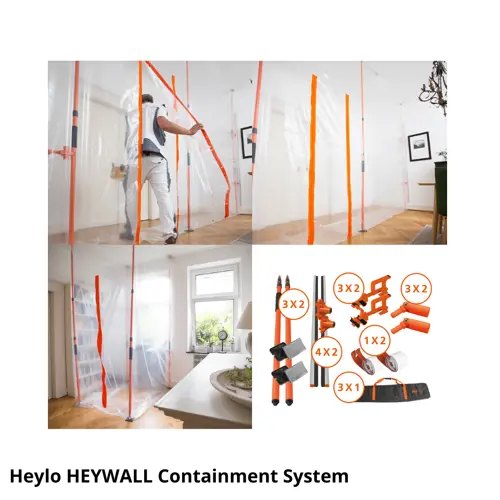

Heylo HEYWALL Containment System

The Heylo HEYWALL Containment System creates a seal-tight barrier to separate partial rooms for construction or renovation work. This convenient, time-saving dust protection system ensures clean rooms during construction, avoiding subsequent cleaning. The HEYWALL modular system is tool-free, quick and easy to set-up, requiring no covering of doors, windows and furniture, nor any disposal costs.

The system consists of extendable aluminium pole bars up to 5m high, with plastic foil that creates a dust-tight barrier. The system can be set up in any angle, as a room divider or in various shape formations. The self-adhesive zippers facilitate practical entry and exit of the construction zone.

Specification

HEYLO PowerFilter 1000 Air Cleaner
Ventilator air flow without filters [m³/h]:  917
Max. low pressure [m³/h]:  760
Air volume freely blowing [m³/h]:  515
Volumetric flow rate HiDry (sucking in) [m³/h]:  346
Max. motor power [kW]:  0.185
Power supply [V/Hz]:  230 / 1 ph / 50
Nominal current consumption [A]:  1.33
Fuse IP44
Sound level [Db(A)]:  0 - 66
Hose intake/outlet side [Ømm]:  205
Dimensions [mm]:  490 (L) x 350 (W) x 410 (H)
Weight [kg]:  14
Trotec PC220 Particle Counter
Particle concentration Number of channels:  6
Channel sizes: 0.3µm, 0.5µm, 1.0µm, 2.5µm, 5.0µm, 10.0µm
Particle counting Counting modes:  Concentration, cumulative, differential
Counting efficiency:  50% at 0.3µm, 100% for particles > 0.45µm
Flow rate 2.83l/min (0.1ft³/min), controlled by internal pump
Zero count < 1 particle / 5 min
Coincidence loss 5%, 2 million particles per ft³ (28.3 litres)
Detector type Light-scattering measurement
Sample inlet Isokinetic probe
Particle mass conversion Particle mass conversion:  2.5µm, 10µm
Min. - Max. measuring range [µg/m³]:  0 - 2,000
Resolution [µg/m³]:  1
HCHO (formaldehyde) Min. - Max. measuring range | Formaldehyde [ppm]:  0.01 - 5
Accuracy ± [%]:  5
Resolution [ppm]:  1
Carbon monoxide Min. - Max. measuring range [ppm]:  10 - 1,000
Accuracy ± [%]:  5
Resolution [ppm]:  1
Air temperature Min. - Max. measuring range [°C]:  0 - 50
Min. - Max. measuring range [°F]:  32 - 122
Accuracy ± 10°C - 40°C [°C]:  0.5
Temperature below 10°C - Temperature above 40 °C [°C]:  1
Accuracy ± 50°F - 104°F [°F]:  0.9
Temperature below 50°F - Temperature above 104°F [°F]:  1.8
Relative humidity Min. - Max. measuring range [%]:  0 - 100
Accuracy 0% - 20% [%]:  5
Accuracy 20% - 40% [%]:  3.5
Accuracy 40% - 60% [%]:  3
Accuracy 60% - 80% [%]:  3.5
Accuracy 80% - 100% [%]:  5
Dew point temperature Min. - Max. measuring range [°C]: 0 - 50
Min. - Max. measuring range [°F]: 32 - 122
Accuracy ± 10°C - 40°C [°C]:  0.5 - 1
Accuracy ± 50 °F - 104 °F [°F]:  0.9 - 1.8
Wet-bulb temperature Min. - Max. measuring range [°C]: 0 - 80
Min. - Max. measuring range [°F]: 32 - 176
Accuracy [°C]:  1
Accuracy [°F]:  0.9 - 1.8
Display LCD
Colour
Memory organisation Internal flash memory: Up to 5,000 data records
Extended data memory (microSD, optional) - (max. 16 GB
Photo storage format: JPEG (640 x 480)
Video storage format: 3GB (320 x 240)
Interfaces USB
Power supply Internal & External (battery)
Battery type: Polymer Li-ION battery
Charging time: Approx. 2 hours with connected AC adaptor
Operating time Approx. 4 hours of continuous operation
Housing design Plastics
Ambient conditions Operation - min. - Max. temperature [°C]: 0 - 50
Operation - max. relative humidity (non-condensing) [%]: 80
Storage - min. - max. temperature [°C]: -10 - 60
Weight 0.435
Internal sensors Particle concentration [n/l]
Particle concentration [n/m³]
HCHO [ppm]
Carbon monoxide [ppm]
Relative humidity [%]
Air temperature [°C]
Dew point temperature [°C]
Wet-bulb temperature [°C]
Air temperature [°F]
Dew point temperature [°F]
Wet-bulb temperature [°F]
Standard scope of delivery Measuring device
Battery(-ies)
Charger
Zero filter with connection hose
Mini tripod
Transport case
USB cable
Software
Operating manual
Functions and features Backlit display
¼ inch tripod thread
Maximum value display
Minimum value display
Measured value hold function
Reversible time weighting
Acoustic alarm function
Automatic switch-off
Average value display
Language selection
Switching function °C/°F
Photo recording
Video recording
Automatic display switch-off - (90 seconds, 2 minutes or 4 minutes)
Visual alarm function
Calibration function
Heylo HEYWALL Containment System Specifications
System bars (3.6 m) 4
Angle adaptor 4
Zippers 2
Transport bag 1
Box size dimensions [mm]:  1500 (L) x 370 (W) x 420 (H)
Net weight [kg]:  12

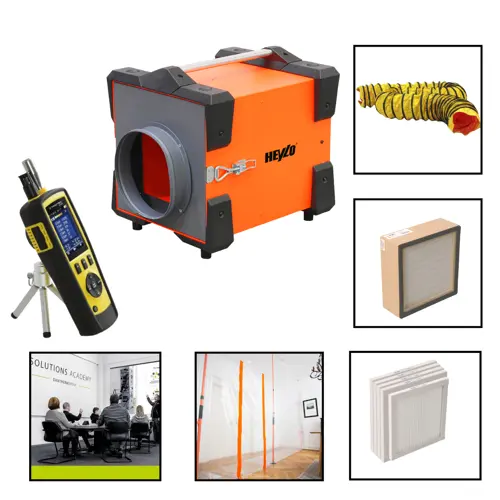

What's In The Box

1 x Heylo Powerfilter 1000 Air Scrubber

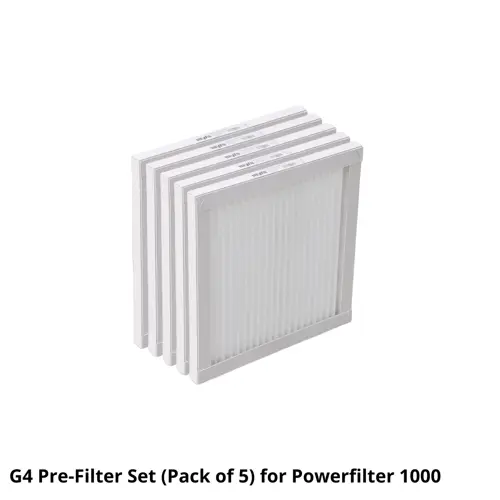

1 x G4 Pre-Filter Set (Pack of 5) for Powerfilter 1000

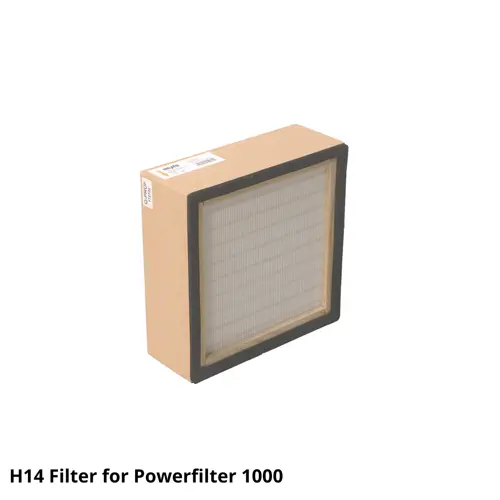

1 x H14 Filter for Powerfilter 1000

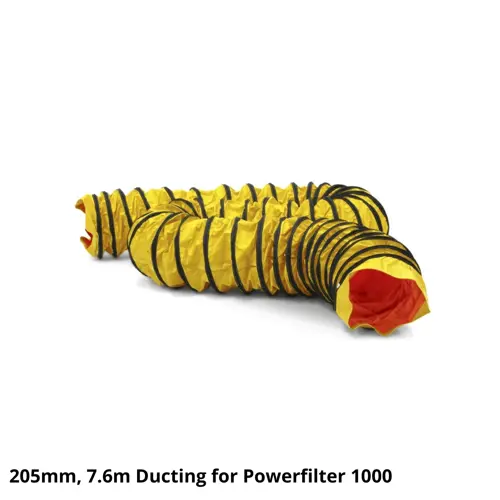

1 x 205mm, 7.6m Ducting for Powerfilter 1000

1 x Trotec PC220 Particle Counter

1 x Heylo HEYWALL Containment System

1 x Dantherm Solutions Academy 2-Day Water Damage Restoration Course
