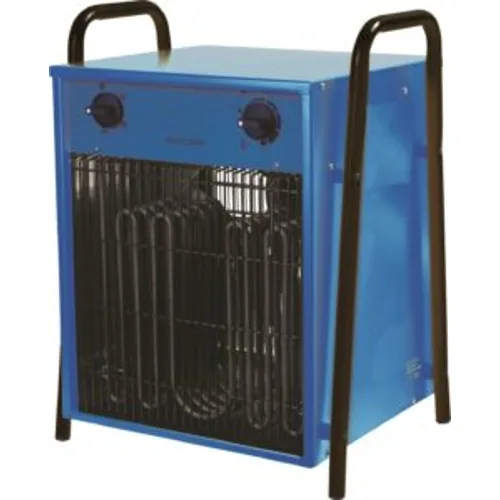

Broughton IFH22 Industrial Electric Fan Heater 22kW

Broughton IFH22 Industrial Electric Fan Heater


Save
£37.00
0/5

  • 22kW Heat Capacity
  • 3 Phase (400v) 50hz 63A Supply
  • Tough Steel Casing With Enamel Finish
  • Made In Britain
  • Integrated Thermostat
  • Mains Cables Available Separately
  • Expected Availability: May / June

  Out of Stock

  2 Year Warranty

£299.00
£262.00

Sorry, This item is currently out of stock

  Sales Team: 0808 196 9381

Call FREE: Mobiles & Landlines

  • 100% Clean Warm Air: Can be used in enclosed and confined spaces. It produces no fumes and does not consume oxygen within the space. Provides a safe alternative to gas and diesel heaters.

    22kW Heat Capacity: Excellent heating capability from such a compact unit.

    2867 m³/hr Airflow: Ideal for heating industrial areas up to around 120m2.

    Two Heat Settings: Operates either at full capacity (22kW) or half capacity (11kW).

    Fan Only Mode: Fan can be operated without heat to provide ventilation.

    Tough & Durable Construction: Robust steel casing with enamel finish.

    Integrated Thermostat: Allows you to select a required temperature. The heater will switch itself on and off as required to maintain the set temperature.

    Over Temperature Protection: A safety fail-safe feature that automatically shuts the heater down if it overheats.

    Portable Design: Compact size with convenient carry handles mounted at the sides. Makes the heater easy to transport and move around a site.

    5 Pin 63A Appliance Inlet: Powered by 400v (3 phase) power supply. 2m power cable available as optional accessory.

    Fully Serviceable Equipment: Easy to maintain and repair when required to provide years of reliable service.

  • Broughton IFH22 Industrial Electric Heater

    High performance 22kW three-phase electric fan heater

    The Broughton IFH22 is a 22kW three-phase industrial electric fan heater that is built for use in industrial spaces such as workshops, warehouses, factories and other areas thanks to an airflow rate of 2867 m3/h that quickly heats spaces up to 180m2.

    The Broughton IFH22 produces only clean, safe and fume-free warm air. There are no fumes produced and there is no oxygen depletion within the space, so this heater can be used in enclosed, poorly ventilated areas where direct oil and gas heaters would not be suitable.

    The IFH22 electric fan heater features a durable heating element and a rugged outer steel casing with an enamel finish. This heater has an adjustable heating setting that allows it to operate at either 11kW, 22kW or fan-only. The fan only option provides excellent ventilation during warmer months.

    This Broughton IFH22 three-phase electric fan heater is very convenient in size, shape and weight. It comes supplied with a 63A 5 pin appliance inlet. You can add a 2m 63A 400V mains cable to your order as an accessory using the tick box above. Other lengths of power cable are available on request.

  • Power: 22kW
    Supply: 400v 3 phase 50hz
    Settings: Fan Only / 11kW / 22kW
    IP Rating: IPX4
    Air Output: 2867 m3/hr
    Approx Heating Area: 180m2
    Dimensions: 430 x 430 x 600 mm
    Weight: 19.2kg
    Overtemp protection: Yes
    Thermostat: Fitted As Standard
    Plug Type: 63A 5 pin appliance inlet
    Full product reference: IFH03-220
    Mains Cables Available Separately
    Warranty: 2 Years
