Calorex DH 75AX Dehumidifier 86 Litres
10%
- Removes Up To 86L Per Day
- 230v Power Supply
- Integrated Humidistat
- Stove Enamelled Aluminium Cabinet
- Self Contained & Fully Automatic
- Low Temp Operation & Hot Gas Defrost
- Quiet, 2-Speed Centrifugal Fans
- Ideal For Commercial & Industrial Areas
Status: In-Stock
1 Year Warranty
-
86L/24Hr Water Removal: This high-capacity dehumidifier offers efficient performance, with cooling and compressor operating times based on an internal microprocessor calculation to optimise performance.
Integral Humidistat: Featuring user-friendly remote controls, the humidistat allows you to set the desired humidity level. When the relative humidity in the space varies from the set level, the machine will automatically turn on or shut down.
Drainage Hose Connection: Allows a hose to be connected so that condensate can be drained out of the space through an external wall, meaning there is no tank to empty.
Robust Build: This dehumidifier is built to a high standard, with high quality components and a long-lasting stove enamelled aluminium cabinet, designed to withstand tough environments. Suitable for data centres, warehouses, storage facilities, museums and galleries, offices, archives, sports halls, gyms and more.
Self Contained / Fully Automatic: The Calorex DH 75AX can run continuously and unattended so that it can extract the maximum amount of excess moisture from a room.
Hot Gas Defrost: The DH 75AX has an automatic defrost function built into the system. If the evaporator reaches near freezing temperatures, the defrost function flushes the evaporator with hot gas to melt any formed ice. Once a preset temperature is reached, the dehumidifier resumes regular operation.
Low Noise: The quiet centrifugal fans with two speeds operate at just 53dB, which is the same volume as a normal conversation - perfect for public spaces.
Optional Accessories Available: You can buy a remote humidistat, which can be wired to the dehumidifier with up to 100m of cable (1mm SQ cable), and allows control of the set humidity level away from the unit. There is a floor stand, which allows the dehumidifier to be placed on the floor and against a wall, instead of being mounted. We also have a low pressure hot water (LPHW) option for the DH75AX model. The LPHW option (low pressure hot water) is an 8.9kW heating coil which can be added inside the unit. It works the same as a radiator in your house - so it needs to be plumbed into a boiler system. It provides a source of heat which warms the air, allowing it to absorb more moisture that the dehumidifier can extract, and it provides a heat source for occupants within the space.
-

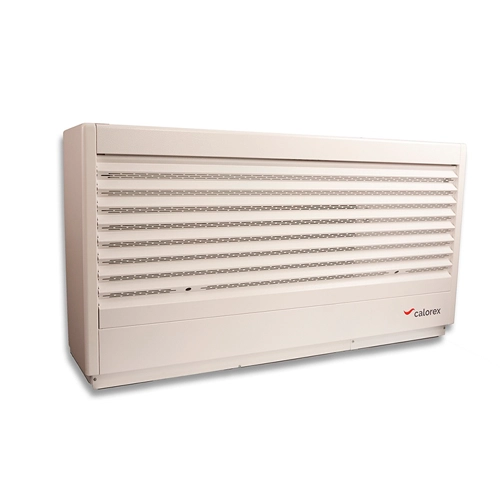

Calorex DH 75AX Dehumidifier
Floor standing high capacity 86L dehumidifier
The Calorex DH 75AX is a high-capacity dehumidifier that can remove up to 86-litres of water within 24 hours. It is a self-contained, fully automatic unit with an integrated humidistat and a 15mm condensate outlet for permanent drainage. The Calorex DH 75AX is a floor-standing dehumidifier, perfect for humidity control in data centres, warehouses, museums, galleries, offices, archives, sports halls, gyms, and more.
This commercial dehumidifier has a low temperature operating range of 5-35°C, and a hot gas defrost function. It works well all year round - effective in unheated areas and during colder weather. The Calorex DH 75AX also recovers heat to the air when running, helping to raise the ambient temperature for the comfort of occupants and dehumidification efficiency while reducing other heating costs.

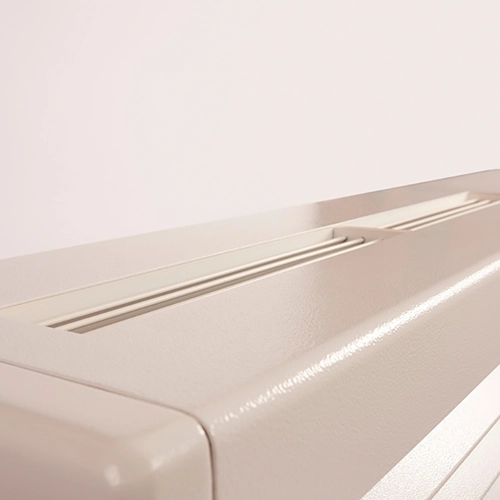

The Calorex DH 75AX dehumidifier is a robust and durable unit. It has a polyester-coated evaporator and condenser, and a stove-enamelled aluminium cabinet that offers resilience in demanding areas and ensures reliability in performance. The Calorex DH 75AX floor-standing dehumidifier is versatile and practical, with a range of excellent additional options available, such as a remote humidistat for control away from the unit, and an 8.9kW low-pressure hot water coil for extra heating power.
-
Operating temperature range (°C): 5-35
Dehumidification @ 30°C/60% RH (l/24h): 86
Heat recovered to air @ 30°C/60% RH (kW): 4.0
Air flow (m3/h): 1180
External static pressure (Pa): 0
Sound pressure level @ 3m: 53dB(A)
Refrigerant: R407c
Power supply (V/ph/Hz): 230/1ph/50
Nominal power consumption (kW): 1.5
FLA (A): 9.5
Maximum supply fuse (A): 13
LRA (compressor start): 55
Heater type: Optional LPHW
Heat output @ 80°C flow (kW): 8.9
Flow rate (l/min): 9.6
Product size (w x d x h): 1520 x 385 x 796mm
Weight (kg): 143
Condensate drain size (brass compression): 15mm
