Calorex DH 150 Industrial Dehumidifier 150 Litres

  Status: In-Stock

  1 Year Warranty

  • Removes Up To 150L Per Day
  • 230v Or 3 Phase Available
  • Integrated Humidistat
  • Polyester Coated Evaporator & Condenser
  • Plastisol Coated Galvanised Steel Cabinet
  • Self Contained & Fully Automatic
  • Automatic Constant Fan Flow
  • Low Temp Operation & Hot Gas Defrost
£6,904.00 £5,968.20
Sales Team: 0808 196 9381

Call FREE: Mobiles & Landlines

Description

Calorex DH 150 Industrial Dehumidifier

Floor-standing & ductable, high-capacity dehumidifier

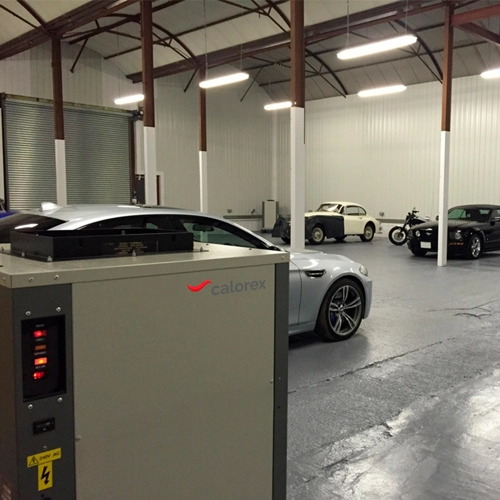

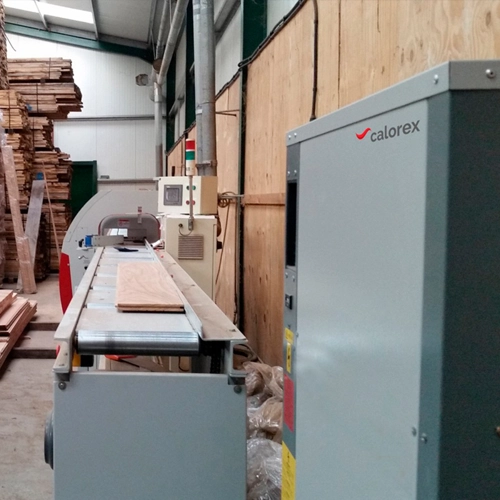

The Calorex DH 150 is a high-capacity dehumidifier that can remove up to 150-litres of water from a space within 24 hours. It is a versatile and hard-wearing machine that is ideal for large commercial and industrial areas, such as garages, electrical sub-stations, museums, archives, data centres, warehouses and factories. In these areas, manufacturing processes can create a lot of excess moisture, leading to uncomfortable environments. High relative humidity can also damage stored goods and cause other moisture-related problems. The Calorex DH 150 works to control humidity effectively, to the benefit of the industry, employees, and visitors.

There are 2 models of the Calorex DH 150 available. The DH 150AX is a 230v refrigerant dehumidifier, while the DH150BX is a 3 phase unit. The 150AX is powered by a standard electricity supply, like what you have at home. The 150BX is a 400v requires a 3 phase supply for a consistent feed of power - this is more suited to larger industrial sites, such as warehouses. Both models are robust enough to cope with the demands of challenging areas, and they are constructed with polyester coated evaporators and condensers, housed within a plastisol coated galvanised steel cabinet.

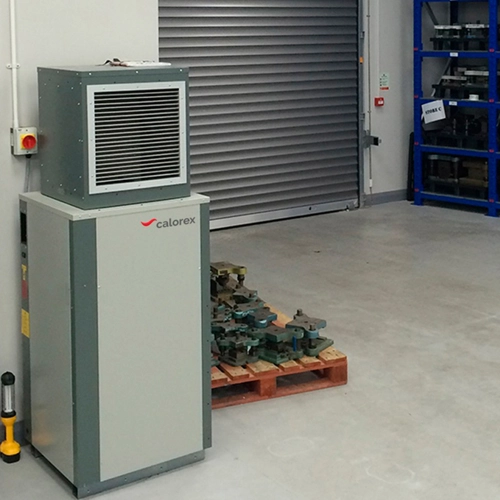

The Calorex DH 150 is a fully automated and self-contained industrial dehumidifier with an integrated humidistat, hot gas defrost function, and a ¾ BSPM condensate outlet for permanent drainage. It is a versatile unit, with a wide operating temperature range and an ergonomic design for convenient installation. This large floor standing dehumidifier features a constant flow fan that automatically adjusts to the best setting when extras are used.You can use the dehumidifier with a variety of accessories, such as ducting and an integrated heater option.

Please Note: This high capacity dehumidifier is made to order in the UK - there is a lead time of 6-8 weeks.

Specification

DH 150AX (230v)
Operating temperature range: 0-35
Dehumidification @ 30°C/60% RH: 150L/24h
Heat recovered to air @ 30°C/60% RH: 7.4kW
Air flow: 2500m3/h
External static pressure: 0-200Pa
Sound pressure level @ 3m: 58dB(A)
Refrigerant: R407c
Power supply: 230/ph/50V/Hz
Nominal power consumption: 2.5kW
FLA: 21A
Maximum supply fuse: 30A
LRA (compressor start): 61A
LRA (compressor soft-start): 28A
Heater type: Optional top box electric
Heat output: 9kW
FLA (heater): 36A
Maximum fuse size: 50A
Product size (w x d x h): 660 x 660 x 1313
Weight: 130/130kg
Condensate drain size (flexible plastic hose): ¾ BSPM

DH 150BX (3 Phase)
Operating temperature range: 0-35°C
Dehumidification @ 30°C/60% RH: 150L/24h
Heat recovered to air @ 30°C/60% RH: 7.4kW
Air flow: 2500m3/h
External static pressure: 0-200Pa
Sound pressure level @ 3m: 58dB(A)
Refrigerant: R407c
Power supply: 400/3ph/50V/Hz
Nominal power consumption: 2.5kW
FLA: 11A
Maximum supply fuse: 16A
LRA (compressor start): 30A
LRA (compressor soft-start): 13A
Heater type: Optional top box electric
Heat output: 9kW
FLA (heater): 12A
Maximum fuse size: 16A
Product size (w x d x h): 660 x 660 x 1313mm
Weight: 130kg
Condensate drain size (flexible plastic hose): ¾ BSPM inch
