Calorex DH 300BY Industrial Dehumidifier 300 Litres
- Removes Up To 300L Per Day
- 3 Phase Power Supply
- Integrated Humidistat
- Polyester Coated Evaporator & Condenser
- Plastisol Coated Galvanised Steel Cabinet
- Self Contained & Fully Automatic
- 1½ Inch BSPM Condensate Drain
- Low Temp Operation & Reverse Cycle Defrost
1 Year Warranty
300L/24Hr Water Removal: This high-capacity dehumidifier offers efficient performance, with cooling and compressor operating times based on an internal microprocessor calculation to optimise performance. It is suitable for managing humidity in large industrial spaces, including warehouses, factories, industrial units, electrical sub-stations, food and drink production plants, museums, storage facilities and more.
Self Contained / Fully Automatic: The Calorex DH 300BY can run continuously and unattended so that it can extract the maximum amount of excess moisture from a room.
Integral Humidistat: Featuring user-friendly controls, the humidistat allows you to set the desired humidity level. When the relative humidity in the space varies from the set level, the Calorex DH 300BY will automatically turn on or shut down.
Plastisol Coated Galvanised Steel Cabinet: The Calorex DH 300BY has a tough and robust corrosion-resistant outer casing that provides durability.
Polyester Coated Evaporator & Condenser: The high-quality components ensure effective and reliable moisture extraction plus longevity and reliability.
1½ Inch BSPM Condensate Drain: Allows for a hose to be connected and fed out through a wall for permanent drainage, so there is no tank to empty.
Extremely Low Temperature Operation & Reverse Cycle Defrost: The Calorex DH 300BY dehumidifier can operate effectively at temperatures from -15°C - +35°C, making it incredibly versatile. The reverse cycle defrost automatically melts any ice build-up on the refrigerated coils so that the unit can continue to run seamlessly, and water from the melted ice is drained away with the condensate.
F-Gas Compliant Refrigerant: The Calorex DH 300BY uses the R407a refrigerant, which is efficient, more economically friendly, and meets 2020 EU regulations for safety.
Optional Accessories Available: A range of optional accessories are available for the DH 300BY dehumidifier, including an air filter kit, a condensate pump, external condenser unit and compressor soft start. An air inlet duct kit is available, which allows the dehumidifier to be used with a ducting system, to draw air in over large areas in spaces such as factories, warehouses and food production facilities.
Please Note: The Calorex DH 300BY high-capacity dehumidifier is made to order in the UK - there is a lead time of 6-8 weeks.

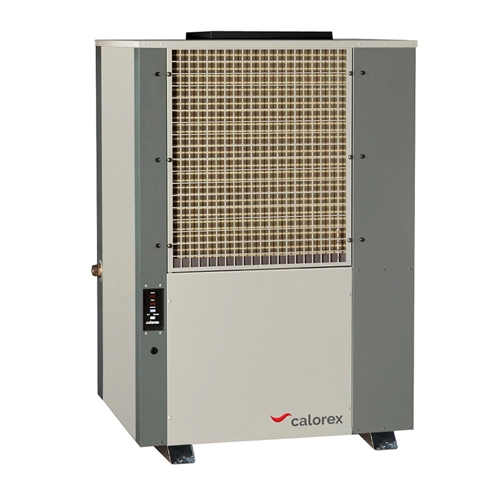

Calorex DH 300BY Dehumidifier
High-capacity industrial dehumidifier
The Calorex DH 300BY is a floor-standing industrial dehumidifier that can remove up to 300-litres of moisture from the air per day. It is ideal for controlling humidity levels in large industrial spaces where manufacturing processes can create a lot of excess water, and high relative humidity can also damage stored goods. The Calorex DH 300BY is suitable for warehouses, factories, industrial units, electrical sub-stations, food and drink production plants, museums, storage facilities, and more. It operates on a 400v 3 phase power supply to run continuously and consistently in large areas.
The Calorex DH 300BY compressor dehumidifier is an entirely self-contained unit with fully automatic operation. It has an operating temperature range of -15°C - +35°C, with a reverse cycle defrost function and an integrated humidistat. As the DH 300BY can run at extremely low temperatures, it is versatile and practical to use all year round. This industrial dehumidifier also has a 1½ inch BSPM condensate outlet that can be connected to a hose for continuous drainage. You can always leave the unit running unattended, and no water tank needs emptying.
The Calorex DH 300BY dehumidifier is a tough and robust unit, designed to withstand the demands of busy industrial environments. It has a plastisol coated galvanised steel cabinet to protect inner components and resist corrosion, and a polyester-coated evaporator and condenser. It features an ergonomic design for convenient installation, and there is a range of optional accessories available, including an air filter kit, a condensate pump, external condenser unit and compressor soft start. An air inlet duct kit is available, which allows the dehumidifier to be used with a ducting system, to draw air in over large areas.
Please Note: This high capacity dehumidifier is made to order in the UK - there is a lead time of 6-8 weeks.
Calorex DH 300BY Dehumidifier Specifications
Capacity (30°C/60% RH): 300L/24h
Air flow: 5000 m3h
Operating temperature range: -15°C - +35°C
Heat recovered to air @ 30°C/60% RH: 14.7kW
External static pressure: 60Pa
Sound pressure level @ 3m: 66dB(A)
Power supply: 400v/3ph/50Hz
Nominal power consumption: 6.7kW
Maximum supply fuse: 24A
LRA (compressor start): 101A
LRA (compressor soft-start): 34A
Product size (w x d x h): 980 x 826 x 1475 mm
Condensate drain size (flexible plastic hose): 1½ Inch BSPM
