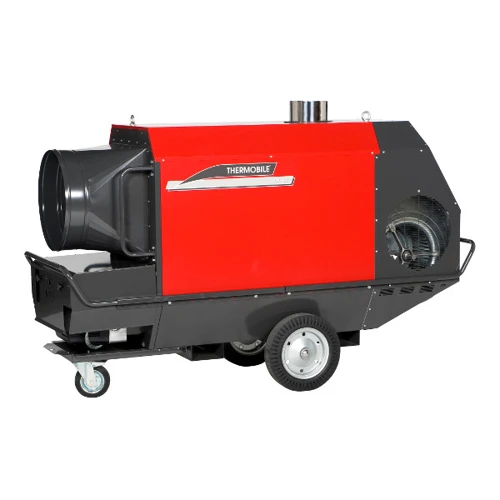

Thermobile IMA 65 EC Indirect Oil Fired Space Heater 65kW

Save
33%

0/5

65kW Heating Capacity
Clean, Dry, Fume-Free Warm Air
Ducting Connection
Tigerloop Included As Standard
240v Power Supply
Designed For Use With External Fuel Tank
Ideal For Construction, Warehouses, Factories & More

Status: In-Stock

2 Year Warranty

65kW Heat Capacity: Great capacity to heat large areas on construction sites, as well as workshops, warehouses, agricultural buildings, large marquees, events & more.

Clean, Dry, Fume-Free Warm Air: The Thermobile IMA 65 is an indirect space heater, so it produces only clean, dry, fume-free warm air. This makes it ideal for heating enclosed, poorly-ventilated spaces safely.

500mm Air Outlet Cone: Allows ducting to be attached to the heater, so that the warm air can be vented into the space that you want to heat.

180mm Flue Connection: Allows sections of flue pipe to be fixed to the heater so that fumes can be exhausted safely away from the space.

Portable Design: Lifting eyes, large wheels and a handle make the heater very portable. It is easy to transport, position and re-position when required on site.

Thermostat Connection: An optional heavy duty thermostat can be connected to the Thermobile IMA 65 heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.

Tigerloop Included: This heater features no internal fuel tank. It is designed to be connected to an external fuel tank of your choice. The included tigerloop removes any air from the fuel as it enters the heater.

Fan Only Switch: Allows the fan to operate without heat in order to ventilate areas when required.
Thermobile IMA 65 EC Indirect Fired Space Heater

Large portable diesel space heater for challenging industrial environments

The Thermobile IMA 65 is a large industrial oil fired space heater, designed for heating areas on construction sites, as well as warehouses, factories, agricultural buildings, large marquees & events and more. As it is an indirect fired heater, it throws out only clean-fume free warm air, while fumes are exhausted out of the top of the unit. Lengths of ducting can be fixed to this heater in order to vent the warm air over long distances and into specific spaces, making it safe to heat confined spaces on site with little ventilation.

This high quality diesel space heater is designed for industrial use. It offers large volumes of clean warm air, an air outlet temperature circa 40-60°C, and it has a high efficiency heat exchanger offering 92% efficiency.

The combustion chamber is heat resistant up to 850°C and it features a tigerloop as standard - a fuel filter with condensate separator - as well as an energy efficient 2-stage adjustable high-pressure ventilator. The Thermobile IMA 65 EC space heater also has a thermostat connection point, which offers the capability to automatically switch the heater on and off as required in order to maintain a set temperature, saving on fuel and running costs, and adding convenience. The fan on this space heater stops at temperatures below 40 °C, to prevent it from circulating cold air when starting up. A ventilation only switch on the unit allows the unit to circulate air on site, for ventilation on warmer days.

Despite its industrial heating capabilities, the Thermobile IMA 65 EC indirect heater is also a convenient size. Its portable design, with lifting eyes, large wheels and a handle, make it easy to move around a site and put into position.

Please note: This heater features no internal fuel tank. An external fuel tank is required.
Technical Information

Heat output (Btu/hr): 222,000
Heat output (kW): 65
Fuel consumption oil max. (l/hr): 6.5
Heated air flow (m3 /hr):4400
Outlet Cone: 500mm
Flue Connection: 180mm
