Master BV 77 Indirect Oil Fired Space Heater 21kW
- 21kW Heating Capacity
- 230v Or Dual Voltage (110v/230v)
- Clean, Fume-Free, Warm Air
- Can Be Used With Ducting
- Overheat Thermostat
- Diagnostic LED
- Optional Room Thermostat
- Ideal For Commercial & Industrial Applications
3 Year Warranty
21kW Max Heating Capacity: The Master BV 77 Indirect Oil Fired Space Heater can deliver 21kW of heat to warm up large areas quickly and efficiently.
230v Or Dual Voltage (110v/230v) Power Supply Available: This space heater is available in 2 different models - a 230v unit for use with standard 220-240v power supplies, like a standard domestic plug socket, and a dual voltage unit that can be used with both 110-120v and 220-240v supplies, ideal for constructions sites and event spaces.
Supplies Clean Warm Air: The Master BV 77 provides a large volume of 100% clean, dry and fume free warm air. It is safe and suitable for safe for enclosed, poorly ventilated areas, like marquees, tents, halls, and more.
Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.

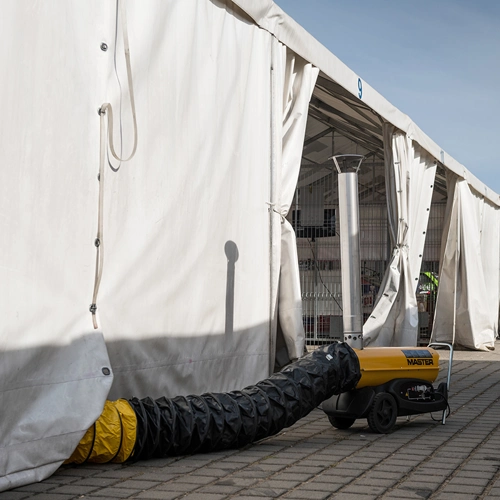

Ducting Connection: Lengths of ducting can be attached to this heater to direct the clean warm air into the space that you need to heat. The ducting directs just the clean air into an area, while the combustion fumes are expelled outside safely via the flue exhaust.
Thermostat Connectivity: An optional thermostat can be connected to the heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required to maintain the set temperature, saving on fuel consumption.
Overheat Thermostat: Shuts down the heater automatically if it overheats, to prevent accidents.
High Quality Features: Thermally protected motor, three oil filters (oil pump filter, suction filter and inlet filter), electronic flame control with photocell, stainless steel combustion chamber, oil tank with level indicator and diagnostic LED help to ensure reliable, effective and safe performance.
Tough & Robust Heater: The Master BV 77 is built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more. It has a stainless steel combustion chamber, a steel frame with metric bolts, and a heat exchanger made from stainless steel pipes.
Portable Design: The heater is mounted on a wheeled trolley so you can move it around easily. It also has forklift slots and a hook for crane hanging, allowing you to lift the heater on and off transport.
Master BV 77 Indirect Oil Fired Space Heater
Portable climate control solution for providing fume-free, warm air

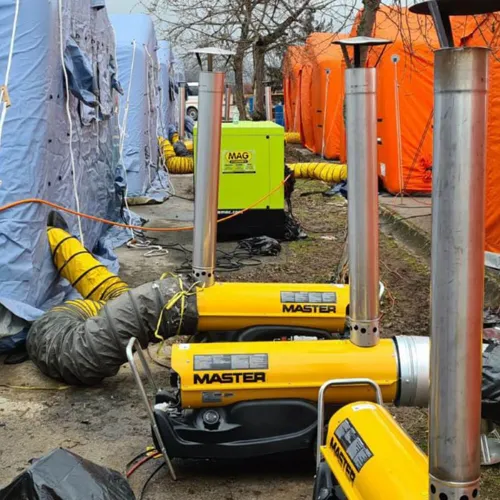

The Master BV 77 Indirect Oil Fired Space Heater provides a 21kW of heat output, high volumes of clean, warm air to heat a range of different spaces. It is ideal for heating events, marquees, halls, warehouses, factories, stockrooms, farmhouses, and other areas where ventilation is limited. As the BV 77 supplies clean, dry heat, it is safe to use in populated areas, keeping staff, customers, and visitors warm and comfortable.
This space heater is built to last and to offer excellent performance in demanding conditions. It has a robust stainless steel combustion chamber, heavy-duty metal outer casing, thermally protected motor, and an overheat thermostat. The BV 77 also has an external pump and accessible components for easy maintenance. Diagnostic LEDs make it easy to recognise problems and faults before they create an issue.

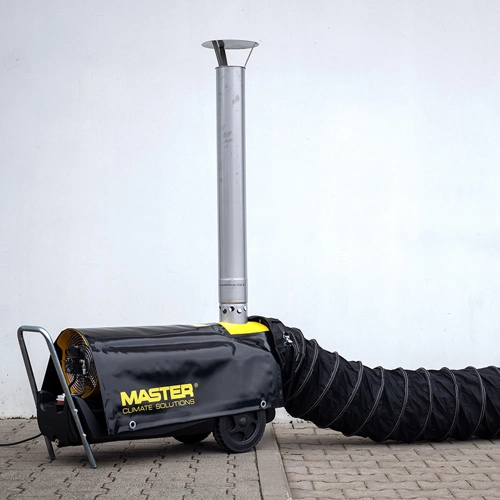

The Master BV 77 indirect space heater is versatile and portable, and ideal for commercial and industrial climate control. It can be used with 3m or 7.6m ducting and set up outside the space that you want to heat, with the clean, warm air directed into the space, and fumes produced during combustion are exhausted away safely via a flue. An optional room thermostat allows for remote control over the climate. The Master BV 77 is mounted on a robust trolley frame, with a large handlebar, so it is easy to move around sites and does not require any heavy lifting.
Master BV 77 Indirect Oil Fired Space Heater Specs:
Heating Power: 21kW / 71,700 Btu/h / 18,100 kcal/h
Airflow: 1550 m³/h
Fuel Tank Capacity: 36L
Fuel Consumption: 2 l/h
Fuel Autonomy: 19h
Thermostat Control: Analogue or Digital
Power Supply: 220-240/1ph/50 V/Hz
Electric Power: 0.3 kW
Rated Current: 1.5 A
Flue Tube: 120 Ø mm
Flue Tube: 23 Ø cm
Product size (l x w x h): 1130 x 380 x 660 mm
Dual Voltage: Available
