150kW Max Heating Capacity: The Master BV 500CR Indirect Oil Fired Space Heater can deliver 150kW of heat to warm up large areas quickly and efficiently.
High Pressure Fan: Capable of pushing clean air over long distances, with an air pressure rating of up to 770Pa and an airflow rate of 5000m³/h.
Supplies Clean Warm Air: The Master BV 500CR provides a large volume of 100% clean, dry and fume free warm air. It is safe and suitable for safe for enclosed, poorly ventilated areas, like marquees, tents, halls, and more.
Separate Riello Burner With Easy Change Nozzle: For best possible efficiency, performance, and safety.
Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.
Summer/Winter Switch: This allows the fan to be used without the heating element, to provide ventilation during warmer months.
Ducting Connection: Lengths of ducting can be attached to this heater to direct the clean warm air into the space that you need to heat. Optional ducting adaptors are available with 1 or 2 outlets, allowing separate lengths of ducting to be used to direct air to different areas. Ducting makes it possible to heat a range of large and enclosed areas safely and evenly, and heat different rooms at the same time.
Thermostat Connectivity: An optional thermostat can be connected to the heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required to maintain the set temperature, saving on fuel consumption.
Tough & Robust Heater: The Master BV 500CR is built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more. It has a stainless steel combustion chamber, a steel frame with metric bolts, and a heat exchanger made from stainless steel pipes.
Portable Design: The heater is mounted on a wheeled trolley so you can move it around easily. It also has forklift slots and a hook for crane hanging, allowing you to lift the heater on and off transport.

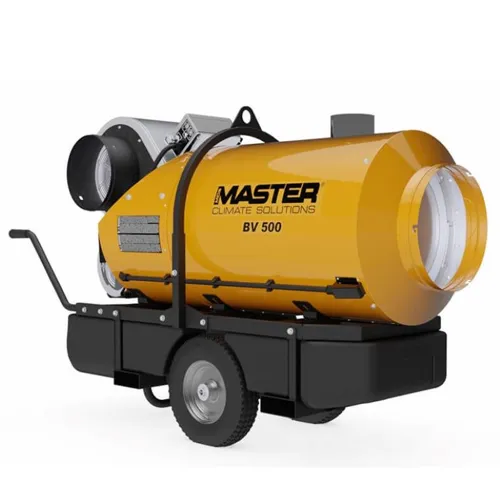

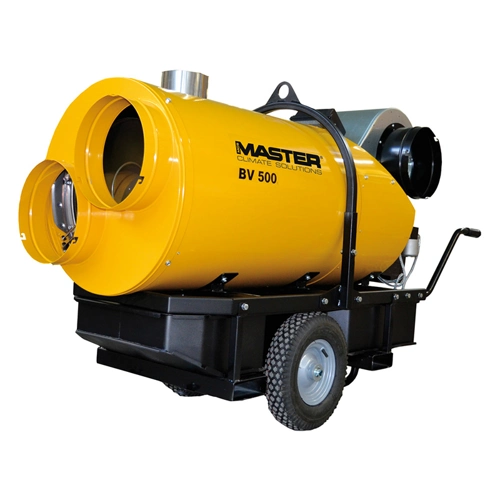

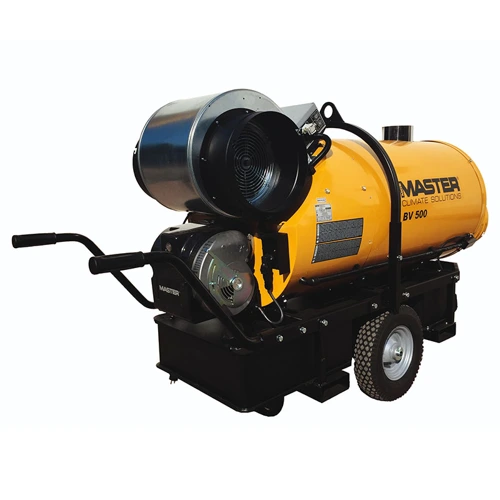

Master BV 500CR Indirect Oil Fired Space Heater
Ductable 150kW heater for versatile climate control
The Master BV 500CR is a powerful space heater that can quickly and efficiently warm up various spaces, such as construction sites, workshops, warehouses, marquees, event tents, exhibitions, and more. It has a heating capacity of 150kW and an airflow of 5000 m³/h, allowing it to supply safe, clean heat for large, enclosed areas. The Master BV 500CR indirect heater is suitable for commercial, industrial, military, emergency, and agricultural applications, and more. It is a versatile unit that can be used with 1 or 2 lengths of ducting for even heating or venting air into separate spaces at the same time.
This space heater uses a separate Riello burner designed to ensure the best possible efficiency, performance, and safe operation. The burner and the fan motor have very low noise production, allowing the heater to run a lot quieter than similar models. All of the other components, such as the centrifugal fan, quick connectors, heater exchanger, are the highest quality to ensure a long lasting service. The stainless steel combustion chamber and robust outer shell make the BV 500CR an incredibly resilient piece of equipment that can withstand the challenges of the working conditions.
The Master BV 500CR indirect heater is equipped with air pressure and temperature sensors that automatically adjust the airflow output. There is a socket for easy connection to a remote room thermostat, so you can set the ideal working temperatures. The control panel and electrical circuit are simple and have an ingress protection level of IP67, which is resistant to water and dust in adverse conditions. Although the BV 500CR filters fuel from the 150 litre integrated tank, there is an easy connection to use an external tank. The heater is also mounted on a robust trolley with large, pneumatic wheels and forklift slots, making it portable and easy to move.
Master BV 500CR Heater Specifications:
Heating Power: 150 kW / 512,000 Btu/h / 129,000 kcal/h
Airflow: 5000 m³/h
Total Air Pressure: 770 Pa
Fan: 1 x Centrifugal
Motor Power Fan: 2000/1600 W/rpm
Ductability: : 50m
Air Outlet Diameter: 1 x 41cm or 2 x 31cm
Summer Ventilation: Yes
Remote Thermostat: Analogue or Digital
Flue Tube: 150 mm
Electronic Box Protection: IP44
Fuel Tank Capacity: 150L
Max Fuel Consumption: 14.31 l/h
Standard Fuel Consumption: 12.19 l/h
Rated Current: 14 A
Power Supply: 220-240/1ph/50 V/Hz
Product Size: 2086 x 717 x 1233 mm
