Trotec TTK Qube Condensation Dehumidifier

  • Extracts Up To 20L/Day
  • 0.37kW Rotation Compressor
  • Ultra-Compact Construction
  • Integrated Condensate Pump
  • Multiple Operating Functions
  • Removable Intake Air Filter



Call for Price

Sales Team: 0808 196 9381

Call FREE: Mobiles & Landlines

Description

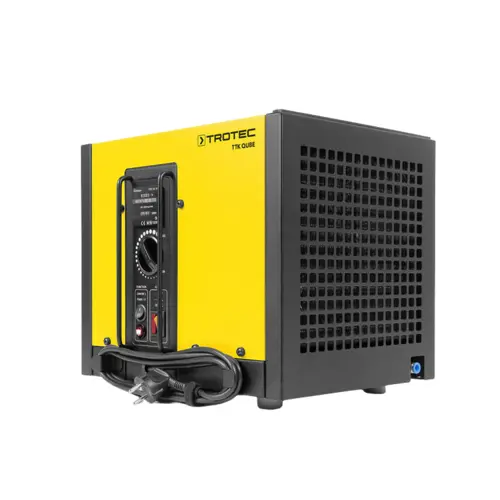

Trotec TTK QUBE Compact Commercial Dehumidifier

Small but mighty "power cube"

The Trotec TTK QUBE combines professional condenser dehumidification with a powerful 0.37kw rotation compressor in an ultra-compact “power cube” design. Weighing only 16kg, this small but mighty living space dryer is designed to be carried with ease.

Produced to a premium finish, this EU-manufactured drying device boasts an extraction rate of 20 litres per 24 hours, offering an excellent drying solution in the shortest time possible for homes, offices and other commercial spaces suffering from water damage or high humidity.

Maximum performance for minimum cost

This top drying performer is supported by a sophisticated operating panel, permitting control of the entire dehumidification performance—along with operating hours, so you can take easily manage your usage. The inbuilt hygrostat allows you to set a desired humidity level and the Qube will operate to maintain, maximising performance and minimising cost.

The Qube is supported by a comfort function for near-silent dehumidification operation—ideal for overnight use in residential areas. The Qube is suitable for use in unheated rooms thanks to the hot gas defrost function - assisted by the generous 10-meter head delivery to pump condensate away, even to outside of the building if required.

Designed with durability in mind

All electronic components are protected in a special enclosure to prevent damage from dust and damp. Similarly, the control panel is shielded by two sturdy metal bars to prevent the settings or power switch from being knocked accidentally.

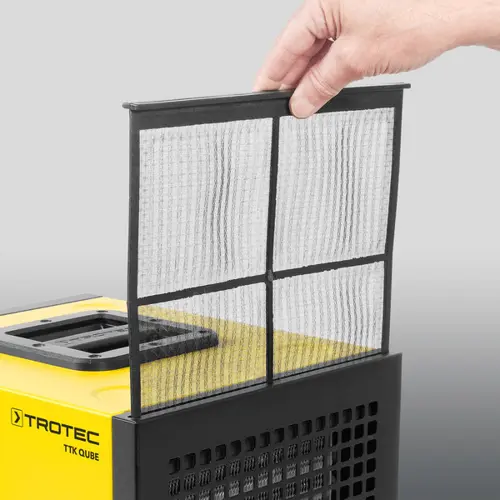

The removable intake air filter prevents damage to internal components ensuring durability whilst helping to capture impurities from the surrounding atmosphere. So, you can expect lighter and brighter air following the removal of litres of trapped water thanks to the TTK Qube!

Specification

Dehumidification performance
Max. [l/24h]: 20
Air flow rate
Level Max. [m³/h]: 283
Recommended room size dry keeping
m³: 110
m²: 45
Ambient conditions
Min. temperature range [°C]: 5
Max. temperature range [°C]: 35
Min. humidity range [% r.F.]: 50
Max. humidity range [% r.F.]: 90
Electrical values
Mains connection: 220 - 240 V/50 Hz
Nominal current consumption [A]: 1.7
Power input [kW]: 0.362
Recommended fusing [A]: 10
Compressor
Rotary piston compressor
Reciprocating piston compressor
Refrigerant: R1234yf
Amount of refrigerant [g]: 140
GWP factor: 4
CO2 equivalent: 0.00056
Pressure suction side [MPa]: 0.3
Pressure outlet side [MPa]: 1.6
Max. permissible pressure [Mpa]: 1.8
Sound values
Distance 1 m [dB(A)]: 53
Functions and features
Comfort mode
Operating control lamp
Automatic switch-off
Operating button for draining residual water

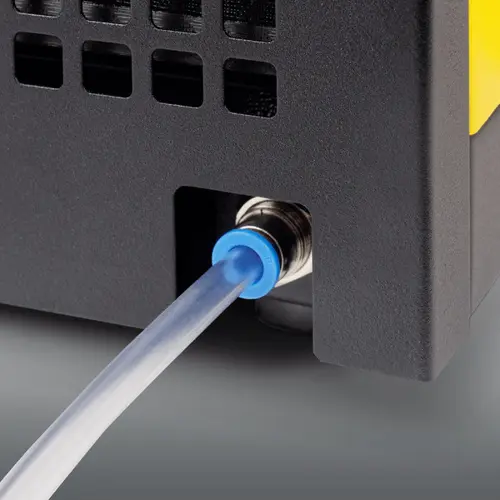

Connection for external condensate drain

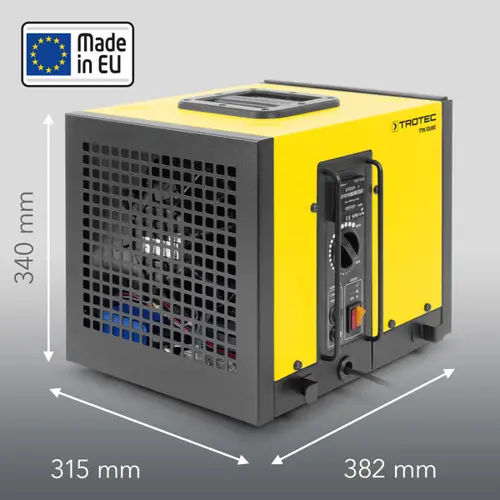

Dimensions
Length (packaging excluded) [mm]: 315
Width (packaging excluded) [mm]: 382
Height (packaging excluded) [mm]: 340
Weight
(packaging excluded) [kg]: 16
