Hyundai DHY80E Three Inch Diesel Water Pump 1000L/Min

  Status: In-Stock

  1 Year Warranty

  • 1,000L Per Minute Flow Rate
  • Runs On Red Diesel
  • Electric Push-Button
  • Total Head Of 25m
  • Suction Head Of 6m
  • 3 Inch Inlet & Outlet
  • 3.6L Fuel Tank
  • 1 Year Warranty
£750.00 £695.99
Sales Team: 0808 196 9381

Call FREE: Mobiles & Landlines

Description

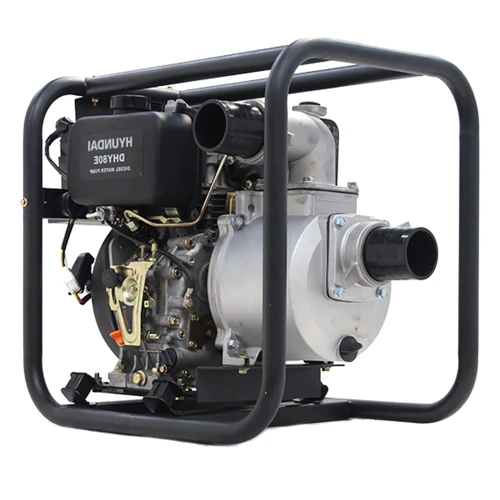

Hyundai DHY80E 3 Inch Water Recirculation Unit

A Powerful Diesel Processing Pump

The Hyundai DHY80E is a highly powerful diesel-powered pump. These devices are well suited for a variety of uses both in domestic and professional settings. Powered by a 296cc 4-stroke, single-cylinder engine, these pumps provide a flow rate of 60,000 litres per hour or 1,000 litres of fluid every minute. These pumps come equipped with an electronic ignition system with easy push-button electric start and a recoil backup.

These pumps come with a maximum suction head lift of 6 metres and a 3-inch (80mm) inlet and outlet as well as a total head lift of the pump is 25m. These pumps can process both clean and dirty water infested with the refuse of up to 9mm. So, pump water filled with gravel or other solids, provided they are within the acceptable diameter. Use these devices as a hot tub pump, or swimming pool pump or to clear garden ponds, puddles or bodies of water built up due to rain.

At just 60kg these pumps are lightweight. Each is easy to move and store. The solid open frame design protects the pump from a variety of sources of damage whilst also making it easier to move the unit. Each pump also has a high capacity 3.6-litre fuel tank which when full allows them to operate for hours. Each comes equipped with aluminium housing with a cast iron impeller for added life span. Each of these units can also be operated using red diesel. Furthermore, unlike electric pumps these devices can be used even in spaces with no access to an electrical mains system.

Specification

Model: DHY80E
Start Method: Recoil/Electric
Pump Type: Aluminium Housing
Water Type: Clean
Fuel Type: Diesel
Fuel Capacity (L): 3.6
Impeller Type: Cast Iron
Drive Type: Direct Drive
Engine Oil: SAE15W40
Engine Oil Capacity (ml): 1.1
Max Flow Rate (L/min): 1000
Max Flow Rate (L/hr): 60000
Inlet (inches/mm): 3/80
Outlet (inches/mm): 3/80
Max Solids (mm): 9
Suction Lift (m): 6
Total Lift (m): 25
Engine Model: D300
Engine Type: Diesel
Engine Size (cc): 296
Maximum Power @ 3000rpm (hp/kw): 5.5/4.0
Maximum Power @ 3600rpm (hp/kw): 6.0/4.4
Net Installed Power @ 3600rpm (hp/kw): 5.5/4.0
Speed (RPM): 3600
Noise Level (db): 105
Gross Weight (kg): 64
Net Weight (kg): 60
Fully Assembled Dimensions (H x W x L) (mm): 575 x 500 x 570
Package Dimensions (H x W x L) (mm): 595 x 520 x 600
Fuel Type / Power Source: Diesel
Product Type: Water Pump
Warranty (years): 1
Model EAN: 719239572836
