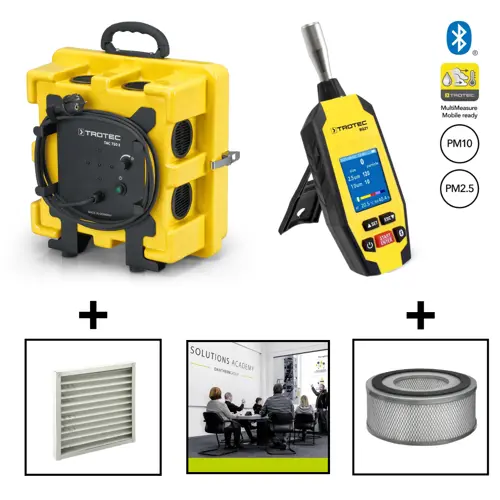

Managing healthy air quality during restoration or renovation work has never been easier. With this premium air quality management starter kit, you can analyse, monitor and manage all room climate parameters during any construction or drying process. Featuring a premium air scrubber and particle measuring device - air purification, filtration, and dust protection is simple, straightforward and professional.
With an official Dantherm Solutions Academy 2-Day Water Damage Restoration Course, this kit is a fantastic package deal—providing everything you may need to efficiently and economically mitigate flood and leak damage in any affected building or structure. The course offers you the opportunity to gain a new skillset in how to professionally restore water damage in buildings with expertise in quality, safety and cost efficiency. Or you can build upon existing skills and knowledge, with the opportunity to claim 6-8 CPD points.
Featuring the highly versatile TAC 750 E Air Scrubber, assisted by a powerful energy-efficient fan and a two-stage filtration system, this air cleaner presents the perfect solution for air cleaning and pollution control in small construction zones and surrounding facilities.
Healthy air quality is achieved by the TAC 750 E Air Scrubber. Assisted by a powerful energy-efficient fan with an infinitely adjustable air volume regulation, the 750 E ensures an energy-efficient performance and an ideal solution for air cleaning and pollution control in small construction zones and surrounding facilities.
Weighing only 6kg, the unit can be transported to any damage site with absolute ease and, due to its plug-and-play design, it can be installed just as quickly.
This fantastic package deal also includes a two-stage HEPA filtration system in conjunction with the TAC 750 E air scrubber. The combination of the G4 pre-filter and H14 HEPA main filter is proven to remove 99.95% of all fine suspended particles, with a permeability of 0.005% from an area of approximately 3m².
This two-stage filtration system offers a powerful solution for efficient dust collection, the extraction of fine spray paint, mists or compressed-air applications.
This amazing deal also includes the AppSensor BQ21 Mini Particle Measuring Device. This electronic measuring device permits quick and precise measurements of all health-related parameters, such as air temperature, humidity levels and dust fractions.
Equipped with a flash memory space for up to 5,000 data sets, this hand-held device is the ultimate air quality indicator, capable of detecting even ultra-fine inhalable dust and alveolar particles.
In combination with the free MultiMeasure Mobile app, all recorded data can be downloaded via Bluetooth connection in seconds. Users can benefit from a range of practical advantages, including manifold analysis and documentation options. You can switch between graph, chart and matrix displays with a single tap—transforming your smartphone into a multifunctional data management system.
| Dust class | as per DIN EN 60335-2-69: H |
|---|---|
| Air flow rate | Max air volume flow[m³/h]: 750 Negative static pressure [Pa]: 720 Recommended amount of air for filter class H [m³/h]: 290 Air volume with filter surface H13 [m²]: 2.15 |
| Electric values | Mains connection: 230 V, 50/60 Hz Power input [kW]: 0.12 Nominal current consumption [A]: 1 Recommended fusing [A]: 6 |
| Electric connection | Connection plug: CEE 7/7, H05RN-F Cable length [m]: 3 |
| Air transport hose connector | Suction side ø [mm]: 200 |
| Sound values | Distance 1 m [dB(A)]: 77 |
| Fan | Radial: Yes Stages: Infinitely variable |
| Coarse dust filter type | combination Coarse dust (≤ 3 ACH): G4 Suitable for rooms sized up to Coarse dust (≤ 3 ACH) [m³]: 250 |
| Fine particulate filter type | combination Fine particulates (≤ 3 ACH): G4 Suitable for rooms sized up to Fine particulates (≤ 3 ACH) [m³]: 250 |
| Hygienic areas filter type | combination Hygienic areas (≥ 15 ACH): G4 + H13 Suitable for rooms sized up to Hygienic areas (≥ 15 ACH) [m³]: 16 |
| Dimensions | (packaging excluded) [mm]: 315 (L) x 430 (W) x 430 (H) |
| Weight | (packaging excluded) [kg]: 6 |
| Mobility | Carry/transport handle(s): Yes Non-marking rubber feet: Yes Stackable: Yes |
| Particle concentration | Number of channels: 2 Channel sizes: 2,5µm, 10 µm Detector type: Light-scattering measurement |
|---|---|
| Particle mass concentration | Particle mass conversion: 2.5 µm, 10 µm Min. measuring range | Particle mass conversion [µg/m³]: 0 Max. measuring range | Particle mass conversion [µg/m³]: 2,000 Resolution | Particle mass conversion [µg/m³]: 1 |
| Air temperature | Min. measuring range | Air temperature [°C]: 0 Max. measuring range | Air temperature [°C]: 32 Accuracy ± 0 °C - 50 °C [°C]: 1 Resolution [°C]: 0.1 |
| Relative humidity | Measuring range | Relative humidity [%]: 0 - 100 Accuracy 0 % - 20 % [%]: 5 Accuracy 20 % - 80 % [%]: 3.5 Accuracy 80 % - 100 % [%] 5 Display resolution [% RH]: 0.1 |
| Display | TFT colour LCD 2.0" 220 x 176 px |
| Memory organisation | Internal flash memory: 5,000 measurements |
| Interfaces | Bluetooth |
| Power supply | Internal battery (Li-ion) |
| Housing design | Plastics |
| Ambient conditions | Operation - min. - max. temperature [°C]: 0 - 40 Operation - max. relative humidity (non-condensing) [%]: 80 Storage - min. - max. temperature [°C]: -10 - 50 Storage - max. relative humidity [%]: 90 |
| Dimensions | (packaging excluded) [mm]: 188 (L) x 35 (W) x 52 (H) |
| Weight | (packaging excluded) [kg]: 0.175 |
| STANDARD SCOPE OF DELIVERY | Measuring device Li-ion battery (integrated) Wire stand Mini USB cable Charger (USB 5 V, 1 A) Getting started guide Battery(ies)Simultaneous measurement PM2.5 and PM10 Bar graph indicator Switching function °C/°F Memory for 5,000 measured values Bluetooth interface Automatic switch-off Time Battery status indication ¼ inch tripod thread Integrated foot |
| Internal sensors | Particle concentration [n/l] Air temperature [°C] Air temperature [°F] 2,000 Relative humidity [%] |
| Air temperature | Simultaneous measurement PM2.5 and PM10 Bar graph indicator Switching function °C/°F Memory for 5,000 measured values Bluetooth interface Automatic switch-off Time Battery status indication ¼ inch tripod thread Integrated foot |

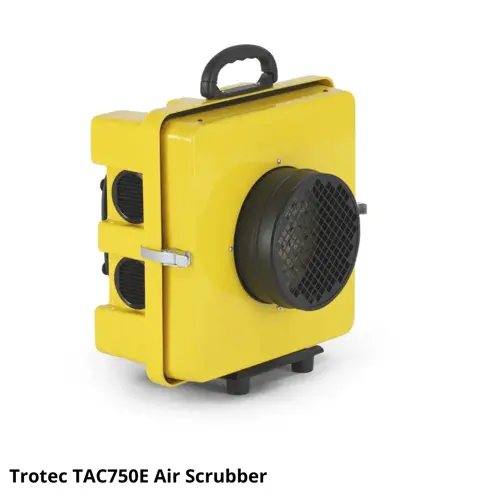

1 x Trotec TAC750E Air Scrubber

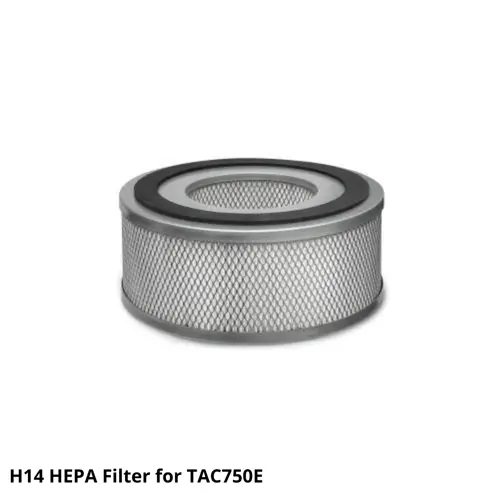

1 x H14 HEPA Filter for TAC750E

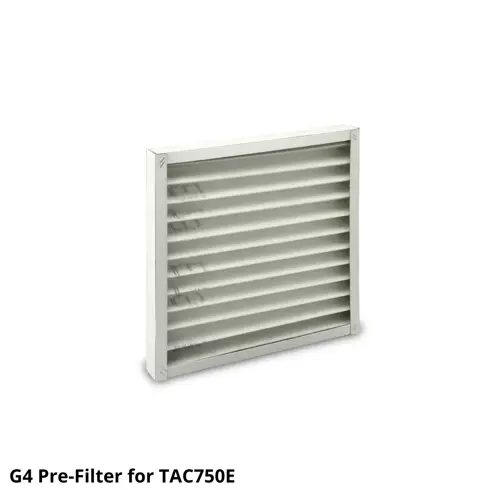

1 x G4 Pre-Filter for TAC750E

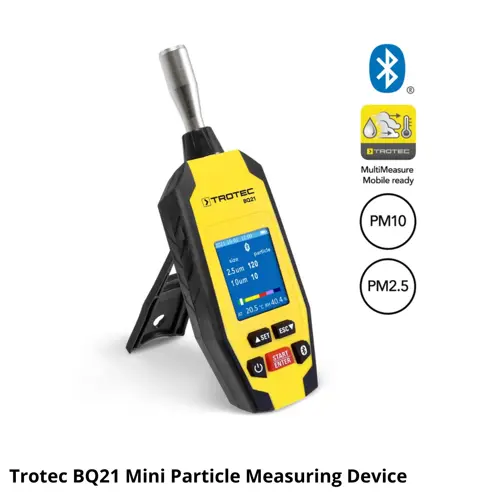

1 x Trotec BQ21 Mini Particle Measuring Device
1 x Dantherm Solutions Academy 2-Day Water Damage Restoration Course
