Dantherm Professional Water Damage Restorers - Basic Insulation Drying Kit

  Status: In-Stock

  • Premium Drying Package Deal
  • For Up To 70m² of Insulated Screen Floor
  • Ideal For Professional Restorer Technicians
  • Featuring Automatic Drying Systems
  • Professional Thermal Imaging Camera
  • Includes Accredited 2-Day Course
£5,485.00
Sales Team: 0808 196 9381

Call FREE: Mobiles & Landlines

Description

Dantherm Water Damage Restoration – Professional Restorers – Basic Insulation Drying Kit (Coverage up to 70m² of insulated screen floor)

The Drying System For Experts

It is crucial to deal with water damage in buildings as soon as the problem arises. The common causes include flooding, burst pipes and firefighting water. If left untreated, water damage can lead to free water and wet insulation, even to trapped water below the pavement.

This professional restorers kit is complete with the optimal equipment for water damage restoration and basic insulation drying, such as walls, ceilings and insulated screed floors up to 70m², following an escape of water.

Featuring the world’s first integral drying solution, a manifold modular drying system, a professional compact condenser dryer, an advanced thermal imaging camera, plus two connection hoses and a range of fantastic accessories, this premium package offers an exceptional deal not to be missed!

Plus, an official Dantherm Solutions Academy 2-Day Water Damage Restoration Course is included for free with the kit, from which you can develop your skillset and refine your expertise by learning from the best on safe, efficient and economical building drying with the opportunity to claim 6-8 CPD points.

AERCUBE® Manifold System

The AERCUBE® Manifold System applies highly advanced drying technology in a flexible modular structure. Featuring the VT 2 Water Separator equipped with a special dirty water pump, the two-stage HEPA Filtration System HF 2, the brushless multi-stage VP 6 Noise Box with Turbine and the SD 2 Sound Silencer, this premium drying system boasts exceptional energy-efficiency, versatility and sustainability. You can stack, store or transport the AERCUBE® system without the risk of tipping. The rounded edges and corners maximise comfort whilst lifting and carrying the units, as well as prevent damage or injury of people and property.

All AERCUBE® modules included in this kit are designed to work in conjunction and seamlessly fit together in a stable tower construction. Each unit may be flexibly interchanged to suit different applications. From the vacuum drying method to the overpressure drying method, the AERCUBE® manifold system provides the right solution for every drying job.

All-In-One Adaptive & Automatic Insulation Dryer

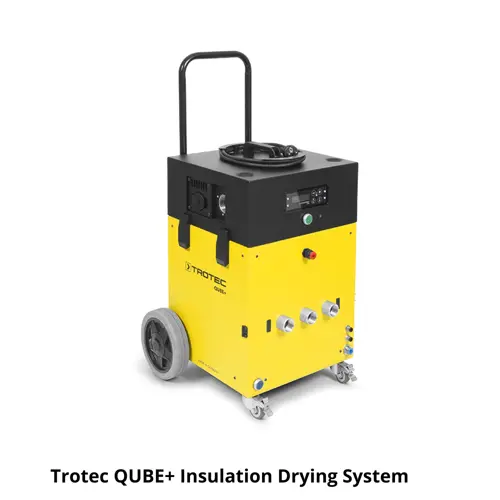

Trotec Qube+ negative pressure insulation drying system

Featuring the exclusive all-in-one pressure dryer, designed for the quick and economical drying of insulated surfaces. Combining a powerful VX-5 turbine insulation dryer, WA-4i water separator, 4-stage HEPA filter system, and NR19 silencer in a compact chassis, the Qube+ insulation dryer is an excellent portable drying solution for any emergency drying task.

Impressing with the HiDry automatic control system, operating the Qube+ is effortless; simply set your preferred power stage from 1-4 and the Qube+ will reliably perform with maximum energy-efficiency.

Ultra-Compact Condenser Dryer

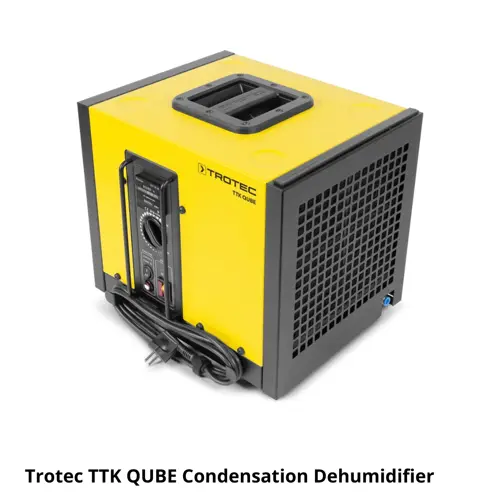

Small but mighty TTK Qube

Alongside the Qube+ insulation dryer, the TTK Qube “power cube” delivers premium drying performance with a powerful 0.37kW rotation compressor, which is capable of high dehumidification with low consumption.

This top drying performer is supported by a sophisticated operating panel, permitting control of the entire dehumidification performance. This includes a comfort function for near-silent dehumidification operation – it is deal for overnight use in residential areas.

Featuring hot gas defrost function, the Qube is suitable for use in unheated rooms, assisted by the generous 10-meter head delivery to pump condensate away, even across to another building if required.

Professional Thermography In An Innovative Handheld Device

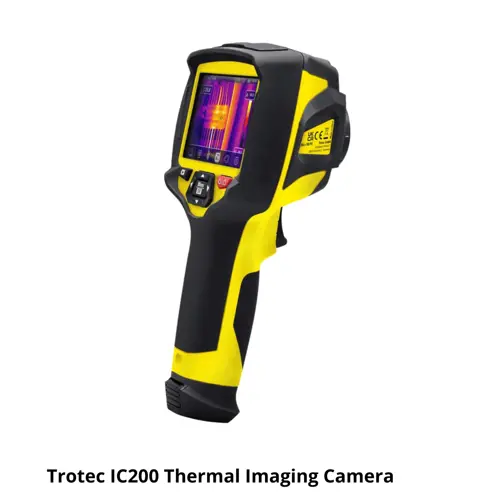

Trotec IC 200 Thermal Imaging Camera

The IC200 is a fully radiometric IR camera equipped with an advanced thermal sensor to continuously detect the smallest temperature changes in real-time, capturing every single image without blurring or omitting any important thermographic information. Weighing only 500g for easily portability, this ingenious camera system accommodates 49,152 independent measuring spots.

The IC200 impresses with flexible functionality, with the 3.5” touchscreen display with infinitely adjustable zoom. Plus, the IR camera boasts a variety of high-end documentation functions including DuoVision technology.

You can configure isotherms, create export reports, carry out point, line and rectangular measurements in the thermogram as well as combining infrared and real imagery live display to create a contour-accentuated thermal image. Each setting and function can be configured at any time whilst the IC200 continues to capture and record.

Specification

Trotec QUBE+ Insulation Dryer Specifications
Suitable for surfaces sized up to [m²]:  25 - 85
Max. low pressure [mbar]:  220
Air volume freely blowing [m³/h]:  250
Volumetric flow rate HiDry (sucking in) [m³/h]:  90 - 180
Max. motor power [kW]:  1.2
Power supply [V/Hz]:  230 / 1 ph / 50
Nominal current consumption [A]:  6.7
Fuse [A]:  16
Collection containter [I]:  10
Sound level @ 3 m [dB(A)]:  48 - 62
Dimensions [mm]:  490 (L) x 500 (W) x 735 (H)
Weight [kg]:  25.2
Hose connections insulation drying [Ømm]:  3 x 38



Aerial AERCUBE Manifold System SpecificationsVT 2 Water Separator Specifications
Pump type Robust sewage pump
Conveyor volume [m³/h]:  7
Max. conveyor height [m]:  5
Tank volume [I]:  20
Operating Temperature Range [°C]:  3 - 38
Power consumption [W]:  260
Power supply [V/Hz]:  230 / 1 ph / 50
Power cord [m]:  4.5 m with plug, heavy-duty version, (H07-cable) with magnet-holder for plug
Protection class IP44
Dimensions [mm]:  507 (H) x 390 (W) x 490 (D)
Weight [kg]:  18
VP 6 Noise Box with Turbine Specifications
Blower type Brushless high-performance turbine blower
Air flow (free blowing) [Speed:m²/m³/h]: 1/15/80 - 2/30/140 - 4/50/190 - 4/70/250
Excess pressurre [mbar]:  270
Low pressure [mbar]:  220
Max. motor power [W]:  1,280
Operating temperature range [°C]:  0 - 38
Power supply [V/Hz]:  230 / 1 ph / 50
Sound level @ 3 m [dB(A)]:  57
Power cord [m]:  4.5 m with plug, heavy-duty version, (H07-cable) with magnet-holder for plug
Protection class IP44
Dimensions [mm]:  507 (H) x 390 (W) x 455 (D)
Weight [kg]:  15
HEPA Filtration System HF 2 Specifications
Inserted air filter Each 1 pc. is included with the delivery: - prefilter G4 - HEPA-Filter H13 acc. EN1822 (Separation MPPS > 99.95%)
Max. air flow [m³/h]:  270
Control/operation LED indicator for filter change and button for battery check
Dimensions [mm]:  260 x 390 x 490
Weight [kg]:  6
SD 2 Sound Silencer Specifications
Max. air flow [m³/h]:  220
Dimensions [mm]  300 (H) x 390 (W) x 490 (D)
Excess pressurre [mbar]:  270
Trotec TTK QUBE Dehumidifier Specifications
Dehumidification performance @ 30°C/ 80% RH [L/24h]:  16
Dehumidification performance max. [L/24h]:  20
Air flow rate [m³/h]:  283
Operating temperature range [°C]:  5 - 35
Operating range humidity max. [% RH]:  90
Power supply [V/Hz]:  220 - 240 / 1 ph / 50
Power input [kW]:  1.6
Nominal current consumption [A]:  1.6
Refrigerant [Type]:  R-1234yf
Quality of coolant [g]:  140
Defrosting Hot gas
Sound level @ 1 m / comfort mode [dB(A)]:  53 / 50
Dimensions [mm]:  315 (L) x 367 (W) x 340 (H)
Weight [kg]:  16
Trotec IC200 Thermal Imaging Camera Specifications
Temperature (°C) Min. measuring range[°C]:  -20
Max. measuring range [°C]:  550
Max. accuracy:  +/-2°C or +/-2% of the current measured value (ambient temperature 10 °C to 35 °C, object temperature >0 °C)
Radiometric image performance Detector type:  Focal Plane Array (FPA), uncooled microbolometer
Thermal sensitivity [30 °C]:  <0.1 °C
Image refresh rate:  25 Hz
Geometric resolution:  3.75 mrad
Standard lens | Radiometric image performance:  56° x 42°
Minimum focal length:  0.5 m
Field of vision (FOV):  56° x 42°  20
Display LCD 3.5"
Touch
Colour
Visual image performance (integrated digital camera) Video norm: HIMI
Standard lens: 65°
Interfaces USB (USB-C)
Composite video (video out)
Mains power 5V DC
Wifi
Power supply Via battery (Li-ion)
via mains power DC 5V
Operating time Up to 4 h
Device control Touch function
Push buttons
Memory organisation Storage medium: Internal 3.4GB (+8GB via microSD)
Radiometric file format: JPEG/HIR
Visual file format: JPEG
Ambient conditions Operation - min. temperature [°C]: -10
Operation - max. temperature [°C]: 50
Storage - min. temperature [°C]: -40
Storage - max. temperature [°C]: 70
Min. humidity [%]: 10
Max. humidity (non-condensing) [%]: 90
Type of protection IP54 IEC 529
Shock 25G IEC 60068-2-29
Vibration 2G IEC 60068-2-6
Housing design [kg]:  16
Dimensions (packaging excluded) [mm]:  96 (L) x 77 (W) x 224 (H)
Weight (packaging excluded) [kg]:  0.5
STANDARD SCOPE OF DELIVERY Thermal imaging camera with standard lens
Protective cap
Temperature test certificate
Standard software package
MicroSD memory card
Internal memory
USB cable
Tripod fixing device
Li-ion battery
Battery charger with charging status indicator
ASCERTAINABLE MEASURED VALUES AND FUNCTIONS
Internal sensors Surface temperature [°C]
Surface temperature [°F]
Functions and features  DuoVision Plus, combined display of IR image and contour representation (real image)
Alarm function (acoustic) when exceeding/falling below freely configurable temperature values
Image display option IR image
Image display option real image
Up to 4 movable measuring spots (3x manual and 1x automatic temperature tracking)
Data transmission via WIFI
Degree of emission adjustable from 0.01 to 1.0
Energy saving mode - user-defined
Freeze function
Isotherm measuring function - between upper and lower limit value
Automatic contrast and brightness setting
Profile analysis
Tripod
Tripod mounting
Battery status indication
Automatic adjustment of temperature range
Automatic measurement correction based on user-defined specifications for ambient temperature, distance, relative humidity
Automatic measurement correction based on user-defined specifications regarding reflected object temperature
Integrated digital camera
Integrated photo lamp
Manual adjustment of brightness and contrast
16x Digital zoom (stepless)
Fixed focus
Mounting via a 1/4 inch - 20 connection
Saving of individual non-radiometric IR images directly on the storage medium
Saving of radiometric videos on the PC via WIFI
Saving of non-radiometric MPEG-4 IR videos directly on storage medium
Saving of fully radiometric JPEGs
Temperature comparison function
Voice recording

What's In The Box

1 x Trotec QUBE+ Negative Pressure Insulation Drying System

1 x AERCUBE Manifold System:

1 x Aerial AERCUBE System – VT2 Water Separator

1 x Aerial AERCUBE System – HF2 HEPA filter

1 x Aerial AERCUBE System – VP6 Turbine

1 x Aerial AERCUBE System – SD2 Sound Absorber

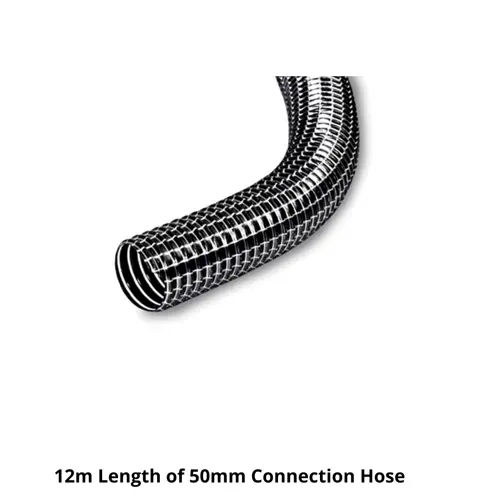

1 x 12m Length of 50mm Connection Hose

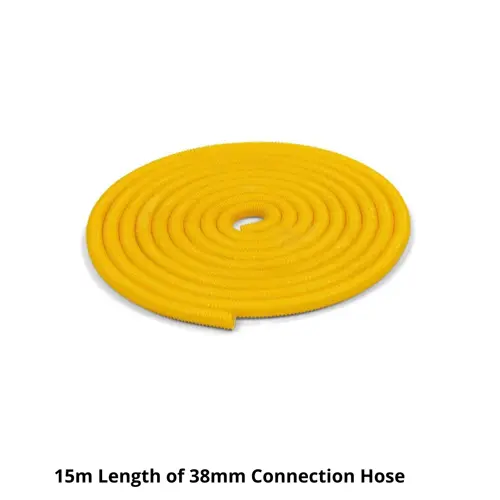

1 x 15m Length of 38mm Connection Hose

1 x Trotec TTK QUBE Condensation Dehumidifier

1 x Trotec IC 200 Thermal Imaging Camera

1 x Dantherm Solutions Academy 2-Day Water Damage Restoration Course
