Our leak detection kit is a professional premium package containing a wide variety of industry-leading sensors and investigatory instruments to enable you to locate the exact source of your leak and subsequently mitigate the issue. So, you can solve your water worries in no time with this Professional Leak Detection Advanced kit.
This fantastic package contains all the necessary instruments for safe and professional leak detection with no specialist training required. The deal also includes an official Dantherm Solutions Academy 2-Day Water Damage Restoration Course is included for free with the kit, from which you can develop your skillset and refine your expertise by learning from the best on safe, efficient and economical building drying with the opportunity to claim 6-8 CPD points.

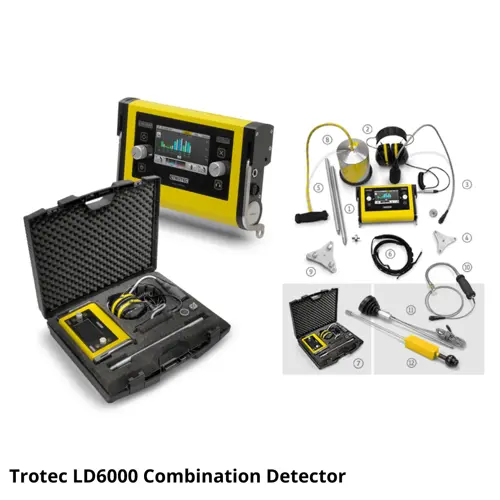

Featuring the LD600 Combination Detector, an industry-leading acoustic pinpoint locator. Developed with highly sensitive microphones, the LD600 is designed to capture the smallest sounds for precise leak detection. The LD6000 is also ideal for carrying out a variety of test methods, such as the tightness of weld-seams, tanks, boilers, pressure lines, trace gas leak detection in drinking water systems plus much more. All measurements can be viewed instantly via the high-resolution colour digital display complete with touchscreen functionality, buttons and rotary controls for ultimate convenience.

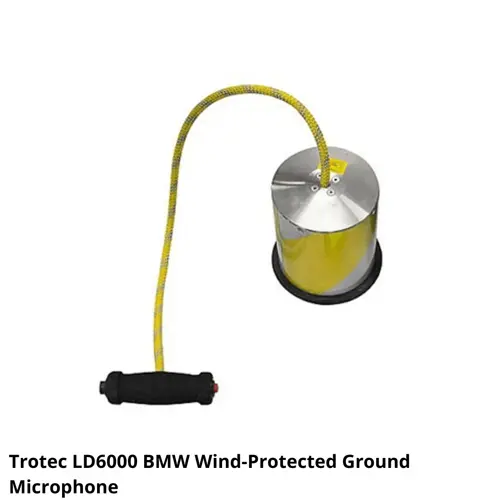

Provided with the LD6000 detector is the LD6000 BMW Wind-Protected Ground Microphone, equipped with a dead man’s switch, for operating compatibility in open and windy environments. Also included is the LD6000 H2 Hand Sensor, measuring 50cm in length, the hand sensor features a flexible swan-neck probe to ensure a high degree of versatility and to facilitate instant access to otherwise inaccessible or hard-to-reach places.
The IC3000 is a fully radiometric IR camera equipped with an advanced thermal sensor to continuously detect the smallest temperature changes in real-time, capturing every single image without blurring or omitting any important thermographic information. Weighing only 500g for easily portability, this ingenious camera system accommodates 110,592 independent measuring spots.

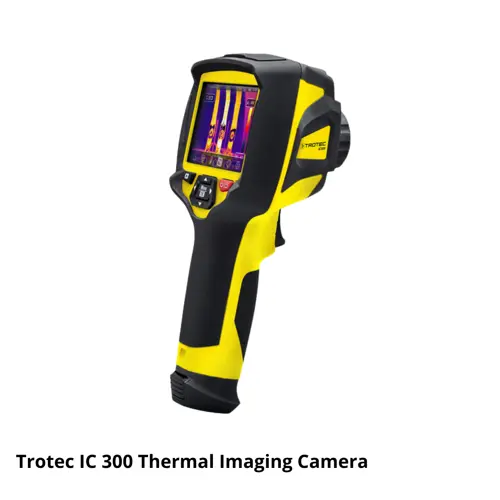

The IC300 impresses with flexible functionality, with the 3.5” touchscreen display with infinitely adjustable zoom. Plus, the IR camera boasts a variety of high-end documentation functions including DuoVision technology. You can configure isotherms, create export reports, carry out point, line and rectangular measurements in the thermogram as well as combining infrared and real imagery live display to create a contour-accentuated thermal image. Each setting and function can be configured at any time whilst the IC300 continues to capture and record.
The combines flexible functionality with a razor-sharp camera system in a compact hand-held unit, providing professional high-resolution visual inspections of poorly accessible areas. For practical, hands-free operation, a screw-on magnetic videoscope holder is supplied, allowing the compact, hand-held device to be easily attached to metal walls, iron girders, switch cabinet doors and other ferromagnetic components for convenient hands-free inspections. The pliant yet robust titanium-alloyed camera head can be infinitely angled in all directions thanks to the insertable joystick control unit, so accessing hard-to-reach components is made simple and effortless, ensuring sharply detailed images and videos for documentation. The oil-resistant IP67 protection rated camera probe features 1m length for maximum flexibility and high torsional strength even when operating in water-logged environments.
Six professional AppSensor devices are included in the kit, designed for connection with the MultiMeasure Mobile app to allow you to log and track moisture deposits, air velocity, relative humidity and more. Measurement data can be analysed, saved and organised in a variety of in-app graphic representations and intelligent image overlays.
These pocket-sized wireless devices are perfect for conducting investigations in hard-to-reach/remote locations. Ready in seconds via Bluetooth connection, these AppSensor devices permit quick and intuitive navigation of real-time data throughout the restoration process—transforming your smartphone into a multifunctional measurement tool. The AppSensor devices are essential to successful water damage restoration, presenting a fantastic deal as part of this kit.

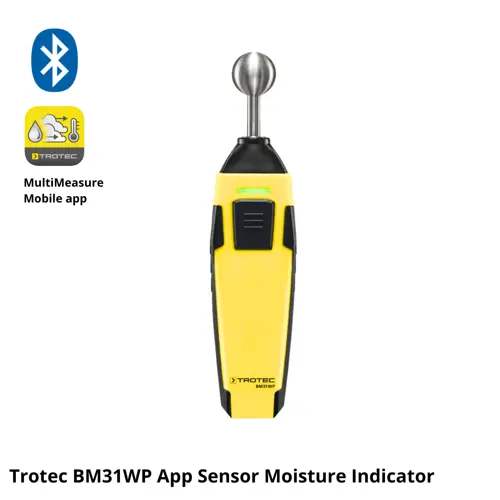

The BM31WP conducts quick and effortless investigations into near-surface moisture distributions in walls, floors or ceilings, with the precise determination of minimum, maximum and average values. Each measurement value can be marked directly within an in-app image on an elaborate graphic representation. The humidity matrix can also be displayed as image overlay, allowing you to visualise the moisture deposits within your surfaces.

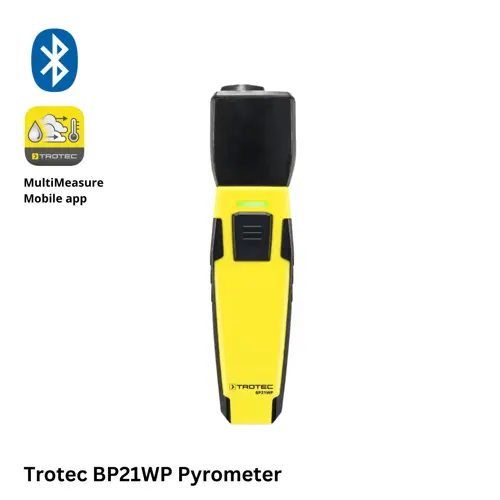

Meanwhile, the BP21WP Pyrometer is designed to conduct non-contact surface temperature measurements from -30°C to +250°C, featuring an intelligent multi-point laser which automatically visualises the size of the measuring spot achieving 10:1 optics. You can compare different values measured for the same object at different points in time directly in the app or use the appSensor in combination with the BC21WP Thermohygrometer for a differentiated dew point control.

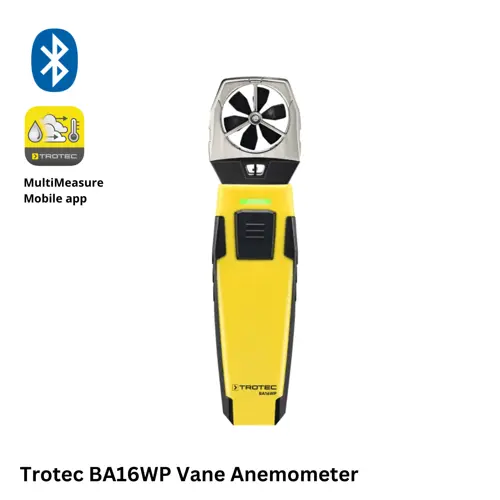

The BA16WP Vane Anemometer permits precise and accurate measurements of air velocity, volumetric flow, air temperature and relative humidity when used in combination with the MultiMeasure Mobile app. The BA16WP features high-quality sensor technology and numerous measuring functions in a robust vane construction for rotational measurement.

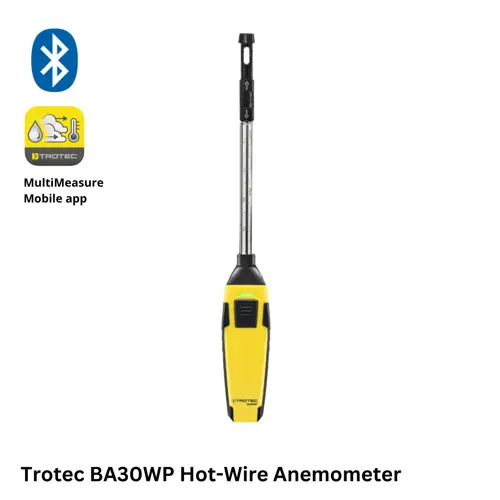

The BA30WP Hot-Wire Anemometer is a versatile thermal sensor device, boasting a range of features including the telescopic probe which can be variably extended and retracted between 170mm and 375mm. Featuring high measurement sensitivity, the BA30WP impresses with precise determination even of low flow rates.

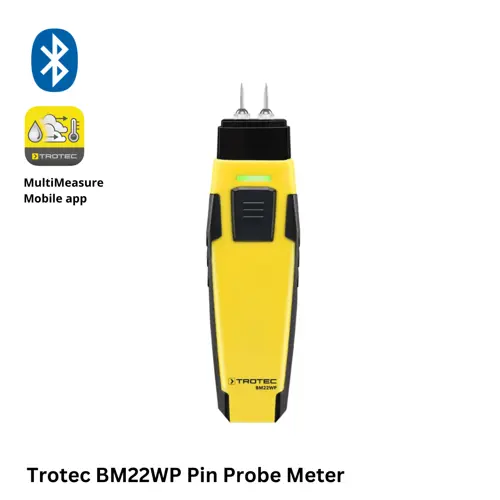

The BM22WP Pin Probe Meter permits quick and precise detection of near-surface moisture in wood including sawn timber or firewood, plus soft building materials such as gypsum, plaster or screed. This professional moisture sensor features easily exchangeable steel insertion measuring pins, which enable a solid connection to the test material and ensures instant measurement results. Plus, the “individual spot measurement with image” function allows you to map out your measured values, with each value pinpointed in the exact measurement location.
| Sound | Min. - Max. measuring range [Hz]: 0 - 4,000 Amplification [dB]: 120 Input impedance [Ω]: 1 m Max. output impedance [Ω]: 10 |
|---|---|
| Display | LCD Touch Colour |
| Memory organisation | Memory: Internal flash memory for up to 20 measurements series and as buffer memory for recording long-term measurements of 5, 15, 30 and 60 min. Storage type: Internal flash memory |
| Interfaces | Bayonet (microphone) Bayonet (sensor) 6.3 mm audio jack (headphones) |
| Device control | Membrane keyboard Control knobs |
| Housing design | Plastic/metal |
| Protection class | IP54 |
| Ambient conditions | Operation - min. - Max. temperature [°C]: -5 - 55 |
| Operating time | Up to 14 hours in continuous operation Up to 40 hours in normal usage |
| Power supply | Battery type: 4 x type LR14 C 1.5 V |
| Dimensions | (packaging excluded) [mm]: 210 (L) x 160 (W) x 60 (H) |
| Weight | (packaging excluded) [kg]: 1.05 |
| Standard scope of delivery | Sound-protected headphones Universal microphone Tripod adapter for universal microphone Palpation probe extension with tip for universal microphone Shoulder strap for measuring device Transport case PC connection cable (special USB solution) Battery(-ies) Operating manual Magnetic adapter for universal microphone Software LD6000 Transfer |
| Functions and features | External sensors: Sound [digits] Acoustic leak detection (audible sound) by use of F + L analysis function Acoustic leak detection (audible sound) by use of smart analysis function Acoustic long-term measuring (audible sound, logging function) Acoustic pipe location via sound ranging Trace gas leak detection Minimum level indication Averaged level Acoustic pulse wave measurement Automatic adjustment of filter frequencies Automatic adjustment of sensor sensitivity Preference memory function for manual filter settings Sound level override protection Trace gas detection with visual signal depending on the concentration Trace gas detection with acoustic signal depending on the concentration Control via touch function Control via keys Control via control dial High-pass filter adjustable Low-pass filter adjustable Up to 256 freely selectable filters |
| Power supply | Via basic device LD6000 |
|---|---|
| Internal sensors | Sound |
| H2gas [ppm] | Min. - Max. measuring range [ppm]: 10 - 20,000 Resolution [ppm]: 1 Response sensitivity [ppm]: 1 Response time: 0.5 s Warm-up time: -45 s |
|---|---|
| Material of sensor element | Stainless steel Other |
| Material of handle | Material: Plastics |
| Interfaces / Plug design | Plug design: SDI connector |
| Surrounding conditions (measuring electronics handle) | Min. - Max. operating temperature [°C]: -10 - 60 |
| Functions and features | Robust sinter filter for sensor protection Flexible gooseneck Integrated connection cable |
| Weight | (packaging excluded) [kg]: 0.5 |
| Internal sensors | H2 hydrogen gas [digits] |
| Operating time | Up to 14 hours in continuous operation Up to 40 hours in normal usage |
| Weight | [kg]: 0.232 |
| Standard scope of delivery | Battery(ies) Charger Operating manual |
d
| Temperature (°C) | Min. - Max. measuring range [°C]: -20 - 650 Max. accuracy: +/-2°C or +/-2% of the current measured value |
|---|---|
| Radiometric image performance | Detector type: Focal Plane Array (FPA), uncooled microbolometer Thermal sensitivity [30°C]: <0.05°C Image refresh rate: 50 Hz Geometric resolution: 1.89 mrad Standard lens | Radiometric image performance: 41.5° x 31.1° Minimum focal length: 0.5 m Field of vision (FOV): 41.5° x 31.1° |
| Display | LCD 3.5" Touch Colour |
| Visual image performance (integrated digital camera) | Video norm: HIMI Standard lens | Visual image performance (integrated digital camera): 65° |
| Interfaces | USB (USB-C) Composite video (video out) Mains power 5V DC>br />Wifi |
| Power supply | Via battery (Li-ion) via mains power DC 5V |
| Operating time | Up to 4 h Device control Touch function Push buttons |
| Memory organisation | Storage medium: Internal 3.4GB (+8GB via microSD) Radiometric file format: JPEG/HIR Visual file format: JPEG |
| Ambient conditions | Operation - min. - Max. temperature [°C]: -15 - 50 Storage - min. - Max. temperature [°C]: -40 - 70 Min. humidity [%]: 10 Max. humidity (non-condensing) [%]: 90 |
| Type of protection | IP54 IEC 529 Shock: 25G IEC 60068-2-29 Vibration: 2G IEC 60068-2-6 |
| Housing design | Plastics |
| Dimensions | (packaging excluded) [mm]: 96 (L) x 77 (W) x 224 (H) |
| Weight | (packaging excluded) [kg]: 0.5 |
| Standard scope of delivery | Thermal imaging camera with standard lensbr />Protective cap Temperature test certificate Standard software package MicroSD memory card Internal memory USB cable Tripod fixing device Li-ion battery Battery charger with charging status indicator |
| Internal sensors | Surface temperature [°C] Surface temperature [°F] |
| Functions and features | DuoVision Plus, combined display of IR image and contour representation (real image) Alarm function (acoustic) when exceeding/falling below freely configurable temperature values Image display option IR image Image display option real image Up to 4 movable measuring spots (3x manual and 1x automatic temperature tracking) Data transmission via WIFI Degree of emission adjustable from 0.01 to 1.0 Energy saving mode - user-defined Freeze function Isotherm measuring function - between upper and lower limit value Automatic contrast and brightness setting Profile analysis Tripod Tripod mounting Battery status indication Automatic adjustment of temperature range Automatic measurement correction based on user-defined specifications for ambient temperature, distance, relative humidity Automatic measurement correction based on user-defined specifications regarding reflected object temperature Integrated digital camera Integrated photo lamp Manual adjustment of brightness and contrast Manual focus 16x Digital zoom (stepless) Mounting via a 1/4 inch - 20 connection Saving of individual non-radiometric IR images directly on the storage medium Saving of radiometric videos on the PC via WIFI Saving of non-radiometric MPEG-4 IR videos directly on storage medium Saving of fully radiometric JPEGs Temperature comparison function Voice recording |
| Display | TFT Colour Size: 3,5 Zoll (960 x 720 Pixel) |
|---|---|
| Power supply | Internal (battery): 18.650 Li-ion, 3,7 V External (power adaptor) Colour |
| Device control | Push buttons |
| Ambient conditions | Operation - min. - Max. temperature [°C]: -10 - 50 Operation - min. - Max relative humidity [% r.F.]: 0 - 80 |
| Type of protection probe with measuring head | IP68 |
| Memory organisation | SD card: Max. 8 GB |
| Interfaces | Micro SD Micro USB HDMI (mini) |
| File format | Snapshot: JPG, BMP Video: MP4 DOF: 10 bis 100 mm |
| Housing design | Plastics |
| Probe / camera head | Sonde / Kamerakopf: Ø = 6 mm/ , L = 1.000 mm Field of vision [°]: 85 Type of illumination : 6-fach LED Zoom: 10 x, digital Illuminance [lux]: 20,000 |
| Dimensions | (packaging excluded) [mm]: 190 (L) x 115 (W) x 115 (H) |
| Standard scope of delivery | Videoscope 1x Li-ion battery Magnetic holder Operating manual Transport case |
| Functions and features | Fully flexible probe, bendable in 4 directions Still image Photo recording Video recording Shooting and saving individual images and complete video sequences Brightness control Flip function for image rotation in 90° steps Date and time Cordless battery operation Battery status indication Display illumination |
| Material Moisture | Min. - Max. Range: 0 - 100 Resolution: 0.1 Measuring Principle: Dielectric / Capacitive |
|---|---|
| Ambient Conditions | Operating Temperature: 0°C to 50°C Min. - Max. Relative Humidity: 10% r.F. - 90% r.F.. Relative Humidity During Storage: < 80% RH |
| Bluetooth | Version: 4.0 (BLE) Max. Transmission Range: 10m in open terrain |
| Dimensions | [mm] 22 (L) x 36 (W) x 160 (H) |
| Weight | (packaging excluded) [kg]: 0.093 |
| Air Temperature [°C] | Min. - Max. Range: -20°C - 60°C Resolution: 0.1°C Accuracy: ±0.8°C (at -20°C to 0°C), ±0.5°C (at 0°C to 60°C) |
|---|---|
| Air Temperature [°F] | Min. - Max. Range: -4°F - 140°F Resolution: 0.1°F Accuracy: ±0.5°F |
| Relative Humidity [%] | Min. - Max. Range: 0% - 100% Specified Min. Range: 5% Specified Max. Range: 95% Resolution: 0.1% |
| Bluetooth | Version: 4.0 (BLE) Max. Transmission Range: 10m in open terrain |
| Power Supply | 3 x 1.5V, AAA |
| Ambient Conditions | Operating Temperature: -20°C to 60°C Operating Humidity: 10% to 90% r.F. (non-condensing) Storage Temperature: -20°C to 60°C Storage Humidity: Up to 90% r.F. (non-condensing) |
| Dimensions | [mm] 22 (L) x 32 (W) x 226 (H) mm Width: 32 mm Height: 226 mm |
| Optics | Optical resolution (D:S): 10:1 Smallest measuring spot: Ø 12.7 mm (Distance 254 mm) |
|---|---|
| Infrared temperature sensor [°C] | Min. measuring range | Infrared temperature sensor [°C]: -30 Max. measuring range | Infrared temperature sensor [°C]: 250 Max. accuracy [°C] | Infrared temperature sensor: ±3 °C (at >0 °C) / ±2 °C / ±2 % (at ≤ 0 °C) |
| Infrared temperature sensor [°F] | Min. measuring range | Infrared temperature sensor [°F]: -22 Max. measuring range | Infrared temperature sensor [°F]: 482 |
| Ambient conditions | Operation - min. temperature [°C]: 0 Operation - max. temperature [°C]: 50 Operation - min. relative humidity [% r.F.]: 10 Operation - max. relative humidity [% r.F.]: 90 Storage - min. temperature [°C]: -20 Storage - max. temperature [°C]: 60 Relative humidity during storage [%]: |
| Temperature sensor | Response time: 0.3 s Spectral sensitivity: 8 - 14 µm |
| Laser (target display) | Class: 2 (II) Wavelength: 630 - 670 nm Power [mW]: 1 |
| Bluetooth | 4.0 (BLE): Yes Max. transmission range: 10 m in open terrain |
| Power supply | Internal (battery): Yes |
| Dimensions | (packaging excluded) [mm]: 24.3 (L) x 37 (W) x 150.5 (H) |
| Weight | (packaging excluded) [kg]: 0.11 |
| Standard scope of delivery | Measuring device Wrist strap Operating manual |
| Functions and features | Temperature [°C] Temperature [°F] |
| Internal sensors | Battery status indication Minimum value display Maxmum value display Average value display Measured value hold function Autmatic switch-off Alarm function Long-term measurement function Multi-point laser aiming aid Non-contact measurement method Representation of measurement data as chart, matrix or table Data export Report generation function |
| Air flow rate [m/s] | Min. - Max. measuring range [m/s]: 0.6 - 30 Resolution [m/s]: 0.1 |
|---|---|
| Air flow rate [mph] | Min. - Max. measuring range [mph]: 1.3 - 67 Resolution [mph]: 0.1 |
| Air flow rate [ft/min] | Min. - Max. measuring range [ft/min]: 118 - 5,905 Resolution | Air flow rate [ft/min]: 1 |
| Air temperature [°C] | Min. - Max. measuring range [°C]: -20 - 60 Resolution [°C]: 0.1 |
| Air temperature [°F] | Min. - Max. measuring range [°F]: -4 Max. measuring range | Air temperature [°F]: 140 Resolution [°F]: 0.1 |
| Relative humidity | Accuracy – relative humidity: ± 3.5 % RH (with 20 to 80 % RH) ± 5 % RH (with 0 to 20 % RH and 80 to 100 % RH) Resolution [% RH]: 0.1 |
| Bluetooth | 4.0 (BLE): Yes Max. transmission range: 10 m in open terrain |
| Power supply | Internal (battery): Yes Battery type: 3 x 1.5 V, AAA |
| Ambient conditions | Operation - min. - Max. temperature [°C]: -20 - 50 Operation - min. - Max. relative humidity [% r.F.]: 10 - 90 Relative humidity during storage [%]: <� 80% RH |
| Dimensions | (packaging excluded) [mm]: 22 (L) x 43 (W) x 158 (H) |
| Weight | (packaging excluded) [kg]: 0.122 |
| Standard scope of delivery | Measuring device Wrist strap Operating manual |
| Internal sensors | Temperature [°C] Temperature [°F] Relative humidity [%] Wind speed [m/s] |
| Functions and features | Battery status indication Minimum value display Maximum value display Average value display Measured value hold function Automatic switch-off Indication in m/s, km/h, m³/min, ft/min, mph, kn Alarm function Representation of measurement data as chart or table Data export Report generation function |
| Air flow rate [m/s] | Min. - max. measuring range [m/s]: 0 - 30 Resolution [m/s]: 0.01 |
|---|---|
| Air flow rate [mph] | Min. - Max. measuring range [ft/min]: 0 - 67 Resolution [mph]: 0.1 |
| Air flow rate [km/h] | Min. - Max. measuring range [km/h]: 0 - 108 Resolution [km/h]: 0.1 |
| Air flow rate [kn] | Min. - Max. measuring range [kn]: 0 - 58 Resolution [kn]: 0.1 |
| Air flow rate [ft/min] | Min. - Max. measuring range [ft/min]: 0 - 5,900 Resolution [kn]: 1 |
| Air temperature [°C] | Min. - Max. measuring range | Air temperature [°C]: -20 - 60 Accuracy – temperature: ±0.8 °C (at -20 to 0 °C) / ±0.5 °C (at ≥ 0 °C) Resolution [°C]: 0.1 |
| Air temperature [°F] | Min. - Max. measuring range | Air temperature [°F]: -4 - 140 Resolution [°F]: 0.1 |
| Relative humidity | Accuracy – relative humidity: ± 3.5 % RH (with 20 to 80 % RH) ± 5 % RH (with 0 to 20 % RH and 80 to 100 % RH) Resolution | Relative humidity [% RH]: 0.1 |
| Bluetooth | 4.0 (BLE): Yes Max. transmission range: 10 m in open terrain |
| Power supply | Internal (battery): Yes Battery type: 3 x 1.5 V, AAA |
| Ambient conditions | Operation - min. - Max. temperature [°C]: -20 - 50 Operation – min. - Max. relative humidity [% r.F.]: 10 - 90 Relative humidity during storage [%]: <� 80% RH |
| Dimensions | (packaging excluded) [mm]: 22 (L) x 36 (W) x 320 (H) (telescopic probe included) [mm]: 22 (L) x 36 (W) x 555 (H) 12 (D) |
| Weight | (packaging excluded) [kg]: 0.122 |
| Standard scope of delivery | Measuring device Wrist strap Operating manual |
| Internal sensors | Temperature [°C] Temperature [°F] Relative humidity [%] Wind speed [m/s] |
| Internal sensors | Temperature [°C] Temperature [°F] Relative humidity [%] Wind speed [m/s] Measured value hold function Automatic switch-off Indication in m/s, km/h, m³/min, ft/min, mph, kn Alarm function Representation of measurement data as chart or table Data export Report generation function |
| Wood Moisture [%] | Min. - Max. measuring range [%]: 0.2 - 2.4 Approx. accuracy ± [%]: 0.2 Resolution [%]: 0.5 |
|---|---|
| Ambient conditions | Operation - min. - Max. temperature [°C]: -20 - 60 Operation - min. - Max. relative humidity [% r.F.]: 10 - 90 Relative humidity during storage [%]: <� 80% RH |
| Bluetooth | Version: 4.0 (BLE) Max. Transmission Range: 10m in open terrain |
| Dimensions | (packaging excluded) [mm]: 22 (L) x 33 (W) x 140 (H) |
| Housing design | Electrode length [mm]: 8 |
| Internal sensors | Wood moisture [%] Material moisture [%] |
| Functions and features | Minimum value display Maximum value display Average value display Measured value hold function Automatic switch-off Alarm function Long-term measurement function Representation of measurement data as chart, matrix or table Data export Report generation function |
1 x Trotec LD6000 Combination Detector
1 x LD6000 BMW Ground Microphone

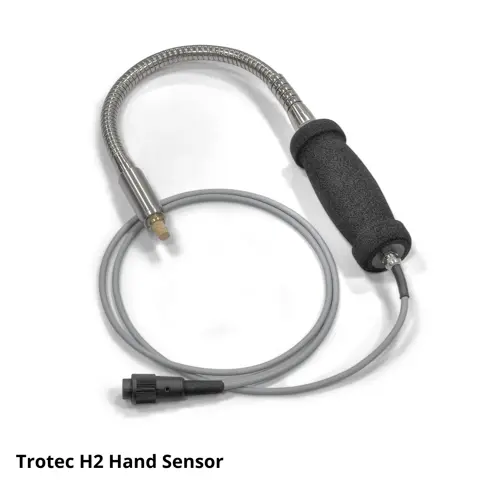

1 x Trotec LD 6000 H2 Hand Sensor
1 x Trotec IC 300 Thermal Imaging Camera

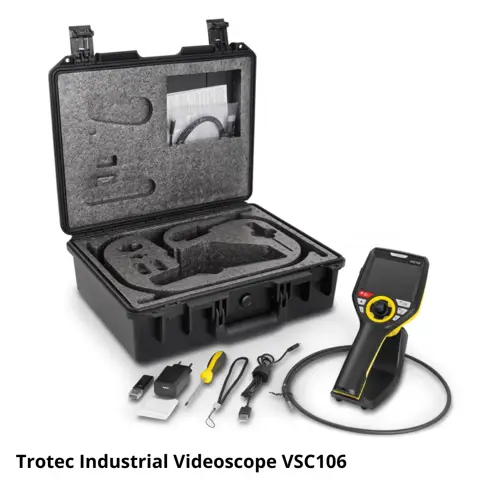

1 x Trotec Industrial Videoscope VSC106
1 x Trotec BM31WP App Sensor Moisture Indicator

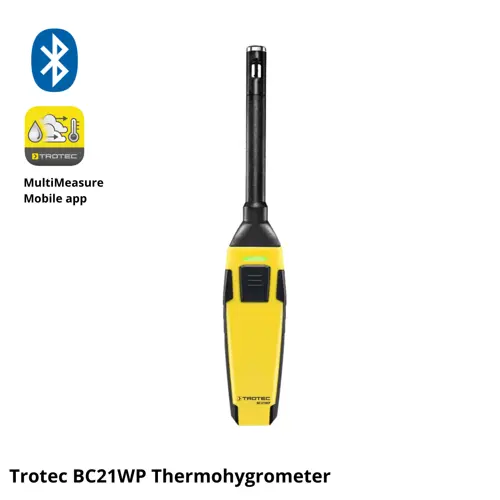

1 x Trotec BC21WP Thermohygrometer
1 x Trotec BP21WP Pyrometer
1 x Trotec BA16WP Vane Anemometer
1 x Trotec BA30WP Hot-Wire Anemometer
1 x Trotec BM22WP Pin-Probe Meter
1 x Dantherm Solutions Academy 2-Day Water Damage Restoration Course
