100% Clean Hot Air: The heater blows out 100 per cent clean, fume-free warm air from its warm air outlet. This makes it ideal for heating enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.
Ducting Connection: Sections of ducting can be attached to this heater and allow the heat to be directed to where it is needed.
Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately.
High Quality Components: High-performance seven-blade fan assembly and redesigned combustion chamber, Tiger Loop, 450mm One Way Adaptor,
Jumbo 85 Ecoflam Diesel Burner, 300mm Crush Proof Fuel Hose, 6000 Series ISO Male Tip Pro and BSPP Male x BSPP Male adapter.
Tough & Robust: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.
Portable Design: Large wheels and a handle make the heater very portable. Lifting eyes on top of the unit allow it to be lifted on and off transport.
Thermostat Connectivity: An optional heavy-duty thermostat can be connected to this heater, which allows you to set a required temperature within the space. The thermostat will switch the heater on and off as required to maintain the set temperature.
Tigerloop Included: This heater features no internal fuel tank. It is designed to be connected to an external fuel tank of your choice. The Tigerloop removes any air from the fuel as it enters the heater.

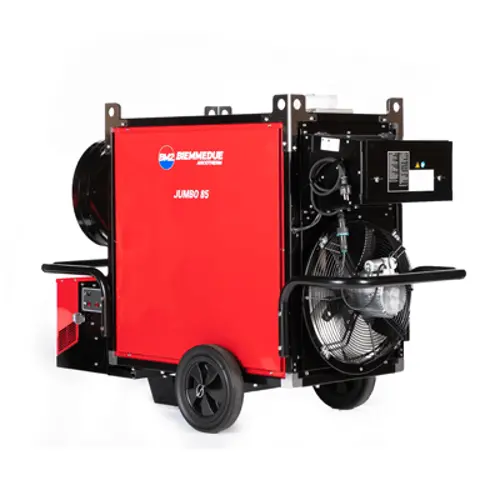

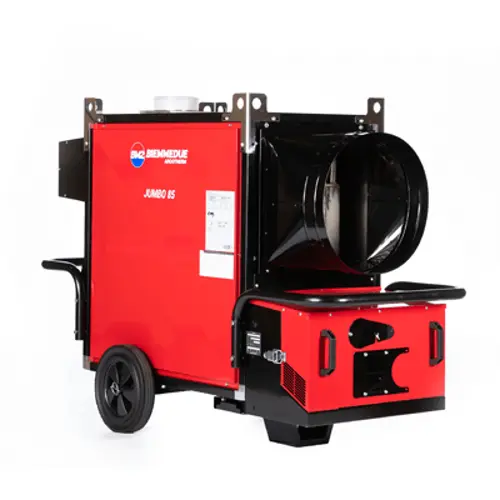

Arcotherm Jumbo 85M Indirect Oil Fired Space Heater
Powerful & practical industrial diesel heater
The Arcotherm Jumbo 85M is 79kW indirect fired space heater with a heating efficiency of 92 to 93 per cent and an airflow of 7200m³/hr, which makes it ideal for large spaces like warehouses, factories, garages and more.
The Jumbo 85M indirect heater features a new high-performance seven-blade fan assembly and redesigned combustion chamber. Panels are reinforced with cross pleats to ensure greater rigidity and structural strength, but can be removed to allow for interior cleaning and maintenance.
The Acrotherm 85M has large wheels that are integrated at the base of the frame, so it is easier to move the space heater. The electrical control panel is located at the top rear of the heater and allows for straightforward control or review of operational status.
The Arcotherm Jumbo 85M can also be used for large scale drying on construction sites, in buildings following heavy downpours or for agricultural applications like crop drying.
The Arcotherm 85M comes with several extras as standard, including a Jumbo Tiger Loop, 450mm One Way Adaptor, Jumbo 85 Ecoflam Diesel Burner, 300mm Crush Proof Fuel Hose, 6000 Series ISO Male Tip Pro and BSPP Male x BSPP Male adapter.
Additional extras also available include robust PVC ducting, two/four-way outlet splitters, fuel tank, side bumper kit, lifting kit, swivelling wheels kit, pre-heated oil filter, flue storage kit and chimney support kit. Standard ducting, splitters, splitter ducting, thermostat, flue and rain cowl are also available.
An optional heavy-duty thermostat can be connected to this heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required to maintain the set temperature.
Heater Dimensions: 1648mm x 770mm x 1133mm
Packaged Heater Dimensions: 1600mm x 680mm x 1135mm
Product Weight: 172kg
Packaged Weight: 192kg
Heating Capacity: 79kW
Heat Efficiency: 92.7%
Air Flow: 7,200m³/h
Air Temperature: 47℃
Fuel Consumption: 6.77l/hr
Electrical Power: 700W
