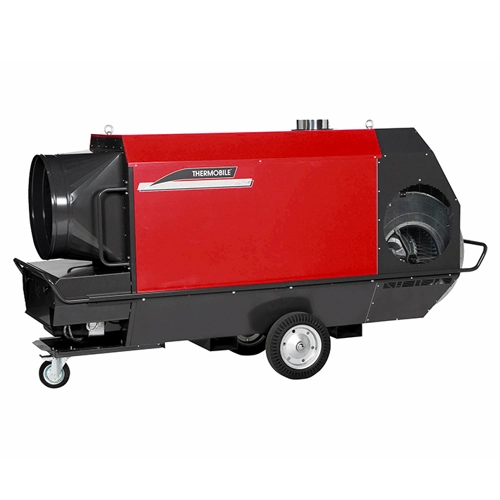

The Thermobile IMA 200 is a portable industrial space heater, designed for heating large areas on construction sites, as well as warehouses, factories, agricultural buildings, large marquees & events and more. It can be used to heat spaces, to dry spaces out and to dry out produce and materials within the space. As it is an indirect fired heater, the Thermobile IMA 200 throws out only clean-fume free warm air, while fumes are exhausted out of the top of the heater via a flue. Lengths of ducting can be fixed to this heater to duct the clean warm air over long distances and into specific spaces, making it safe to heat confined spaces on site with little ventilation.
Two models of the Thermobile IMA 200 indirect fired space heater are available. The IMA 200 RAD features a 230v radial fan which offers up to 300 Pa of air pressure, which allows multiple lengths of ducting to be used, to send warm air to separate locations away from the heater. The IMA 200 RHP features a 400v 3 phase high pressure radial fan, which offers extra high pressure of 500 Pa - ideal for the most demanding sites to send warm air over long distances.
The Thermobile IMA 200 indirect diesel space heater is designed for industrial use. It offers large volumes of clean warm air, an air outlet temperature circa 40-60°C, and it has a high efficiency heat exchanger offering 92% efficiency. The combustion chamber is heat resistant up to 850°C and it features a tigerloop as standard - a fuel filter with condensate separator - as well as an intercal industrial burner with flow control. This heater also has a thermostat connection point, which offers the capability to automatically switch the heater on and off as required, to maintain a set temperature, saving on fuel and running costs, and adding convenience. The fan on this space heater stops at temperatures below 40°C, to prevent it from circulating cold air when starting up. Constant ventilation is also possible with an extra switch position - ideal for keeping sites ventilated during warmer months or in challenging conditions.
Please note: This heater features no internal fuel tank. An external fuel tank is required.
Thermobile IMA 200 RAD Heater Specifications
Part number: 41.728.650
Heat Capacity: 200kW
Fuel consumption oil (l/hr): 19.4
Fan: Radial
Heated air flow (m3/hr): 10,000
Maximal ventilator backpressure: 300
Power consumption (Amps): 15 / 230V
Outlet cone Ø (mm): 600
Flue connection Ø (mm): 200
Thermostat connection: YES
Thermobile IMA 200 RHP Heater Specifications
Part number: 41.728.010
Heat Capacity: 200kW
Fuel consumption oil (l/hr): 19.4
Fan: Radial High Pressure
Heated air flow (m3/hr): 13,000
Maximal ventilator backpressure: 500
Power consumption (Amps): 10 / 400V
Outlet cone Ø (mm): 600
Flue connection Ø (mm): 200
Thermostat connection: YES
