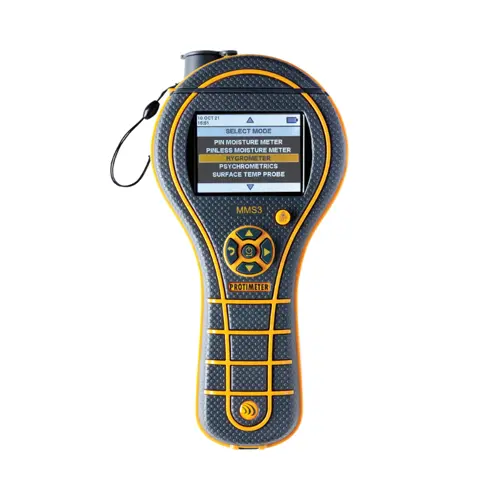

The Protimeter MMS3® represents the cutting edge in moisture measurement technology, offering a versatile and comprehensive solution for professionals in construction, refurbishment, and building diagnostics. This advanced device combines multiple functions in one ergonomic design, making it an indispensable tool for accurately assessing moisture levels in a variety of materials including wood, drywall, concrete, and more.
Designed with the user in mind, the Protimeter MMS3® features an ergonomic 4-in-1 design that integrates pin moisture measurement, non-invasive moisture detection, hygrometric testing, and an infrared (IR) thermometer. This design not only facilitates a thorough assessment of building moisture and environmental conditions but also enhances ease of use with its wireless capability. Now, professionals can effortlessly transmit and log data directly to their devices, improving efficiency and accuracy in reporting.
The MMS3® boasts advanced features such as a built-in calibration check for pin moisture measurement, a sensitivity mode for non-invasive detection, and the ability to measure surface temperatures without contact. These features ensure precise and reliable readings, essential for effective moisture management and diagnosis of potential issues. With the capacity to log up to 10,000 records manually or automatically, the MMS3® simplifies data management and allows for detailed analysis of environmental conditions over time.
Included in the Instrument in Case option is the MMS instrument, Quickstick ST, HD MC probe, Quick start guide and a hard carry case. Included in the Survey Kit option is the MMS instrument, Quickstick ST, HD MC probe, Hygrostick, Hydro/Quik extension lead, 5in deep wall probe, quick start guide and a preformed case.
| Gross Weight |
Instrument only with batteries 10.9 oz (309 g) |
| Regulatory Compliance |
CE RoHS ETL UKCA |
| Plug-In Surface Temperature Probe |
(BLD5806) Range: 32°F to 158°F (0°C to 70°C) Accuracy: ±1.3°F (±0.7 °C) @ 77 °F (±25° C) |
| Display |
2.4" TFT Color LCD 320x240 Resolution Blacklight with adjustable brightness Outdoor Mode |
| Batteries (Included) | 2xAA Alkaline Batteries ~ 2700mAH |
| Warranty |
Standard Limited Warranty for 24 months on mechanical or manufacturing defects. Does not include wearing part or accessories., which have a 12 month warranty for normal use. |
| Moisture Measurement Range |
Pin (% WME): 6% to 100% (Readings over 30% are relative.) Non-Invasive (RF): 60 to 999 Relative, up to 3/4" (19mm) deep in standard mode and up to 5" (12cm) deep in sensitivity mode (varies with material under test.) |
| IR Surface Temperature Probe Range |
LASER Pointer: 12:1 (D:S) Ratio Range: -4°F to 176°F (-20°C to 80°C) Accuracy ±3.6°F (±2°C) |
| Hygrostick Data (Nominal) | 30% t 40% RH (±3% RH) at 68°F (20°C) 41% to 98% RH (±2%) at 68°F (20°C). Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C) |
| Quickstick Data (Nominal) |
0% to 10% RH, ±3% RH at 68°F (20°C), 10 to 90% RH, ±2% RH at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) ±0.6%°F (±0.3°C) Nominal response 30% to 90% |
| Data Storage |
Manual and Automatic Logging: Store up to 10,000 results in the device with date and timestamp from all instrument functions. Store results of interest in cloud from live data on the Protimeter app into a file or embed into an image to be accessed through phone/tablet and/or web interface. |
