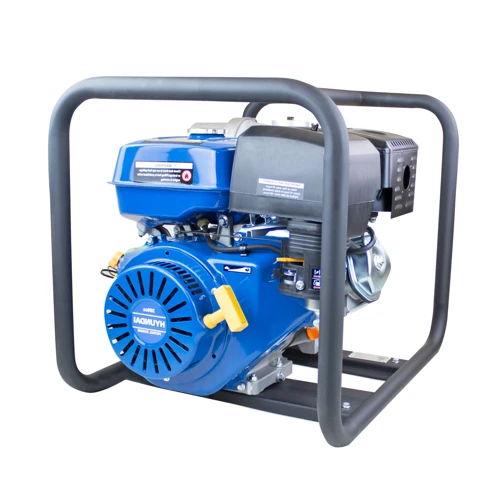

The HY100 is a petrol-powered water pump with an open-frame design and a recoil start. The pump comes powered with a 389cc 4-stroke, single-cylinder engine. This powerful engine produces a performance of 75,000 litres per hour or 1,250L of fluid a minute. Each is designed for a simple start coming fitted with an easy recoil pull-starting. Each comes with a maximum suction head lift of 7 metres and 4 inches, 100mm inlet and outlet. The total head lift of these units is 20m. They can pump contaminated water infested with particles such as gravel or other solids, up to 9mm in diameter.
These pumps can be used for a range of applications including as a hot tub pump, swimming pool pump or to clear garden ponds, puddles or bodies of water built up due to rain. Sleek and lightweight these 31kg pumps can be carried easily. Each pump also comes fitted with a solid open frame. These frames both protect the unit from being damaged and make them easier to hold and carry. This pump is petrol powered meaning they can be used in areas where mains electrical supplies are unavailable. And thanks to the 6.5L fuel tank they can operate uninterrupted for hours between refills. Each comes crafted with aluminium housing with a cast iron impeller for added longevity.
Model: HY100
Start Method: Recoil
Pump Type: Aluminium Housing
Water Type: Clean
Fuel: Petrol
Fuel Capacity (L): 6.5
Impeller Type: Cast Iron
Drive Type: Direct Drive
Engine Oil: 5W-30
Engine Oil Capacity (ml): 1.1
Max Flow Rate (L/min): 1250
Max Flow Rate (L/hr): 75000
Inlet (inches/mm): 4/100
Outlet (inches/mm): 4/100
Max Solids (mm): 9
Suction Lift (m): 7
Total Lift (m): 20
Engine Model: IC390
Engine Type: Hyundai IC390
Engine Size (cc): 389
Rated Power (kW/kVA): 8.6
Max Power (kW/kVA): 9
Maximum Power @ 3000rpm (hp/kw): 10.7/8
Maximum Power @ 3600rpm (hp/kw): 12/9
Net Installed Power @ 3000rpm (hp/kw): 10.7/8
Net Installed Power @ 3600rpm (hp/kw): 12/9
Speed (RPM): 3600
Noise Level (db): 104
31: 33.5
Net Weight (kg): 31
Fully Assembled Dimensions (H x W x L) (mm): 480 x 420 x 450
Package Dimensions (H x W x L) (mm): 660 x 510 x 550
Fuel Type / Power Source: Petrol
Product Type: Water Pump
Warranty (years): Warranty (years)
In The Box: HY100 Petrol Water Pump, Filter, Spark Plug Spanner & User Manual
Model EAN: 5056275722852
