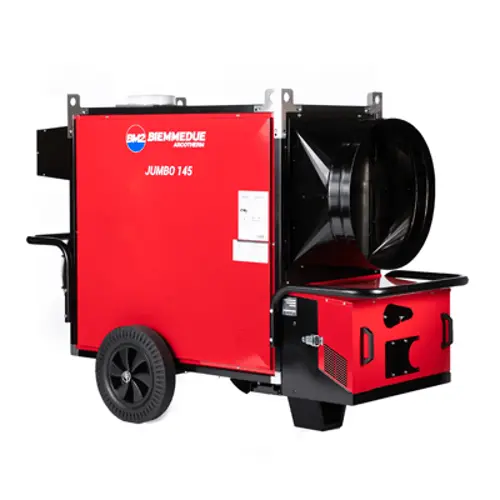

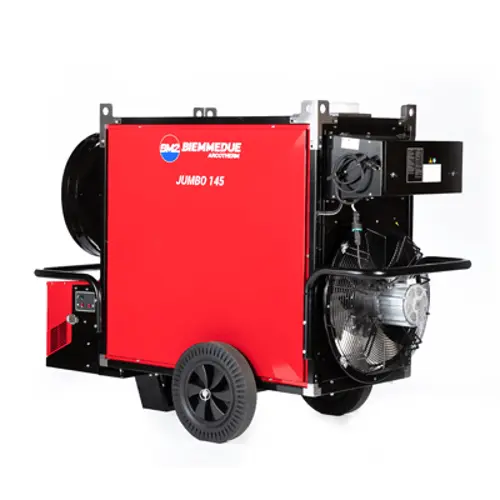

The Arcotherm Jumbo 145M is a 137kW indirect space heater with a 94 per cent heating efficiency and 12,000m³/hr airflow, which is perfect for industrial and commercial applications.
The Jumbo 145M is also suited for agricultural use and large-scale drying following adverse or extreme weather, but it can also easily supply warehouses, factories, garages, construction sites, marquees and farmhouses with warm, clean air.
The Jumbo 145M has an all-new, redesigned combustion chamber and higher performance seven-blade fan. Every significant component has quick couplings, which are rated IP65 to protect against ingress of small particles like dust and water.
The 145M burner cover has reinforced panels for impact resistance and combines with the weight bearing structure to provide anchorage and structural strength. The electrical control panel is placed at the top rear of the heater to avoid contact with the ground, snow, water and dust. Large, robust wheels are integrated at the base of the space heater to make it easier to move.
Available accessories include PVC ducting and either two or four-way splitters, which can be used in conjunction with multiple lengths of PVC ducting. Standard ducting, splitters, splitter ducting, thermostat, flue and rain cowl are also available.
We can also supply a fuel tank, side bumper kit, lifting kit, swivelling wheels kit, pre-heated oil filter, flue storage kit and chimney support kit. Other extras that are included with the Jumbo 145M as standard are a Jumbo Tiger Loop, 450mm One Way Adaptor, Jumbo 85 Ecoflam Diesel Burner, 300mm Crush Proof Fuel Hose, 6000 Series ISO Male Tip Pro and BSPP Male x BSPP Male adapter.
Heater Dimensions: 1905mm x 890mm x 1354mm
Packaged Heater Dimensions: 1870mm x 780mm x 1330mm
Product Weight: 260kg
Packaged Weight: 280kg
Heating Capacity: 137kW
Heat Efficiency: 94%
Air Flow: 12,000m³/h
Air Temperature: 48℃
Fuel Consumption: 11.45l/hr
Electrical Power: 1570W
