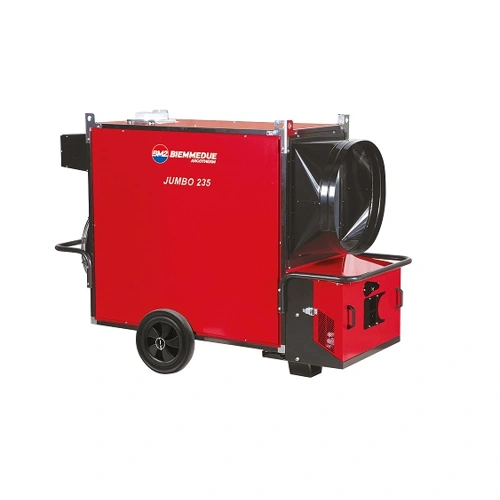

Arcotherm Jumbo 235M Indirect Oil Fired Space Heater 218kW

Arcotherm Jumbo 235M Indirect Space Heater

Provides warm clean air for large open areas

The Arcotherm Jumbo 235M is a 218kW indirect space heater with 92 per cent heating efficiency and a 17000m³/hr airflow that provides warm, clean air for large open areas. The 235M is also adept at heating public event spaces like marquees, stables and farmhouses or improving working conditions in factories, warehouses and garages during colder periods.

The Jumbo 235m is safe to use for any space due to it supplying only clean air output while the fumes are exhausted separately. It features a redesigned combustion chamber and higher performance seven-blade fan, while low noise levels make it suitable for commercial and domestic use too.

Every significant component has quick couplings for faster assembly and maintenance. These couplings have an IP65 rating to protect against ingress of small particles like dust and water. The Jumbo's burner cover has reinforced panels for impact resistance and combines with the weight bearing structure to provide anchorage and structural strength. The electrical control panel is placed at the top rear of the heater to avoid contact with the ground, snow, water and dust.

The Jumbo 235M comes with several extras included as standard, including a Jumbo Tiger Loop, 450mm One Way Adaptor, Jumbo 85 Ecoflam Diesel Burner, 300mm Crush Proof Fuel Hose, 6000 Series ISO Male Tip Pro and BSPP Male x BSPP Male adapter. Additional extras include PVC ducting and two/four-way outlet splitters, which help channel heat via ducting to more than one space at the same time.

Standard ducting, splitters, splitter ducting, thermostat, flue and rain cowl are also available. We can also supply a fuel tank, side bumper kit, lifting kit, swivelling wheels kit, pre heated oil filter, flue storage kit and chimney support kit. All the accessories allow you to safely leave the Jumbo 235M running unattended for long periods with the fumes extracted outside of the space.

Heater Dimensions: 2245mm x 982mm x 1584mm
Packaged Heater Dimensions: 2200mm x 880mm x 1560mm
Product Weight: 357kg
Packaged Weight: 377kg
Heating Capacity: 218kW
Heat Efficiency: 92%
Air Flow: 17,000m³/h
Air Temperature: 55°C
Fuel Consumption: 18.65l/hr
Electrical Power: 2550W

100% Clean Hot Air: The heater blows out 100 per cent clean, fume-free warm air from its warm air outlet. This makes it ideal for heating marquees, tents, workshops, warehouses, areas on construction sites and much more.

Ducting Connection: Sections of ducting can be attached to this heater.

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately.

High Quality Components: High-performance seven-blade fan assembly and redesigned combustion chamber, Jumbo Tiger Loop, 450mm One Way Adaptor, Jumbo Ecoflam Diesel Burner, 300mm Crush Proof Fuel Hose, 6000 Series ISO Male Tip Pro and BSPP Male x BSPP Male adapter.

Tough & Robust: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.

Portable Design: Large wheels and a handle make the heater very portable. Lifting eyes on top of the unit allow it to be lifted on and off transport.

Thermostat Connectivity: An optional heavy-duty thermostat can be connected to this heater. The thermostat will switch the heater on and off as required.

Tigerloop Included: This heater has no internal fuel tank, but is designed to be connected to an external fuel tank of your choice. The Tigerloop removes any air from the fuel as it enters the heater.
