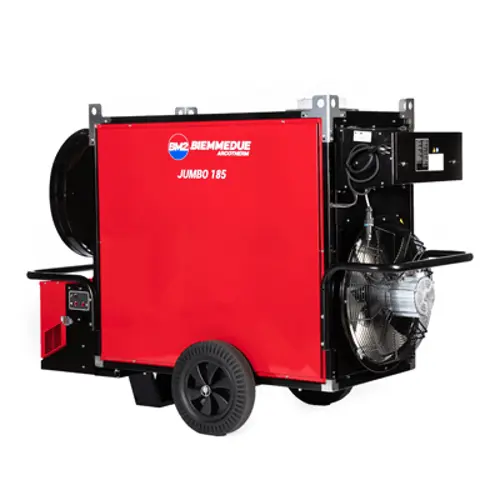

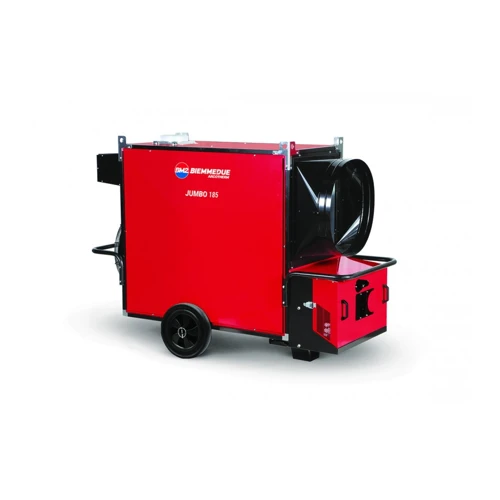

Arcotherm Jumbo 185M Indirect Oil Fired Space Heater
170kW

Arcotherm Jumbo 185M Indirect Space Heater

Exceptional heating solution

The Arcotherm Jumbo 185M is 170kW indirect space heater capable of providing warm, clean air with a 92 to 93 per cent heating efficiency and 13000m³/hr airflow, which is ideal for factories, warehouses, garages and more.

The Jumbo 185M is suitable for heating public event spaces like marquees, stables, farmhouses and for drying out vast areas. Indirect space heaters are safe to use for any space, as they supply a clean air output while the fumes are exhausted separately.

The Arcotherm Jumbo 185M has a new, redesigned combustion chamber completed with a higher performance seven-blade fan. All of the components are provided with quick couplings for faster assembly and easy maintenance. Both the quick couplings and electrical control panels have an IP65 rating to protect against ingress of small particles like dust and water.

The Arcotherm 185M burner cover has reinforced panels with cross pleats for impact resistance and structural strength. The panels are removable for convenient access for repair and internal cleaning. The space heater is mounted on a weight bearing structure with improved anchorage. Large, robust wheels integrated at the base of the space heater and sturdy attachment rods make it easy to move.

Additional extras include PVC ducting and two/four-way splitters, which can be used in conjunction with multiple lengths of PVC ducting so that you can heat more than one space at the same time. Standard ducting, splitters, splitter ducting, thermostat, flue and rain cowl are also available.

We can also supply a fuel tank, side bumper kit, lifting kit, swivelling wheels kit, pre heated oil filter, flue storage kit and chimney support kit.

Heater Dimensions: 2013mm x 912mm x 1414mm
Packaged Heater Dimensions: 1980mm x 800mm x 1390mm
Product Weight: 276kg
Packaged Weight: 296kg
Heating Capacity: 170kW
Heat Efficiency: 92.4%
Air Flow: 13,000m³/h
Air Temperature: 57°C
Fuel Consumption: 14.68l/hr
Electrical Power: 1550W

100% Clean Hot Air: The heater blows out 100 per cent clean, fume-free warm air from its warm air outlet. This makes it ideal for heating enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.

Ducting Connection: Sections of ducting can be attached to this heater to direct the clean warm air into a space.

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately.

High Quality Components: High-performance 7-blade fan assembly and redesigned combustion chamber.

Tough & Robust: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.

Portable Design: Large wheels and a handle make the heater very portable. Lifting eyes on top of the unit allow it to be lifted on and off transport.

Thermostat Connectivity: An optional heavy-duty thermostat can be connected to this heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required to maintain the set temperature.

Tigerloop Available: This heater features no internal fuel tank. It is designed to be connected to an external fuel tank of your choice. The Tigerloop removes any air from the fuel as it enters the heater.
