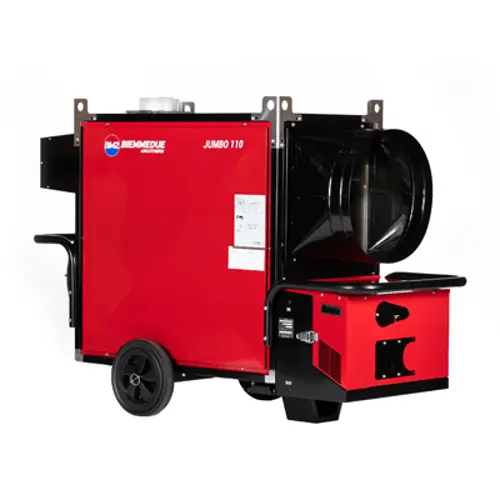

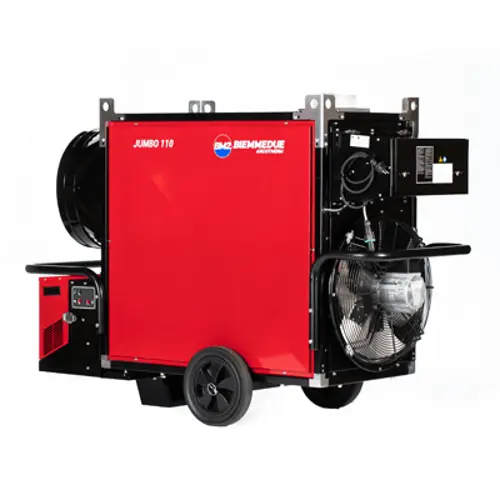

Arcotherm Jumbo 110M Indirect Oil Fired Space Heater
102kW

Arcotherm Jumbo 110M Indirect Oil Fired Space Heater

Powerful & efficient heating

The Arcotherm Jumbo 110M is a 102kW indirect space heater that has a 9000m³/hr airflow and 92  to 93 per cent heating efficiency, so it is ideal for quickly warming up large spaces like warehouses, factories, garages, farmhouses and more.

The Jumbo 110M provides hot, clean air to any space while expelling any waste fumes out into the open via an exhaust system. These heaters are excellent for providing warmth in working areas with challenging conditions, agricultural applications such as drop drying, and for intensive drying on construction sites, buildings, etc., following adverse weather.

The Arcotherm 110M has an outer shell that is constructed from steel with reinforcement cross pleats, which can be removed for internal cleaning and maintenance. Every major component has quick couplings, which have an IP65 rating and allow for faster assembly and maintenance.

The 110M features Arcotherm's redesigned combustion chamber and a seven-blade fan, which offers low operating noise and uniform diffusion of air with high static pressure. Electrical controls are placed for element ingress protection with an IP65 rating and allow for straightforward monitoring.

The Jumbo 110M is supplied as standard with a Jumbo Tiger Loop, 500mm One Way Adaptor, Jumbo 110 Ecoflam Diesel Burner, 300mm Crush Proof Fuel Hose, 6000 Series ISO Male Tip Pro and BSPP Male x BSPP Male adapter.

Additional extras include PVC ducting and two/four-way outlet splitters. Standard ducting, splitters, splitter ducting, thermostat, flue, and rain cowl are also available. We can also supply a fuel tank, side bumper kit, lifting kit, swivelling wheels kit, pre-heated oil filter, flue storage kit and chimney support kit on request.

Heater Dimensions: 1765mm x 800mm x 1214mm
Packaged Heater Dimensions: 1775mm x 710mm x 1240mm
Product Weight: 200kg
Packaged Weight: 220kg
Heating Capacity: 102kW
Heat Efficiency: 92.8%
Air Flow: 9,000m³/h
Air Temperature: 49℃
Fuel Consumption: 8.74l/hr
Electrical Power: 1100W

100% Clean Hot Air: The heater blows out 100 per cent clean, fume-free warm air from its warm air outlet. This makes it ideal for heating enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.

Ducting Connection: Sections of ducting can be attached to this heater.

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately.

High Quality Components: High-performance seven-blade fan assembly and redesigned combustion chamber, Jumbo Tiger Loop, 500mm One Way Adaptor, Jumbo 110 Ecoflam Diesel Burner, 300mm Crush Proof Fuel Hose, 6000 Series ISO Male Tip Pro and BSPP Male x BSPP Male adapter.

Tough & Robust: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.

Portable Design: Large wheels and a handle make the heater very portable. Lifting eyes on top of the unit allow it to be lifted on and off transport.

Thermostat Connectivity: An optional heavy-duty thermostat can be connected to this heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required to maintain the set temperature. This saves fuel and adds extra convenience.

Tigerloop Included: This heater features no internal fuel tank. It is designed to be connected to an external fuel tank of your choice. The Tigerloop removes any air from the fuel as it enters the heater.
