Air Conditioning Centre iPAC‑42-MOU 12kW Multi-Split Outdoor Air Conditioning Unit 42,000 BTU

iPAC‑42-MOU 12kW Multi-Split Outdoor Air Conditioning Unit

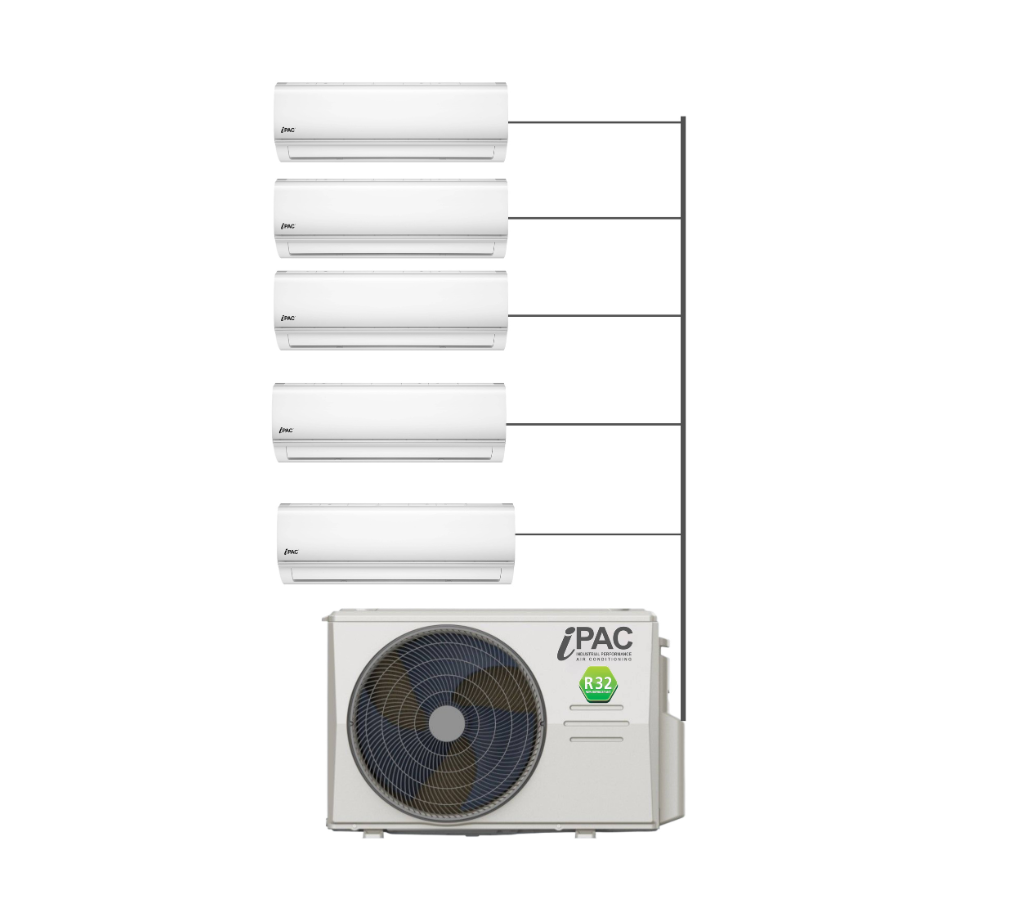

Five-Zone Climate Control from One Outdoor Condenser

The iPAC‑42 MOU 12kW multi-split outdoor unit is designed to power up to five compatible indoor AC units, creating an efficient, space-saving solution for large homes, apartments, shared office spaces, retail units and hospitality venues. Featuring 42,000 BTU capacity, it delivers powerful cooling and heating across multiple rooms without the need for multiple outdoor condensers. It delivers both flexibility and strength in a single, streamlined exterior solution.

Year-Round Heat Pump Performance

Harnessing advanced inverter heat pump technology, the iPAC-42-MOU delivers efficient cooling in summer and reliable heating in winter. In warmer months, it extracts heat from indoor air and releases it outside; as seasons shift, the cycle reverses to draw warmth indoors. Its inverter-driven compressor continuously adapts output to match real-time conditions, maintaining stable temperatures while optimising energy consumption across all five zones.

High Efficiency for Demanding Spaces

Despite its 12kW capacity, the iPAC-42-MOU achieves A++ efficiency in cooling and A+++ in heating under mild outdoor conditions. By operating on R32 refrigerant, it offers optimised thermal efficiency while reducing environmental impact thanks to a lower Global Warming Potential (GWP).

Durable, Quiet Outdoor Design

Built with a robust, weather-resistant casing, the iPAC-42-MOU is engineered for long-term external installation in all seasons. Its compact footprint allows it to integrate neatly into gardens, courtyards or rooftops without dominating outdoor spaces. Even at peak operation, noise levels remain as low as 64 dB(A), making it suitable for residential areas and other noise-sensitive environments.

Core of a Complete Multi-Split System

Supplied as a dedicated outdoor condenser, the iPAC-42-MOU is designed to be paired with compatible iPAC indoor units, forming a complete five-zone system. By replacing multiple single-split setups with one central outdoor unit, it reduces exterior clutter, simplifies maintenance and provides precision control for every room.

Energy Efficiency Rating Cooling: A++
Energy Efficiency Rating Heating: A+++
Power Rating (Ph-V-Hz): 1/220-240V/50Hz
Capacity BTU/h (Cooling) kW: 42000
Capacity BTU/h (Heating) kW: 42000
Power Input (W) (Capacity): 3810 (280-4650)
Current Input (CH) (A): 16 / 14.6
EER/SEER (BTU/hr.W) SEER: 6
COP/SCOP (W/W) SCOP: 4
Outdoor Noise Level SPL (dB(A)) (Max): 64
Outdoor Airflow (m3/h): 3850
Max. Current Rating C/H (A) Fuse Rating (Type D): 20.7 / 16.6
Unit Dimensions (mm) Outdoor (WxDxH): 946x410x810
Net Weight Outdoor (kg): 74.1
Max. Input Consumption (W): 4700
Pipe Kit Included (Metre): 5x1/4" & 4x3/8" & 1x1/2"
Copper Pipe Size (Inch): 80
Max. Length for All Rooms (m): 35
Max. Length for One Indoor Unit (m): 15
Operating Temperature (°C): -15-50
Outdoor Gross Size (mm) (WxDxH): 1090x500x885
Outdoor Gross Weight (kg): 79.5
