Air Conditioning Centre iPAC-12CS Split Console Air Conditioning System
3.5kW Cooling & 3.8kW Heating

iPAC-12CS Low-Wall Console Split AC System

Compact, Versatile Climate Management for Homes & Small Commercial Spaces

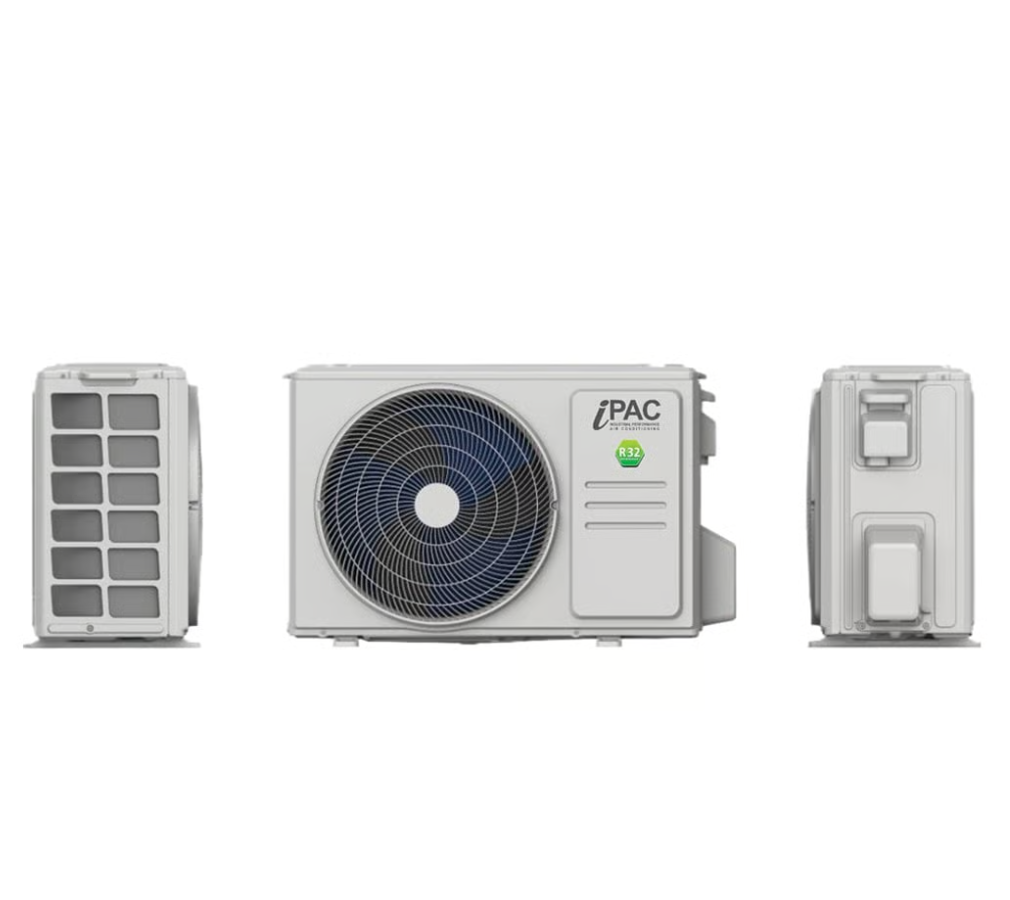

The iPAC-12CS is a complete console-style split system that combines a slim, low-profile indoor unit with a matching outdoor condenser to deliver reliable year-round heating and cooling for smaller interiors. Designed for flexibility, the unit can be positioned on a low wall or beneath a window, making it a practical option where high-wall or ceiling-mounted systems are not suitable. From domestic living spaces to small offices, studios, hospitality venues, reception areas, classrooms, and rental units, the iPAC-12CS provides efficient, unobtrusive climate control with minimal footprint.

Year-Round Performance with Inverter Efficiency

Built with inverter-driven heat pump technology, the iPAC-12CS continuously regulates output to maintain the selected temperature with accuracy and minimised energy use. Providing 3.5kW of cooling and 3.8kW of heating (12,000 BTU total), it delivers dependable performance in both hot and cold conditions. Rated A++ in cooling and A+++ in heating, it offers high-capacity operation with low running costs, making it a sustainable option for long-term use.

Low-Wall Installation, Space-Saving Design

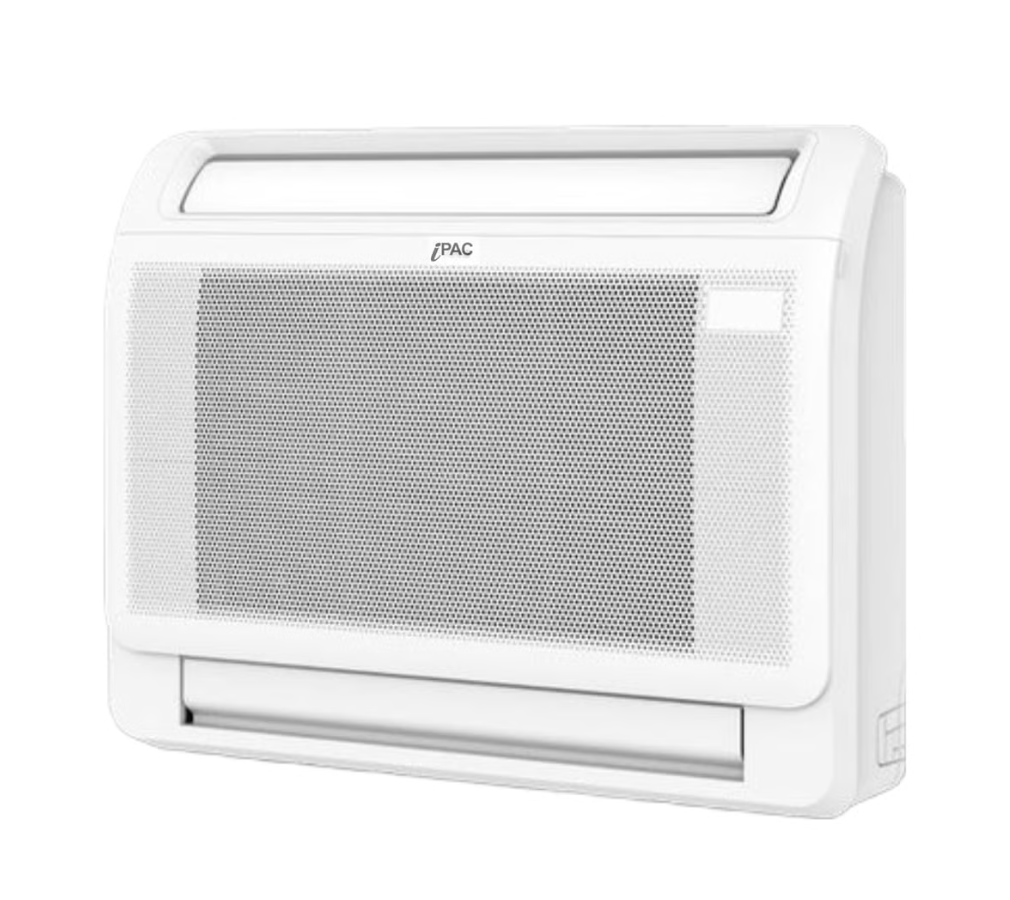

The slim indoor console is designed to sit neatly at low level or under a window, ensuring practical installation in spaces where wall height or layout restricts the use of conventional wall-mounted units. Compact and discreet, it integrates easily with modern interiors while maximising usable space.

Quiet, Controlled Airflow

With dual fans and three adjustable speeds, the iPAC-12CS adapts quickly to different conditions, from rapid cooling to quiet background airflow. Auto-swing vanes distribute air evenly across the space, eliminating hot or cold spots and maintaining balanced comfort throughout.

Straightforward Operation & Scheduling

All functions are managed through the supplied remote control, with simple adjustment of fan speed, temperature and operating mode. A 24-hour timer enables scheduled operation, allowing the system to switch on or off automatically in line with working hours or daily routines.

Integrated Filtration & Hygiene Protection

In addition to heating and cooling, the iPAC-12CS contributes to improved indoor air quality. A built-in filter captures dust and odours, while an internal anti-mould coating helps maintain hygiene and long-term performance with reduced maintenance.

Compact Coverage. Complete Comfort.

Designed for areas of approximately 16–27m², the iPAC-12CS delivers effective climate management in a compact, efficient package. By combining inverter efficiency in a reliable and versatile low-wall split-system design, it ensures year-round comfort in both residential and small commercial settings where space, efficiency and discretion are priorities.

Energy Efficiency Rating Cooling: A++

Energy Efficiency Rating Heating: A+++

Power Rating (Ph-V-Hz): 1/220-240V/50Hz

Capacity BTU/h (Cooling) (kW): 12000 / 3.5

Capacity BTU/h (Heating) (kW): 13000 / 3.8

Power Input (Capacity) (W): 1000 (170~1250)

Current Input (A) C/H: 4.52 / 4.43

EER/SEER (BTU/hr.W): 7.3

COP/SCOP (W/W): 4.0

Indoor Noise Level SPL (dB(A)) (Max): 37

Indoor Airflow (Hi/Mi/Lo) (m3/h): 650/580/490

Max. Current Rating C/H (A) Fuse Rating (Type D): 5.9 / 5.59

Net Dimension Indoor (WxDxH) (mm): 794x200x621

Max Room Size (m2): 16~23

Indoor Unit Dimensions (WxDxH) (mm): 865x280x719

Outdoor Unit Dimensions (WxDxH) (mm): 765x303x555
