Winterwarm Boxer 80 Gas Fired Agriculture Heater 230v

Winterwarm Boxer 80 Gas Fired Agriculture Heater – 230v 80kW

High-Capacity Heating for Agriculture

The Winterwarm Boxer 80 is a powerful 80kW direct gas-fired heater, developed specifically for intensive farming environments. With an airflow of 2000 m³/h and a throw distance of up to 30m, it is ideal for heating poultry houses, pig sheds, and greenhouses efficiently.

Flexible Fuel Options

This unit is compatible with natural gas (G20), propane (G31), and butane (G30), providing versatility across different agricultural setups. Its multi-point electronic ignition ensures reliable startup, while ducting options allow mixing of indoor and outdoor air for improved ventilation.

Safe & Reliable Operation

The Boxer 80 includes built-in safety features such as ionisation flame detection, burner ignition and gas valve monitoring, and dual safety thermostats to prevent overheating. An IP44-rated casing protects the unit from dust and water sprays, making it suitable for both indoor and outdoor installation.

Durable & Practical Design

The heater’s casing is made from pre-painted steel with removable panels for easy servicing. A sealed burner compartment with inspection doors ensures protection and convenient access to key components. The integrated fan can also be run independently for ventilation during warmer months.

Buy the Winterwarm Boxer 80 Gas Fired Agriculture Heater with confidence from Climate Dry — offering powerful, safe, and versatile heating for farming applications, supported by expert advice, rapid UK delivery, and our Price Match Promise.

• Nominal capacity: 80kW (273,120 BTU/hr)
• Airflow: 2000 m³/h
• Throw distance: 30m
• Thermal head: ∼145 °K
• Sound pressure level: 64 dB(A)
• Fan motor power: 0.3 kW
• Fan motor absorption: 3 A
• Electrical supply: 230V / 50Hz
• Protection rating: IP44

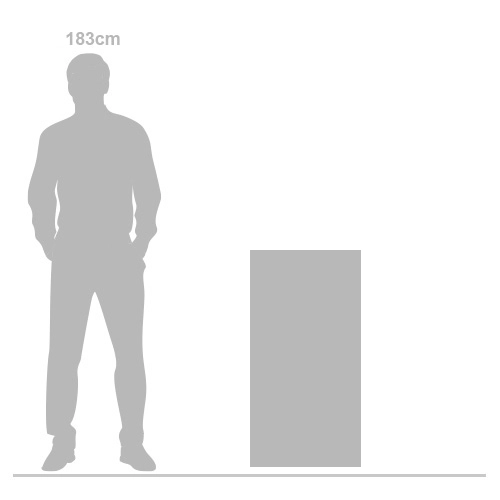

• Dimensions (H×W×D): 800 × 706 × 492 mm
• Weight: 63 kg
• Gas options: Natural gas (G20), propane (G31), butane (G30)
• Gas consumption (G20): 7.62 m³/h
• Gas consumption (G31): 3.01 m³/h
• Gas consumption (G30): 2.29 m³/h
• Supply pressure (G20): 20 mbar
• Supply pressure (G31): 37 mbar
• Supply pressure (G30): 30 mbar
• Injector diameter (G20): 7.25 mm
• Injector diameter (G31/G30): 4.30 mm
• Operating temperature range: -15°C to +35°C
• Relative humidity (max at 30°C): 95% (non-condensing)

• High heat output: 80kW capacity provides effective heating for large agricultural spaces.
• Flexible installation: Can be installed indoors or outdoors depending on site requirements.
• Long throw distribution: Airflow of 2000 m³/h delivers heat up to 30m for wide coverage.
• Fuel versatility: Operates with natural gas, propane, or butane for flexible use.
• Safety systems: Ionisation flame detection, burner monitoring, and dual thermostats ensure safe operation.
• Fan-only mode: Provides ventilation and air circulation during warm weather.
• Durable construction: Pre-painted steel panels with IP44 protection rating and service access hatches.
• Efficient performance: Direct-fired heating delivers excellent efficiency with simple maintenance.
