Trotec TAC 750 E Air Scrubber

Trotec TAC 750 E Air Scrubber

Mobile Air Cleaner

The highly versatile and portable TAC 750 E air purifier features a two-stage filtration system to efficiently deal with the dirt, dust and debris that is disturbed by construction work or restoration and drying processes.

Assisted by a powerful energy-efficient fan, the TAC 750 E presents the perfect solution for air cleaning and pollution control in small construction zones and surrounding facilities. The two-stage system is ideal for the extraction of fine mists or compressed-air applications.

This versatile device offers infinitely adjustable air volume regulation, ensuring an energy-efficient performance, adapting the operation to match the required air exchange rates for the specific environment.

Robust. compact. convenient.

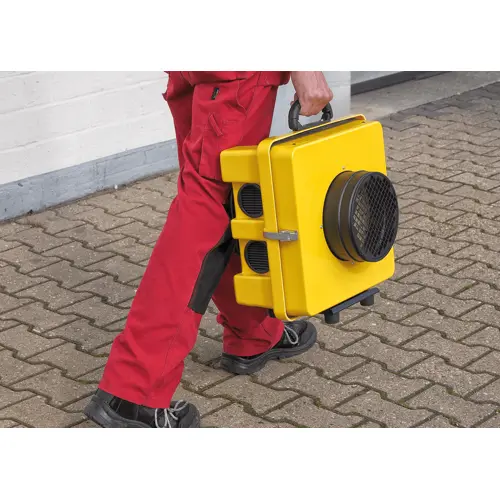

Weighing only 6kg, this professional air cleaner is one of the lightest of its class. Benefitting from its compact dimensions, the TAC 750 E can fit into even the smallest of trunks and be transported from one site to another quickly and effortlessly. Due to its plug and play design, it can also be installed just as easily.

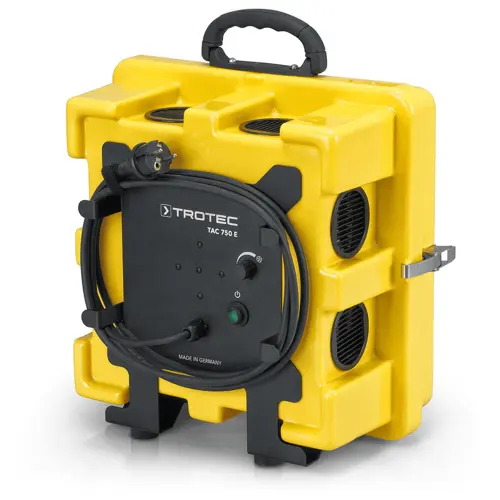

The unit features a handy cable organiser for neat and safe storage. The impact-proof and robust 100% recyclable ABS housing ensures a long-lasting air cleaning solution for the most challenging conditions.

Versatile & effective suction operation

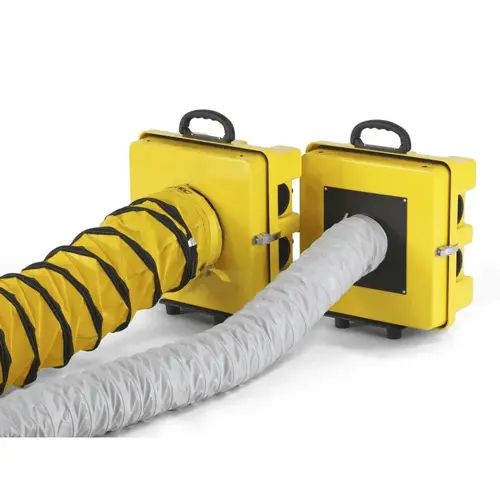

The TAC 750 E is specifically designed for effective suction operation, so it can be applied for air circulation directly in sealed-off areas, or it can be used to maintain the pressure outside of the room via a hose connection.

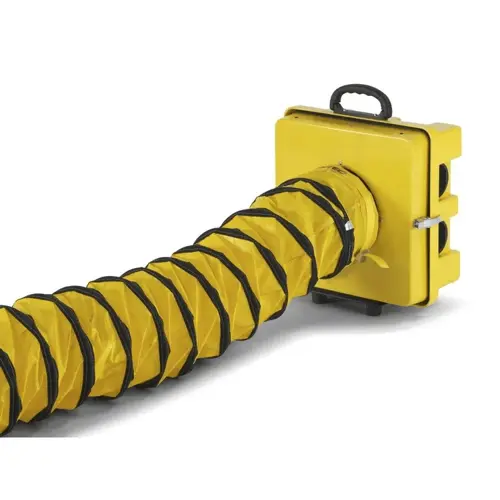

In addition to the standard connection for 203mm hoses, smaller 127mm hoses for air extraction can also be connected to the TAC 750 E using an optional hose adaptor. So, the ideal hose connection is available for any requirement ranging from pinpoint suction to maintaining the pressure.

Dust class

as per DIN EN 60335-2-69:  H

Air flow rate

Max. air volume flow [m³/h]:  750

Negative static pressure [Pa]:  720

Recommended amount of air for filter class H [m³/h]:  290

Air volume with filter surface H13 > [m²]:  2.15

Electric values

Mains connection:  230 V, 50/60 Hz

Power input [kW]:  0.12

Nominal current consumption [A]:  1

Recommended fusing [A]:  6

Electric connection

Connection plug:  CEE 7/7, H05RN-F

Cable length [m]:  3

Air transport hose connector

Suction side ø [mm]:  200

Sound values

Distance 1 m [dB(A)]:  77

Fan

Radial:  Yes

stages:  Infinitely variable

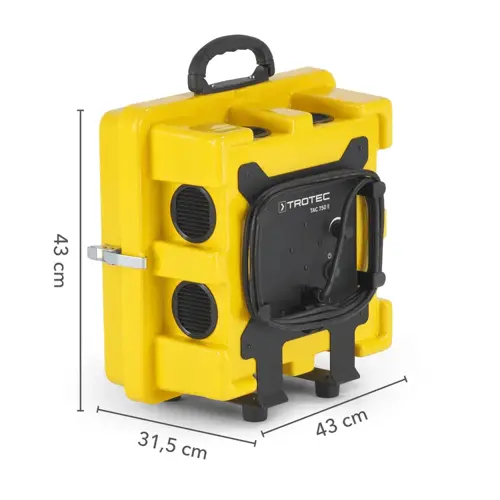

Dimensions

Length (packaging excluded) [mm]:  315

Width (packaging excluded) [mm]:  430

Height (packaging excluded) [mm]:  430

Weight

(packaging excluded) [kg]:  6

Equipment, features and functions

Filter

combination Coarse dust (≤ 3 ACH):  G4

Suitable for rooms sized up to Coarse dust (≤ 3 ACH) [m³]:  250

combination Fine particulates (≤ 3 ACH):  G4

Suitable for rooms sized up to Fine particulates (≤ 3 ACH) [m³]:  250

combination Suspended matter (≤ 10 ACH):  G4 + H13

Suitable for rooms sized up to Suspended matter (≤ 10 ACH) [m³]:  25

combination Hygienic areas (≥ 15 ACH):  G4 + H13

Suitable for rooms sized up to Hygienic areas (≥ 15 ACH) [m³]:  16

Mobility

Carry/transport handle(s):  Yes

Non-marking rubber feet:  Yes

Stackable:  Yes

Powerful Premium Fan: The professional air scrubber presents the perfect solution for air cleaning and pollution control in small construction zones.

Effective Suction Operation: For efficient air circulation in sealed-off areas, or to maintain the pressure outside of the room via a hose connection.

Two-Stage Filtration System: Ideal for dust collection, or the extraction of fine spray paint mists or compressed-air applications.

Infinitely Adjustable Air Volume: Allows the user to adapt the operation to match the required air exchange rates for the specific environment.

Robust, Compact & Lightweight: Weighing only 6kg, the TAC 750 E can be easily transported from site to site with ease, protected from bumps along the way within its impact-proof 100% recycable ABS housing.

Low-Maintenance Construction: Fitted with quick release fasteners, filters can be swiftly changed. Also featuring a handy cable organiser for neat and safe storage. The simple plug and play design permits quick and easy installation.

Exceptionally Lightweight: Weighing only 6kg, this professional air cleaner is one of the lightest in its class, so it can be transported from site to site quickly and effortlessly and, due to its plug and play design, it can be installed just as easily.
