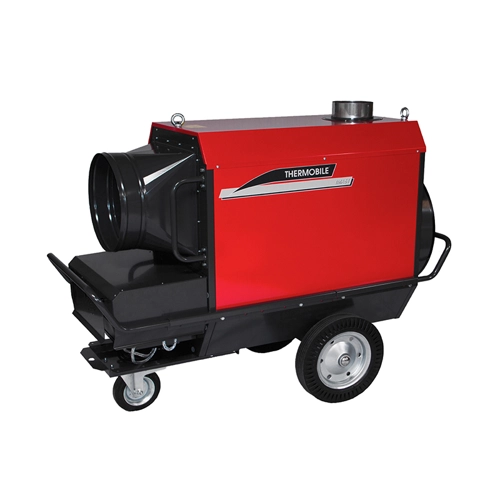

Thermobile IMA 61 Indirect Oil Fired Space Heaters 65kW

Thermobile IMA 61 Indirect Fired Space Heaters

Large portable industrial heaters for construction sites, warehouses & more

The Thermobile IMA 61 is a large industrial space heater, designed for heating areas on construction sites, as well as warehouses, factories, agricultural buildings, large marquees & events and more. As it is an indirect fired heater, it throws out only clean-fume free warm air, while fumes are exhausted out of the top of the unit. Lengths of ducting can be fixed to this heater in order to vent the warm air over long distances and into specific spaces, making it safe to heat confined spaces on site with little ventilation.

Two models of the Thermobile IMA 61 indirect space heater are available. The IMA 61 AX features an axial fan which offers up to 130 Pa pressure buildup, which allows it to be used with single lengths of ducting with few curves. The IMA 61 RAD features a radial fan which offers up to 250 Pa, which allows multiple lengths of ducting to be used, to send warm air to separate locations, further away from the heater.

This high quality diesel space heater is designed for industrial use. It offers large volumes of clean warm air, an air outlet temperature circa 40-60°C, and it has a high efficiency heat exchanger offering 92% efficiency. The combustion chamber is heat resistant up to 850°C and it features a tigerloop as standard - a fuel filter with condensate separator - as well as an intercal industrial burner with flowcontrol. This heater also has a thermostat connection point, which offers the capability to automatically switch the heater on and off as required in order to maintain a set temperature, saving on fuel and running costs, and adding convenience. The fan on this space heater stops at temperatures below 40 °C, to prevent it from circulating cold air when starting up. Constant ventilation is also possible with an extra switch position.

Despite its industrial heating capabilities, the Thermobile IMA 61 indirect heater is also a convenient size. Its portable design, with large wheels and a handle, make it easy to move around a site and put into position, while the slim profile allows it to fit through door widths of 80cm.

Please note: This heater features no internal fuel tank. An external fuel tank is required.

Thermobile IMA-61 AX Specifications
Part number: 41.722.800
Model: IMA 61 AX
Heat Capacity: 65 kW
Fuel consumption oil (L/hr): 6.5
Heated air flow (m3/hr): 4000
Max ventilator backpressure: 130
Power consumption (Amps): 3.3 / 230 V
Warm air outlet cone Ø (mm): 400
Flue connection Ø (mm): 180
Thermostat connection: YES
Dimensions (cm): 162 x 71 x 128
Weight: 210 kg

Thermobile IMA-61 RAD Specifications
Part number: 41.722.300
Model: IMA 61 R
Heat Capacity: 65 kW
Fuel consumption oil (L/hr): 6.5
Heated air flow (m3/hr): 4000
Max ventilator backpressure: 250
Power consumption (Amps): 6.5 / 230 V
Warm air outlet cone Ø (mm): 400
Flue connection Ø (mm): 180
Thermostat connection: YES
Dimensions (cm): 199 x 71 x 128
Weight: 245 kg

65kW Heat Capacity: Great capacity to heat areas on construction sites, as well as workshops, warehouses, agricultural buildings, large marquees, events & more.

Clean Warm Air: The Thermobile IMA 61 is an indirect space heater, so it produces only clean, dry, fume-free warm air. This makes it ideal for heating enclosed, poorly-ventilated spaces safely.

Axial or Radial Fan: The axial version, the IMA 61AX, generates up to 130Pa of pressure build up, whereas the radial fan version, IMA 61RAD, offers up to 250Pa of pressure. The AX version is ideal for blowing warm air trhough single lengths of ducting with few curves. The RAD version is ideal for blowing air down multiple lengths of ducting and over longer distances.

400mm Air Outlet Cone: Allows sections of ducting can be attached to this heater, in order to direct the clean warm air into the space that you need to heat.

180mm Flue Connection: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely exhaust fumes away from the space.

Portable Design: Large wheels and a handle make the heater very portable. It is easy to transport, position and re-position when required on site. its slim profile allows it to fit through 80cm wide doorways.

Thermostat Connection: An optional heavy duty thermostat can be connected to this heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.

Tigerloop Included: This heater features no internal fuel tank. It is designed to be connected to an external fuel tank of your choice. The included tigerloop removes any air from the fuel as it enters the heater.

Fan Only Switch: Allows the fan to operate without heat in order to ventilate areas when required.
