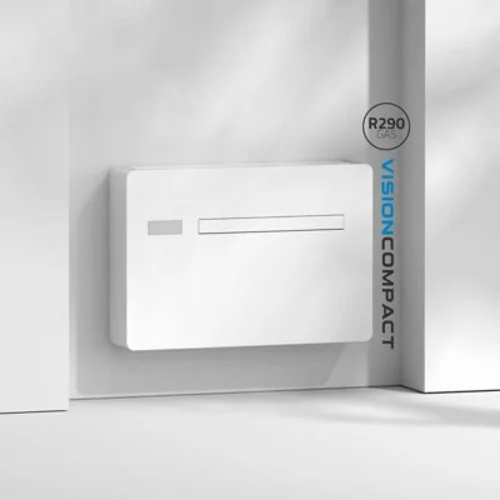

Powrmatic Vision Compact 2.3 DW Air Conditioner & Heat Pump

The Powrmatic Vision Compact 2.3 DW is the ultimate all-in-one air conditioning and heating solution. This smart space-saving unit provides efficient climate control all year round with intelligent technology in a contemporary slimline design.

Efficient heating & cooling performance

Featuring an inbuilt heat pump, the Vision Compact efficiently heats and cools spaces from -6°C to 31°C. The 2.3kW unit provides ample heating and cooling power for rooms up to 15m2, while the Dual Power function allows the output to be boosted up to 2.4kW heating and 2.35kW cooling when required. The system is developed with DC inverter technology and eco-friendly R290 refrigerant gas, ensuring maximum energy efficiency with low environmental impact. It boasts an impressive A+ energy rating for both heating and cooling. Plus, with sound levels as low as 27dB(A), it operates silently for a peaceful ambience.

Compact & discreet installation

At just 810mm wide and 165mm deep, the Vision Compact is designed for confined spaces, with no external condenser required. The stylish slimline profile with soft rounded corners is finished in smooth polished white PPC to complement contemporary interiors. It can be installed neatly under windows or in narrow wall spaces, and the vent kit, wall bracket, and template are included. Retrofit installation takes just hours with zero downtime, which is ideal for hotels. The built-in condenser preserves aesthetics as only two small, discreet inlet/outlet vents exist. It's the ultimate modern air conditioning solution with four flexible control options, including Wi-Fi.

Environmentally Friendly

An air-to-air heat pump is an investment in all year-round comfort, lower costs and a greener planet.

An air-to-air heat pump can deliver 3 to 4 times more energy than it consumes in electricity.

That means significant savings on your energy bills compared to traditional heating systems.

Cooling Capacity kW: 1.73
Cooling Capacity - Dual Power Max / Min kW: 2.35 / 0.7
Heating Capacity kW: 1.71
Heating Capacity - Dual Power Max / Min kW: 2.4 / 0.75
Power Input In Cooling W: 570
Power Input In Heating W: 540
Dehumidification Capacity l/h: 0.7
Power Supply Voltage V/F/Hz 230/1/50
EER W/W: 3.01
COP W/W: 3.15
Energy Efficiency Ratio When Cooling: A
Energy Efficiency Ratio When Heating: A+
Dimensions (W x H x D) mm: 810 x 549 x 165
Max Noise Level On High @1m Distance dB(A): 56
Wall Hole Diameter / Condensate Drain mm: 162 / 18
Distance Between Holes In Wall mm: 210
Refrigerant Gas: R290

Built-in heat Pump: This unit provides efficient heating and cooling from -6°C to 31°C for year-round climate control without needing an external unit.

Slimline Design: At just 810mm wide, the compact size discreetly fits confined wall spaces and smaller rooms.

Silent Operation: With noise levels as low as 27dB(A), it won't disturb sleep or work environments.

A+ Energy Rating: The DC inverter technology and R290 refrigerant ensure maximum energy efficiency for lower running costs.

Dual Power Function: Output can be boosted up to 2.35kW cooling and 2.4kW heating when required.

Wi-Fi Control: Manage multiple units remotely via an app on your smartphone or tablet.

Quick Retrofit Installation: Designed for pre-existing systems, taking just hours with zero downtime - ideal for hotels.
