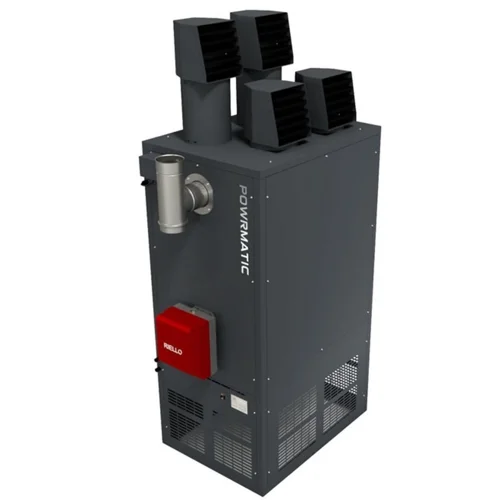

Powrmatic CPx300 Upright Oil Fired Cabinet Heater - 3 Phase

Unparalleled Heating Performance

The Powrmatic oil fired cabinet heater is a paragon of industrial heating, delivering an impressive 300kW output. This unit is tailored for expansive industrial environments, with its remarkable 20,736 m³/h airflow effortlessly warming spaces. Its ability to maintain consistent temperatures across vast areas makes it essential for large workshops, warehouses, and manufacturing facilities where precise climate control is paramount.

Advanced Air Distribution Technology

The CPx300's sophisticated quad-outlet distribution system is at the heart of its efficiency. Four adjustable 457mm heads, each featuring variable louvres, offer unmatched control over heat dispersion. This design ensures warmth reaches every corner of your industrial space, boasting an exceptional 48-metre throw. The 140Pa fan pressure enhances air circulation, promoting uniform temperatures even in the most challenging layouts.

Adaptable Fuel System

This oil fired cabinet heater's versatility shines through its dual-fuel capability. This heater adapts to fuel availability and cost considerations and is engineered to operate efficiently on both 35sec oil (red diesel) and 28sec oil (kerosene). This flexibility ensures uninterrupted operation, even in supply chain fluctuations or market volatility.

Environmental Compliance and Efficiency

Despite its substantial output, the CPx300 adheres to strict environmental standards. Incorporating high/low burner technology with the advanced Riello Gulliver burner reduces NOx emissions while maintaining high efficiency. This eco-conscious approach meets ErP regulations and contributes to lower operational costs.

Intelligent Climate Management

The integrated MC200 controller elevates the CPx300 to an intelligent climate management system. Features such as password protection, digital programmable timelock, and thermostat control offer precise management of heating requirements. The fan-only option adds versatility, allowing for ventilation during warmer periods without heat generation.

Robust Industrial Design

Built to withstand harsh industrial environments, the CPx300 features a durable outer casing protecting critical internal components. Its substantial build, weighing 556kg and measuring 3307 x 1104 x 1599 mm, underscores its capacity to handle demanding applications. The 200mm diameter flue system and 3/8 inch BSP/Rc fuel connection ensure seamless integration with existing infrastructure.

Model: CPx300
Output: 300kW
Input (nett CV) 35sec oil: 316.1kW
Old Powrmatic Reference: CP1000
Thermal Efficiencies (Nett CV): Min 91.5%
NOx Seasonal (Gross): tbc
Seasonal Space Heating Efficiency (% hs,h): tbc
Airflow: 5.76 m³/s (20,736 m³/h)
Adjustable Heads: 4
Head Size: 457 mm
Air Throw: 48m
Pressure (Standard Fan): 140Pa
Power Supply: 400v / 3ph / 50Hz
Motor Power: 7.5kW
Run: 11.4 amp
Start: 50.1 amp
Connection (Oil): 3/8” BSP/Rc
Consumption Standard Outputs: 31.36 l/h
Overall Dimensions H x W x D (excluding burner): 3307 x 1104 x 1599 mm
Installation Clearances (Front / Side / Blank Side / Rear): 1000 / 1000 / 150 / 1000 mm
Flue Diameter: 200mm
Combustion Air Spigot Diameter: 150mm
Noise Level: 77 dB(A)
Nett Weight: 556kg
(Noise levels are applicable to standard models and are measured 5m from appliance and in free field conditions.)

Guarantees:
Powrmatic CPx heaters are provided with a comprehensive guarantee covering both the heater and the heat exchanger. For United Kingdom sales the heater has the benefit of a two year parts and one year labour guarantee whilst the heat exchanger assembly has a ten year time related warranty. All guarantees are subject to terms and conditions

Powerful 300kW Output: Efficiently heats vast industrial spaces with 20,736 m³/h airflow.

ErP Compliant Technology: Pre-tested components guarantee optimal efficiency and performance.

Advanced MC200 Controller: Offers smart features for tailored climate management.

Eco-Friendly Operation: Designed for reduced NOx emissions and improved efficiency.

Quad 457mm Air Distribution: Ensures precise and even heat dispersion across expansive areas.

Dual-Fuel Flexibility: Operates on diesel or kerosene for uninterrupted heating.

140Pa Fan Pressure: Provides effective air circulation for large-space heating.

Comprehensive Warranty: Two-year parts, one-year labour, and ten-year heat exchanger coverage.
