Master BV 170 Indirect Oil Fired Space Heater
49kW

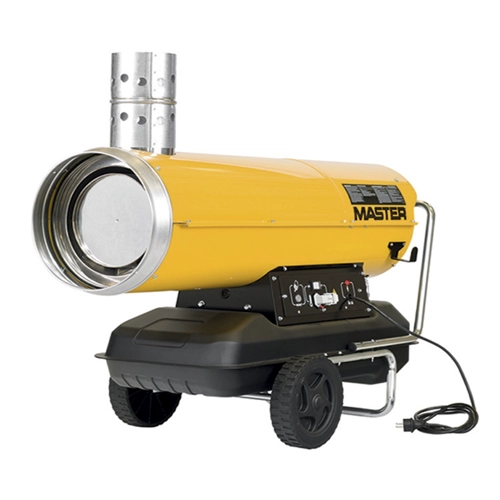

Master BV 170 Indirect Oil Fired Space Heater

Efficient heater for commercial & industrial applications

The Master BV 170 Indirect Oil Fired Space Heater is extremely durable and robust, with a stainless steel combustion chamber, heavy-duty metal outer casing, thermally protected motor, overheat thermostat and three separate filters for oil, suction and inlets. It offers excellent, consistent performance in challenging environments, and it is suitable for commercial and industrial heating in areas such as warehouses, factories, marquees, halls, modular buildings, construction sites, and more.

The Master BV 170 is a 49kW indirect space heater that can be set up outside a space you need to heat, with the fumes produced during combustion expelled via a flue, while the safe, fume-free warm air is directed to where it is required. The heater can be used with 3m or 7.6m ducting, and it can also be used with an optional room thermostat, which gives you remote control over the climate.

This space heater is mounted directly onto a trolley with robust wheel and a handle so that you can move it around sites quickly and easily without heavy lifting. It features a 65-litre fuel tank and a consumption rate of 4.7-litres per hour, so it can be used to heat spaces for long periods. The BV 170 is easy to use and has an external pump and accessible components for easy maintenance. Diagnostic LEDs make it easy to recognise problems and faults before they create an issue.

Master BV 170 Indirect Oil Fired Space Heater Specs:
Heating Power: 49kW / 167,200 Btu/h / 42,100 kcal/h
Airflow: 1800 m³/h
Fuel Tank Capacity: 65L
Fuel Consumption: 4.7 l/h
Fuel Autonomy: 14h
Thermostat Control: Analogue or Digital
Power Supply: 220-240/1ph/50 V/Hz or dual voltage (230v/110v)
Electric Power: 0.8 kW
Rated Current: 3.5 A
Protection: IP41
Flue Tube: 150 Ø mm
Flue Tube: 34 Ø cm
Product size (l x w x h): 1350 x 575 x 1000
Weight: 65kg

49kW Max Heating Capacity: The Master BV 170 Indirect Oil Fired Space Heater can deliver 49kW of heat to warm up large areas quickly and efficiently.

230v Or Dual Voltage (110v/230v) Power Supply: 230v model is designed for use with standard 220-240v power supplies, like a standard domestic plug socket, and the dual voltage model can be used with both 110-120v and 220-240v supplies, ideal for constructions sites and event spaces.

Supplies Clean Warm Air: The Master BV 170 provides a large volume of 100% clean, dry and fume free warm air. It is safe and suitable for safe for enclosed, poorly ventilated areas, like marquees, tents, halls, and more.

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.

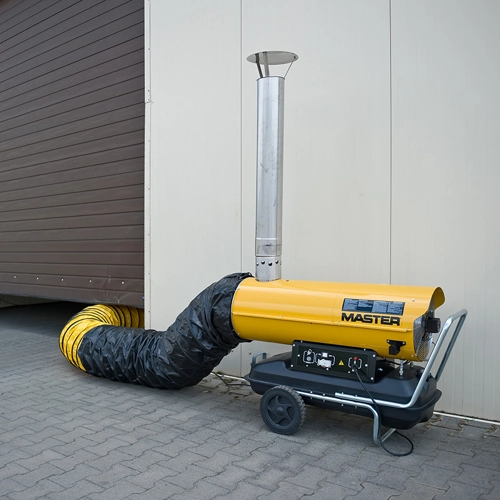

Ducting Connection: Lengths of ducting can be attached to this heater to direct the clean warm air into the space that you need to heat. The ducting directs just the clean air into an area, while the combustion fumes are expelled outside safely via the flue exhaust.

Thermostat Connectivity: An optional thermostat can be connected to the heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required to maintain the set temperature, saving on fuel consumption.

Overheat Thermostat: Shuts down the heater automatically if it overheats, to prevent accidents.

High Quality Features: Thermally protected motor, three oil filters (oil pump filter, suction filter and inlet filter), electronic flame control with photocell, stainless steel combustion chamber, oil tank with level indicator and diagnostic LED help to ensure reliable, effective and safe performance.

Tough & Robust Heater: The Master BV 170 is built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more. It has a stainless steel combustion chamber, a steel frame with metric bolts, and a heat exchanger made from stainless steel pipes.

Portable Design: The heater is mounted on a wheeled trolley so you can move it around easily. It also has forklift slots and a hook for crane hanging, allowing you to lift the heater on and off transport.
