Ecor Pro DH800 DryFan 220v Desiccant Dehumidifier 8 Litres

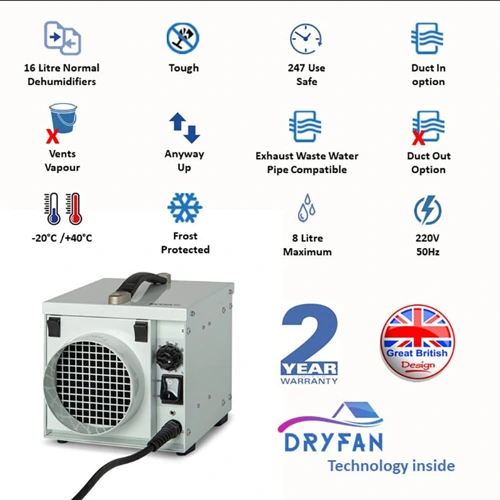

Ecor Pro DH800 DryFan Desiccant Dehumidifier

Compact & robust dehumidifier designed for cold environments

The Ecor Pro DH800 DryFan desiccant dehumidifier is compact, robust and effective. It is ideal for use in cold, unheated spaces, and has an operating temperature range of -20℃ to +40℃ so it is effective in extreme conditions where refrigerant dehumidifiers fail to perform. It is designed for continuous use, to maintain dry environments and prevent moisture damage 24/7. This desiccant dehumidifier has an extraction capacity of up to 8 litres per day and has equivalent performance to a 16 litre refrigerant dehumidifier at 18°C. It features a rotary wheel of desiccant material which absorbs moisture from the air and it is ideal for use in spaces such as lofts, basements, cellars, crawl spaces, changing rooms, drying rooms and more.

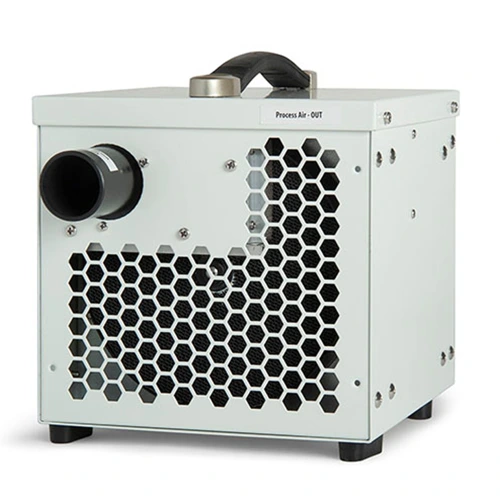

The Ecor Pro DH800 dehumidifier features an epoxy coated steel housing, with inner components also heat treated for strength and durability. It features no internal water tank. Instead, moisture is extracted from the air by the desiccant material and is vented out of the dehumidifier as water vapour. This desiccant dehumidifier can be used as a portable machine or as a fixed unit. Its compact size allows it to be installed in tight spaces. Ducting can be attached to the 125mm air inlet and the 45mm wet exhaust air outlet on this dehumidifier, to draw air in from a separate space and vent wet exhaust air out of the space. This model also has an integrated humidistat dial, which allows you to set a required relative humidity level in the space and the dehumidifier will automatically switch on and off as required, to maintain the set humidity level. A remote humidistat on a 5m cable is available as an accessory, which is ideal for use when the dehumidifier is installed in an area where it cannot easily be reached, such as on a ceiling or in a crawl space.

The Ecor Pro DH800 DryFan desiccant dehumidifier can be used to manage humidity levels in spaces to prevent condensation build-up, damp and mould, to dry wet materials, clothing and equipment, or to prevent moisture damage to sensitive equipment and machinery.

Ecor Pro DH800 DryFan Desiccant Dehumidifier Specs
Max extract: 8L
Technology: Desiccant
Colour / Material: White / Mild Steel Epoy Paint
Weight: 4.8 kg

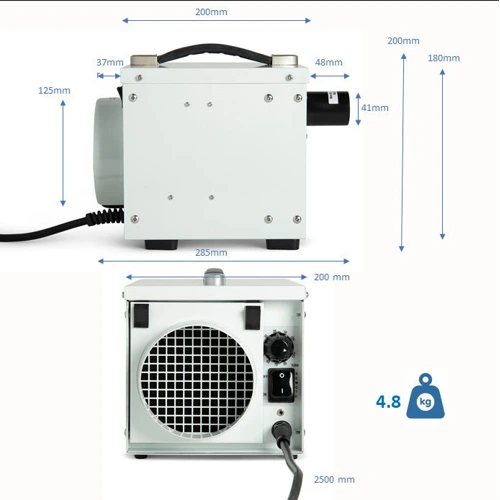

Dimensions: 190mm × 190mm × 190mm
Power / Plug: 350W, 220V, 50Hz / 1.5A
(220v 50Hz supply can be run off a 12v DC-220v AC converter or 110v to 220v transformers)
Cord length: 3m
Duct sizes: 40mm - 125mm
Swimming pool ready: No
Humidistat inside / Humidistat option: Yes / Yes

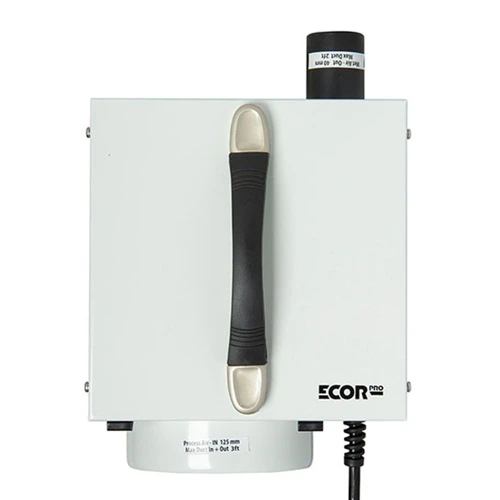

Carrying handle / Water container: Yes / No
Fan speeds / Sound: 1 / 49dB
Operating temp: -20°C to 40°C
Power out restart / Works from DC-AC convertor: Yes / Yes
Airflow M3/HR: 90 process / 14 exhaust
Approval: CE

Downloads

Ecor Pro DH800 DryFan Desiccant Dehumidifier - Instruction Manual

Extracts Up To 8 Litres Per 24 Hours: Great capacity for drying and managing humidity levels in garages, lofts, basements, crawl spaces, changing rooms, drying rooms and more. Performance is equivalent to a 16 Litre compressor dehumidifier @ 18°C.

Epoxy Coated Steel Housing: Tough and robust steel construction with heat treated parts for strength and durability.

Zeolite Desiccant Material: Effectively absorbs moisture from the air, even in extremely low temperatures.

Operating Temperature Range of -20°C to +40°C: Wide operating temperature range makes the dehumidifier suitable for unheated spaces where a refrigerant dehumidifier would not be able to perform.

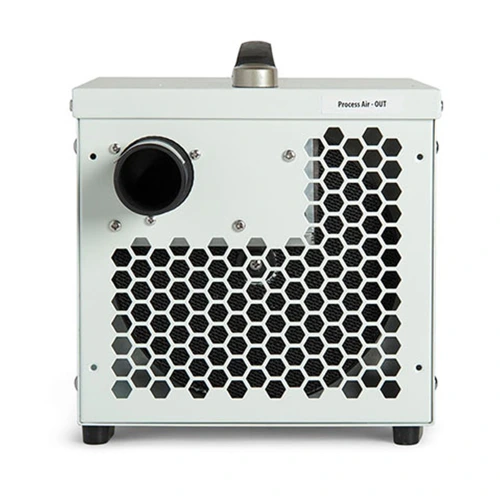

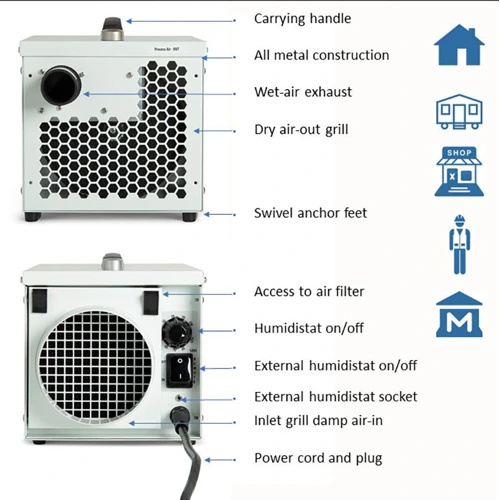

3 Hole Design: Air in, dry air out & wet air exhaust. Moisture is absorbed by the desiccant material and vented out of the machine as water vapour. This means there is no internal water tank to empty and the dehumidifier can be left to run 24/7.

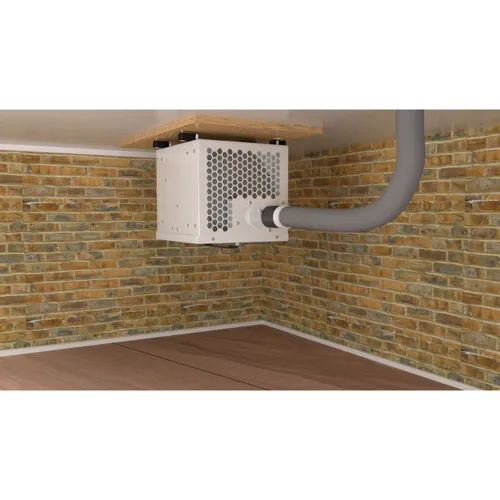

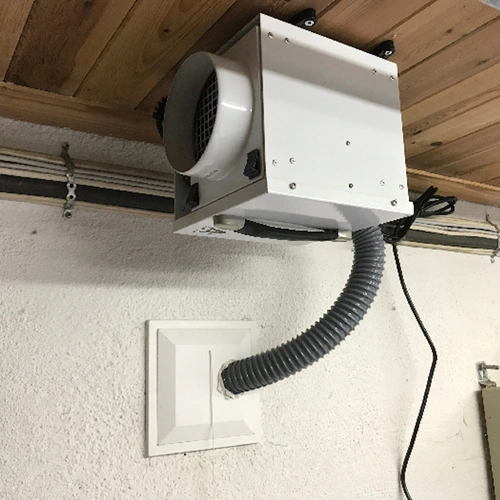

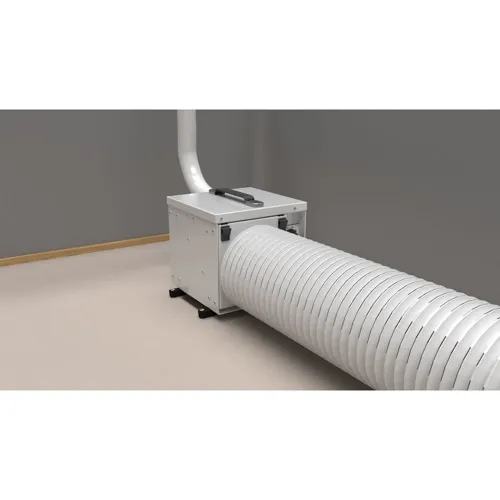

Duct Air In & Out: Ecor Pro desiccant dehumidifiers feature no internal water tank. Moisture is vented out of the unit as water vapour. Input air and wet exhaust air can be vented using ducting. This means air can be ducted in from other areas in a building and the moisture can be exhausted outside.

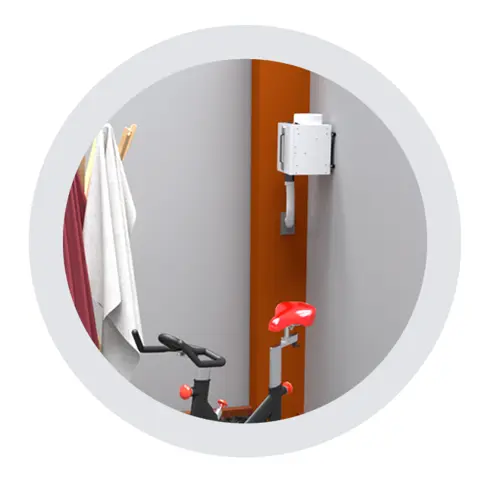

Compact Size: The Ecor Pro DH800 can be used as a portable or installed unit. It can be used in very small spaces, such as lofts, cupboards, utility rooms, crawl spaces and more.

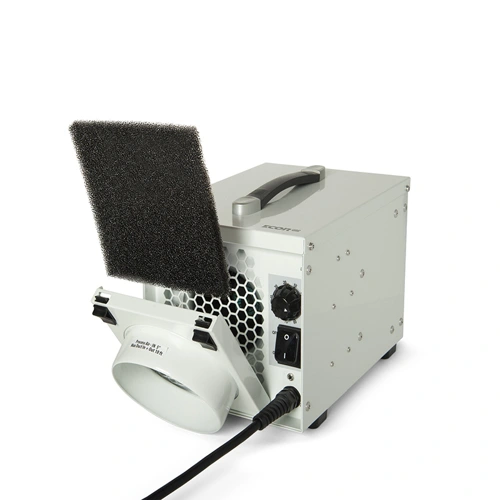

Dust Filter: Traps dust to prevent it from clogging up the dehumidifier or from being circulated. The filter can be cleaned easily or replaced when required.

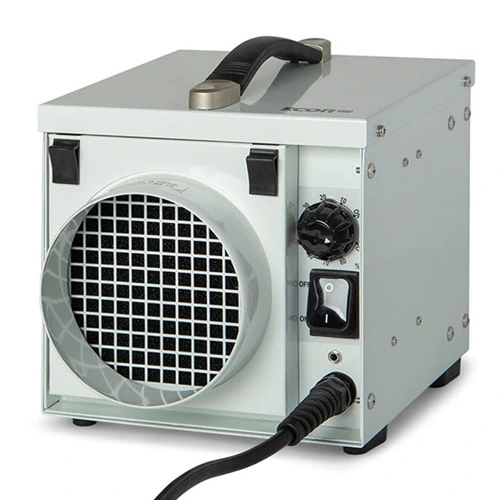

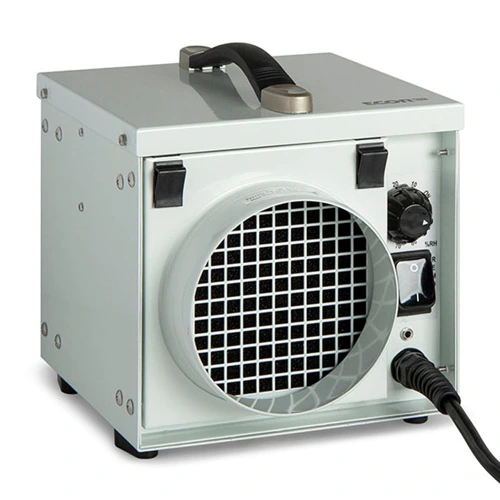

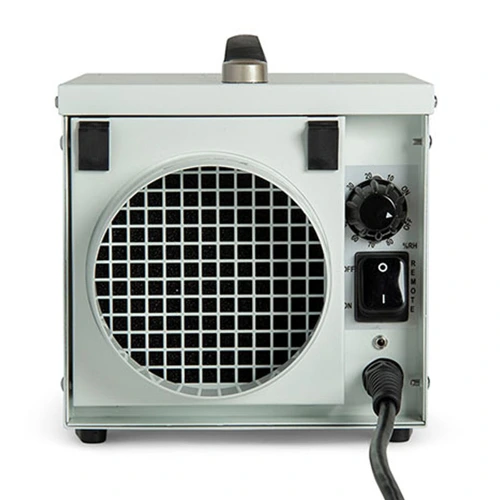

Humidistat Dial: Allows you to set a required humidity level in the space and the dehumidifier will switch on and off automatically in order to reach & maintain the desired humidity level. This adds convenience and saves money on running costs.

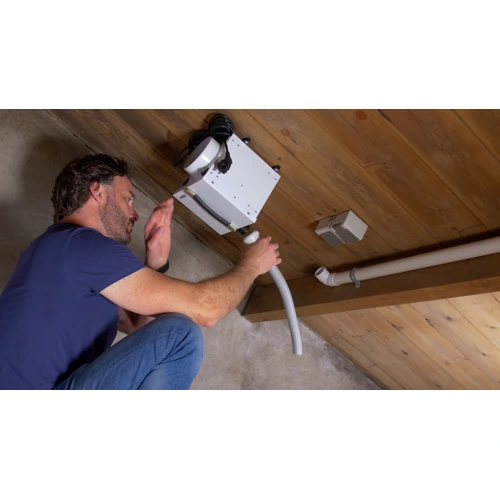

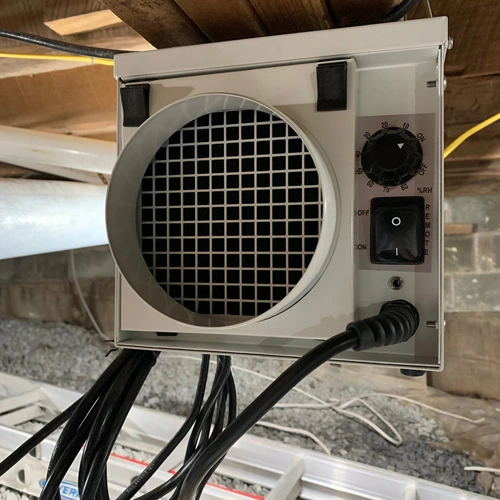

Remote Humidistat Available: A remote humidistat on a 5m cable is also available as an optional accessory - ideal for applications where the dehumidifier is installed in a space that can not be easily accessed, such as high up on a ceiling or in a crawl space.

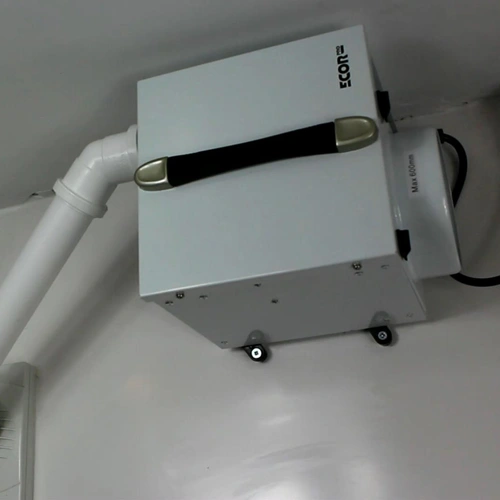

Adjustable Feet: Anti scratch plastic feet swivel out to provide anchor points for the dehumidifier if it is being installed on a wall or ceiling.

Auto Reset: If there is an interruption to the power supply, the Ecor Pro DH800 dehumidifier will continue to operate as soon as the power is restored. Ideal for drying in spaces with unreliable power supply.

5m Power Cord: Long power cable to allow for installation in difficult spaces, such as crawl spaces and lofts.

Long Service Life & Easy Repair: Ecor Pro dehumidifiers are high quality pieces of equipment, built to last. They are designed to provide years of reliable service. They are very easy to maintain and service when required. The easy to access design keeps service simple and costs low.
