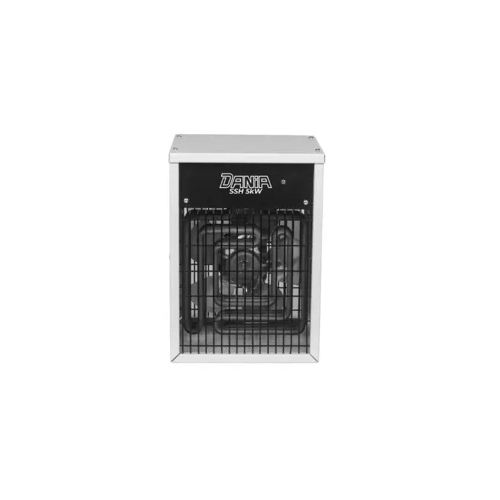

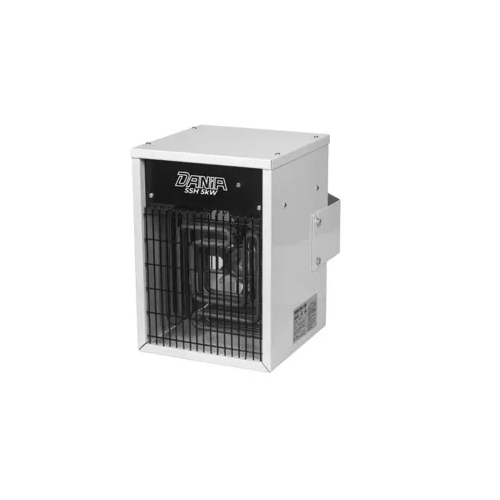

Dania SSH 22kW Wall Mounted Electric Fan Heater - 3 Phase

Dania SSH Wall Mounted Electric Fan Heater – 3 Phase 5kW–22kW

Safe & Efficient Electric Heating

The Dania SSH is a robust wall-mounted fan heater designed for industrial and commercial use. Available in 5kW, 9kW, 15kW, and 22kW models, these heaters deliver reliable heat output for workshops, garages, warehouses, factories, and other demanding spaces.

Powerful & Flexible Operation

Each unit provides two heat settings (full or half power) and three fan speeds, giving users the flexibility to tailor heating performance to their environment. A ventilation-only mode allows the fan to circulate air without heat, ideal for warmer months.

Built-In Safety & Control

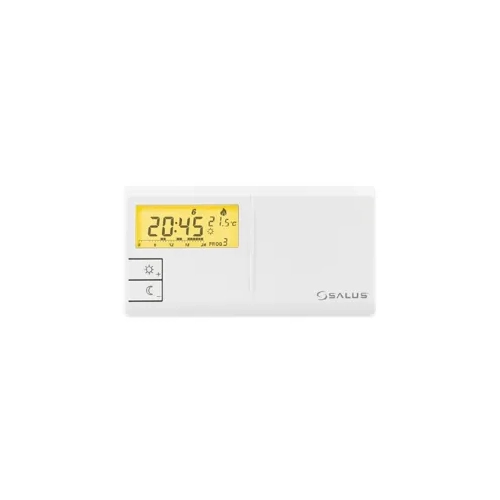

All models feature an integrated thermostat for precise temperature management and an overheat protection system that automatically shuts the heater down if required. The heaters are supplied with a wired wall control panel, allowing easy access even when the unit is mounted at height.

Durable Wall-Mounted Design

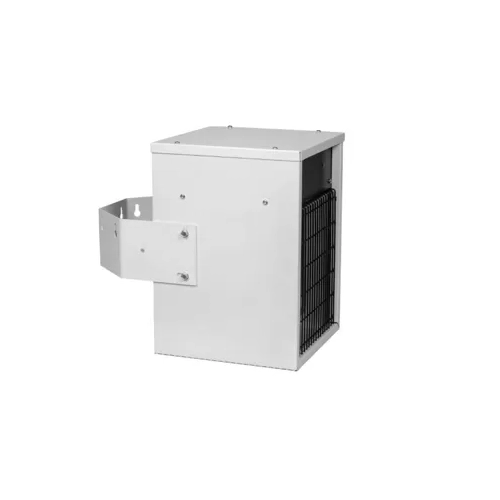

The corrosion-resistant steel housing is powder-coated for durability. Units are supplied with an adjustable wall mounting bracket, allowing horizontal and vertical positioning so airflow can be directed exactly where it is needed.

Industrial-Grade Power Supply

Operating on a 400V three-phase supply, these fan heaters deliver consistent and efficient heating output while maintaining low noise levels to avoid workplace disruption.

Buy the Dania SSH Wall Mounted Electric Fan Heater with confidence from Climate Dry — delivering safe, efficient heating solutions with expert advice, rapid UK delivery, and our Price Match Promise.

SSH 5kW

• Heating power: 0 / 2.5 / 5.0 kW
• Ventilation mode: Yes
• Power supply: 3×400V / 50Hz
• Rated current: 8.15 A
• Fan diameter: 230 mm
• Airflow: 400 m³/h
• Dimensions (L×W×H): 255 × 385 × 355 mm
• Net weight: 8.15 kg
• IP rating: IP44

SSH 9kW

• Heating power: 0 / 4.5 / 9.0 kW
• Ventilation mode: Yes
• Power supply: 3×400V / 50Hz
• Rated current: 13 A
• Fan diameter: 300 mm
• Airflow: 900 m³/h
• Dimensions (L×W×H): 335 × 460 × 445 mm
• Net weight: 16.32 kg
• IP rating: IP44

SSH 15kW

• Heating power: 0 / 7.5 / 15.0 kW
• Ventilation mode: Yes
• Power supply: 3×400V / 50Hz
• Rated current: 21.6 A
• Fan diameter: 300 mm
• Airflow: 1300 m³/h
• Dimensions (L×W×H): 385 × 460 × 480 mm
• Net weight: 19.68 kg
• IP rating: IP44

SSH 22kW

• Heating power: 0 / 11 / 22 kW
• Ventilation mode: Yes
• Power supply: 3×400V / 50Hz
• Rated current: 32 A
• Fan diameter: 350 mm
• Airflow: 2400 m³/h
• Dimensions (L×W×H): 435 × 560 × 510 mm
• Net weight: 27.1 kg
• IP rating: IP44

• Range of outputs: Available in 5kW, 9kW, 15kW, and 22kW models to suit different applications.
• Dual heat settings: Operates at full or half power for efficient energy use.
• Multiple fan speeds: Three-speed fan for customised airflow and comfort.
• Ventilation switch: Fan-only operation for use during warmer periods.
• Integrated thermostat: Maintains consistent temperature automatically.
• Safety protection: Overheat thermostat prevents damage or accidents.
• Durable build: Powder-coated steel housing with IP44 protection for harsh environments.
• Flexible mounting: Supplied with an adjustable bracket for vertical or horizontal airflow direction.
• Wired control panel: Remote panel for convenient operation even when mounted overhead.
