Consort Screenzone Commercial Recessed Air Curtains

Consort Screenzone Commercial Recessed Air Curtains – 3kW to 12kW

Efficient Climate Control for Commercial Spaces

The Consort Screenzone recessed air curtain range is designed for installation above doors and windows in suspended ceilings, providing a steady stream of downward airflow. By preventing cold air from entering and warm air from escaping, these units help maintain consistent indoor temperatures while reducing energy usage and heating costs.

Flexible Heating Output

Available in 3kW, 4.5kW, 6kW, 9kW, and 12kW capacities, with models suitable for both single and 3-phase power supplies, the Screenzone range offers a versatile solution for a wide range of premises including shops, offices, hotels, and commercial buildings.

Compact & Reliable Design

With a slim depth of just 155mm, these recessed air curtains require only 210mm of recess space for installation, making them suitable for shallow ceiling voids. Each unit includes a white grille, three heat settings, and a fan-only mode for use during warmer months.

Safety & Control

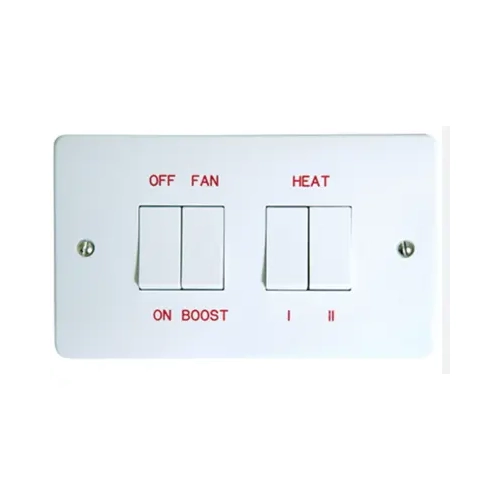

All models come equipped with a built-in thermal overload cut-out for protection against overheating. A wired remote switch is supplied for convenient operation, making it easy to adjust settings even when the unit is installed overhead.

Buy the Consort Screenzone Commercial Recessed Air Curtains with confidence from Climate Dry — combining effective temperature regulation with a discreet, recessed design, supported by expert advice, rapid UK delivery, and our Price Match Promise.

RAC0603 – 3kW

• Heat output: 3kW
• Max mounting height: 2.8 m
• Power supply: Single phase
• Dimensions (L×W×D): 634 × 339 × 155 mm
• Weight: 9.5 kg
• Noise level: 55 dB(A)

RAC0604 – 4.5kW

• Heat output: 4.5kW
• Max mounting height: 2.8 m
• Power supply: Single phase
• Dimensions (L×W×D): 634 × 339 × 155 mm
• Weight: 9.5 kg
• Noise level: 55 dB(A)

RAC1006 – 6kW

• Heat output: 6kW
• Max mounting height: 2.8 m
• Power supply: Single phase
• Dimensions (L×W×D): 985 × 339 × 155 mm
• Weight: 13.5 kg
• Noise level: 57 dB(A)

RAC1306 – 6kW

• Heat output: 6kW
• Max mounting height: 2.8 m
• Power supply: Single or 3-phase
• Dimensions (L×W×D): 1350 × 339 × 155 mm
• Weight: 20 kg
• Noise level: 60 dB(A)

RAC1309 – 9kW

• Heat output: 9kW
• Max mounting height: 3.4 m
• Power supply: Single or 3-phase
• Dimensions (L×W×D): 1350 × 339 × 155 mm
• Weight: 20 kg
• Noise level: 60 dB(A)

RAC1509 – 9kW

• Heat output: 9kW
• Max mounting height: 3.4 m
• Power supply: Single or 3-phase
• Dimensions (L×W×D): 1550 × 339 × 155 mm
• Weight: 23 kg
• Noise level: 62 dB(A)

RAC1512 – 12kW

• Heat output: 12kW
• Max mounting height: 3.4 m
• Power supply: Single or 3-phase
• Dimensions (L×W×D): 1550 × 339 × 155 mm
• Weight: 23 kg
• Noise level: 62 dB(A)

• Energy efficient climate control: Reduces heat loss and prevents cold drafts at entrances.
• Range of outputs: Choose from 3kW, 4.5kW, 6kW, 9kW, or 12kW models to suit different spaces.
• Compact installation: Requires only 210mm recess depth, ideal for suspended ceilings.
• Flexible power options: Available in single and 3-phase versions for site compatibility.
• Multiple settings: Three heat levels plus fan-only mode for year-round use.
• Safety protection: Automatic thermal overload cut-out prevents overheating.
• Discreet design: Supplied with a white grille for a professional finish.
• Remote control: Wired switch included for easy adjustment.
