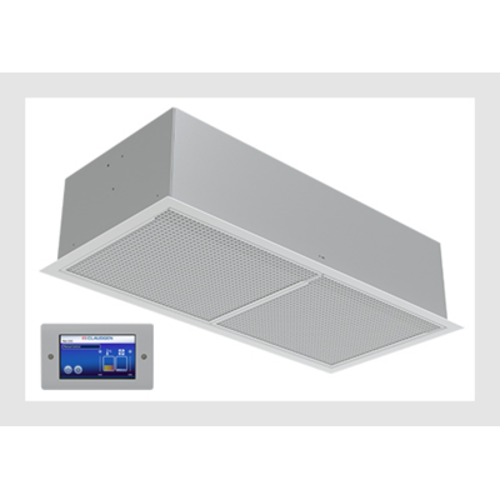

Consort RAC-HL Large Recessed Air Curtains

The Consort RAC-HL is an advanced range of large, recessed, ceiling-mounted air curtains suitable for commercial and industrial applications. Available in heat outputs from 8 to 24kW, these 3-phase 50Hz units create an effective barrier against heat loss and climate control problems at doorways and windows.

Advanced electronic control

At the heart of these recessed air curtains is the electronic touchscreen controller, which allows easy control and monitoring of interconnected air curtains from one central point. The controller provides a choice of operating modes to optimise energy efficiency, adjustable heat settings, fan speeds, and a 7-day timer. Enhanced security is provided through PIN code access to prevent unauthorised changes.

Flexible installation

Despite its advanced functionality, the RAC-HL is simple to install thanks to its plug-and-play wiring system and shallow 300mm recess requirement. Units can be interconnected to cover large doorways and open spaces. The downward-blowing airflow forms an adjustable barrier to manage heat loss and climate control.

Performance & efficiency

With intelligent control of fan speed and heat output via the external temperature sensor, the RAC-HL delivers significant energy savings by preventing unnecessary heat loss and system operation. The EC fan motors are highly efficient, and straightforward energy usage monitoring helps identify savings. Overall, the RAC-HL provides the optimum balance of comfort and efficiency.

Model: RAC10HL
Rating (kW): 8 – 12
Max. Mounting Height (m): 4
Weight (kg): 34
dBA: 60
Depth (mm): 270
Width (mm): 515
Length (mm): 1082

Model: RAC15HL
Rating (kW): 12 – 18
Max. Mounting Height (m): 4
Weight (kg): 51
dBA: 61
Depth (mm): 270
Width (mm): 515
Length (mm): 1592

Model: RAC20HL
Rating (kW): 16 – 24
Max. Mounting Height (m): 4
Weight (kg): 68
dBA: 62
Depth (mm): 270
Width (mm): 515
Length (mm): 2102

Adjustable Heat Output: Select from 8kW to 24kW models to match your heating requirements for effective climate control.

Electronic Touchscreen Controller: Provides intuitive control, monitoring and programmable settings to optimise efficiency across multiple air curtains.

External Temperature Sensor: This sensor enables the system to respond to indoor and outdoor conditions, adjusting fan speed and heat output to save energy.

Interconnectable Units: Cover even the largest commercial doorways by connecting multiple units to form a seamless air curtain.

Shallow 300mm Recess: Suits most ceilings and requires minimal modification for quick and easy installation.

Plug-and-Play Wiring: Direct wiring with RJ45 cables allows simple connection of components without junction boxes.

Energy Usage Monitoring: Check usage over various periods to identify savings from reduced heat loss.

Multiple Modes: Select from manual, automatic, constant temperature or advanced modes to precisely match needs.
