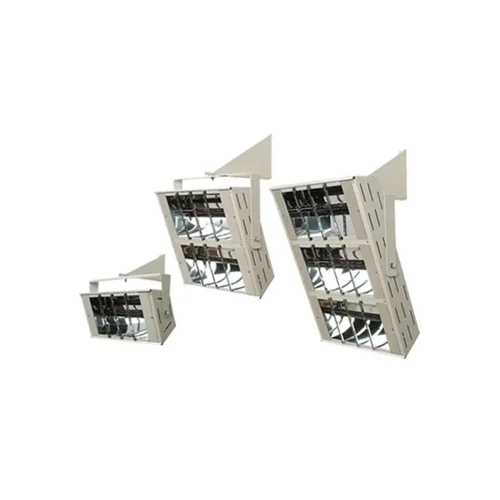

Consort Quartz Zone Halogen Radiant Heaters

The Consort radiant heaters are shortwave heaters designed for targeted heat delivery in large spaces such as workshops or warehouses. With heat outputs ranging from 1.5kW to 4.5kW, these heaters provide instant warmth using halogen lamps, offering a cost-effective option where large-scale heating would be inefficient.

Instant heat

These halogen radiant heaters generate instant, powerful shortwave heat, making them ideal for spot heating. They come in 1.5kW, 2kW, 3kW, and 4.5kW options, with the 4.5kW model compatible with both single and three-phase power supplies. The wide range of heat outputs means there is a radiant heater that will almost certainly meet your requirements.

Robust

Made from anodised aluminium, the heaters can withstand difficult conditions and environments. Each unit comes with a fitted guard for added safety in busy workplaces. They can be mounted on either walls or ceilings and come equipped with an angular and directional fixing bracket.

Energy efficient

The range of halogen radiant heaters is designed to be energy-efficient, lowering energy consumption and reducing bills. A ‘Soft Start’ control is available, which slowly increases the power when the unit is switched on, reducing energy spikes and extending the life of the heater.

Model No: HE7915
kW: 1.5
Height: 230
Depth: 120
Width: 450
Weight: 3.1
Recommended Mounting Height: Wall Mount (m): 2.5
Recommended Mounting Height: Ceiling Mount (m): 3
No. of Lamps: 1

Model No: HE7920
kW: 2
Height: 230
Depth: 120
Width: 450
Weight: 3.1
Recommended Mounting Height: Wall Mount (m): 2.7
Recommended Mounting Height: Ceiling Mount (m): 3.2
No. of Lamps: 1

Model No: HE7930
kW: 3
Height: 435
Depth: 120
Width: 450
Weight: 5.9
Recommended Mounting Height: Wall Mount (m): 3
Recommended Mounting Height: Ceiling Mount (m): 3.6
No. of Lamps: 2

Model No: HE7945
kW: 4.5
Height: 650
Depth: 120
Width: 450
Weight: 7.6
Recommended Mounting Height: Wall Mount (m): 3.3
Recommended Mounting Height: Ceiling Mount (m): 4.1
No. of Lamps: 3

1.5kW - 4.5kW Heat Output: Offers a range suitable for different space sizes, with single and three-phase options for the 4.5kW model.

Durable Aluminium Components: Constructed from anodised aluminium for reliable performance in demanding environments.

Fitted Guard: Protects users from accidental contact with the heater.

Wall or Ceiling Mounting: Flexible installation options with supplied angular and directional brackets for customised heat direction.

Optional ‘Soft Start’ Control: Gently increase power on start-up for reduced energy consumption and prolonged heater life, gently increasing power on startup.

Instant Shortwave Heat: Provides fast heat using halogen lamps, perfect for heating in large or open spaces.
