Calorex DH 15AX Wall Mounted Dehumidifier
15 Litres

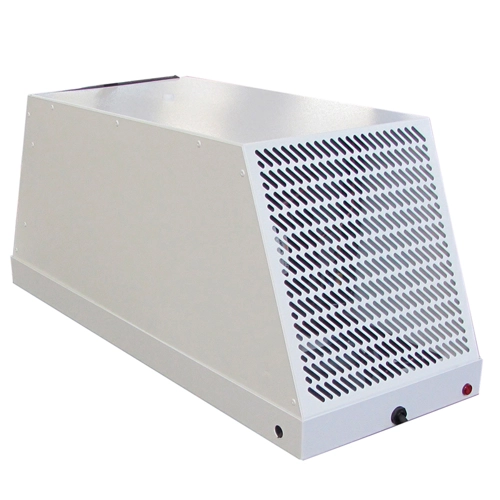

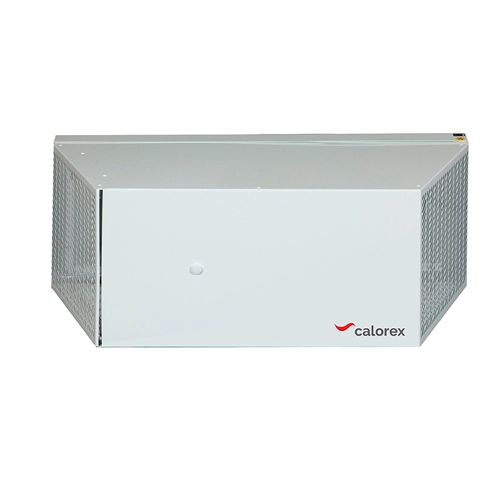

Calorex DH 15AX Dehumidifier

Compact wall-mounted dehumidifier for commercial areas

The Calorex DH 15AX dehumidifier is a compact unit that removes up to 15 litres of moisture from a space daily. It has a compact wall-mounted design so it can be instal7led discreetly in spaces and even fits in stairwells, wall cavities, rafters and ceilings. It is suitable for use in spaces such as garages, museums, galleries, leisure centres, schools and more. The Calorex DH 15AX is suitable for public spaces, as it is fully automated and features tamper-proof controls.

This commercial dehumidifier has an integrated humidistat and a 10mm drainage hose connection that can be installed through walls to drainage systems to run continuously and unattended. There is no need to empty collected water from the machine. The Calorex DH 15AX has an operating temperature range of 0-35°C and an automatic defrosting function built into the system. It is capable of working well in different conditions and changing climates.

The Calorex DH 15AX dehumidifier is a robust and durable unit, with an epoxy-polyester painted zintec steel cabinet. It is designed to withstand continuous use in challenging environments, and the housing protects the components, ensuring reliability and longevity. The air inlet vent has an integrated air filter that captures suspended particles, such as dust, loose hairs and more. The air filter prevents small particles from entering the unit and stops them from circulating the area, improving the indoor air quality.

Operating Temp Range: 0-35°C
Dehumidification @ 30°C/60% RH: 15l/24h
Heat Recovered To Air @ 30°C/60% RH: 0.9kW
Airflow: 225m3/h
External Static Pressure: 0Pa
Sound Pressure Level @ 3m: 53dB(A)
Refrigerant: R407c
Power Supply: 230/1ph/50V/Hz
Nominal Power Consumption: 0.43kW
FLA: 3.8A
Maximum Supply Fuse: 10A
LRA (Compressor Start): 18A
Dimensions (w x d x h): 825 x 363 x 320mm
Condensate Drain Size: 10mm
Weight: 33kg

15L/24Hr Water Removal: This commercial dehumidifier offers efficient performance, with cooling and compressor operating times based on an internal microprocessor calculation to optimise performance.

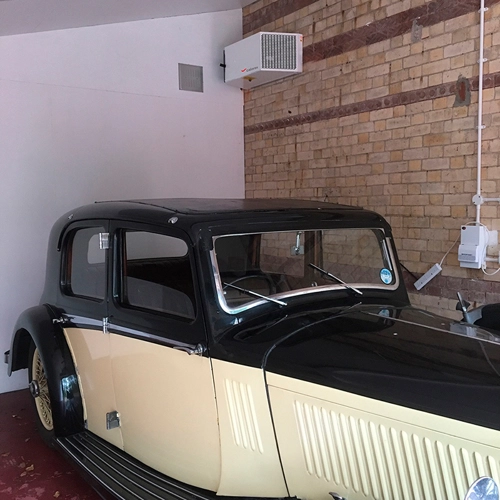

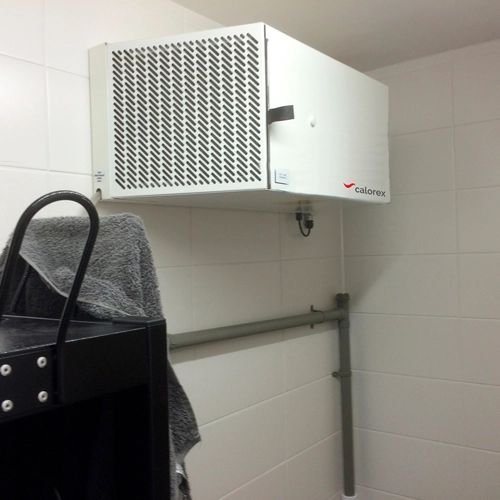

Compact Wall Mounted Design: The Calorex DH 15AX dehumidifier is small enough for installation in confined spaces, such as stairwells, corridors, wall cavities, rafters, and more.

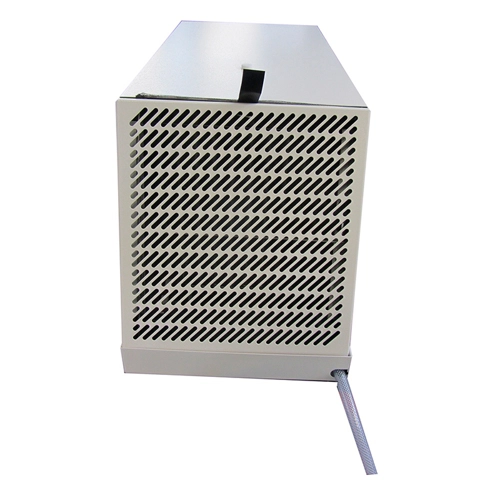

Drainage Hose Connection: This dehumidifier is designed to have a hose connected to it and fed out of an external wall, allowing condensate to drain away. There is no tank to empty, so dehumidifier can run continuously.

Integrated Humidistat: The humidistat allows you to set a prefered humidity level for a room, then it will switch the dehumidifier on and off automatically, when needed to maintain the desired humidity level. An optional remote humidistat is also available, which can be wired to the dehumidifier with up to 100m of cable (1mm SQ cable), allowing control of the set humidity level away from the unit.

Integrated Air Filter: While running, the Calorex DH 15AX captures and filters out suspended particles, such as dust, loose hairs, improving the indoor air quality.

Self Contained / Fully Automatic: The Calorex DH 15AX can run continuously and unattended so that it can extract the maximum amount of excess moisture from a room.

Hot Gas Defrost: The DH 15AX has an automatic defrost function built into the system. If the evaporator reaches near freezing temperatures, the defrost function flushes the evaporator with hot gas to melt any formed ice. Once a preset temperature is reached, the dehumidifier resumes regular operation.

Robust Build: The Calorex DH 15AX dehumidifier has an epoxy polyester painted zintec steel cabinet that offers durability throughout regular use. It also protects all the internal working components.

Tamper Proof Controls: The controls are designed so that they cannot be altered by unauthorised individuals or children. This dehumidifier is ideal for public spaces, such as schools, museums, galleries, leisure centres, and more.
