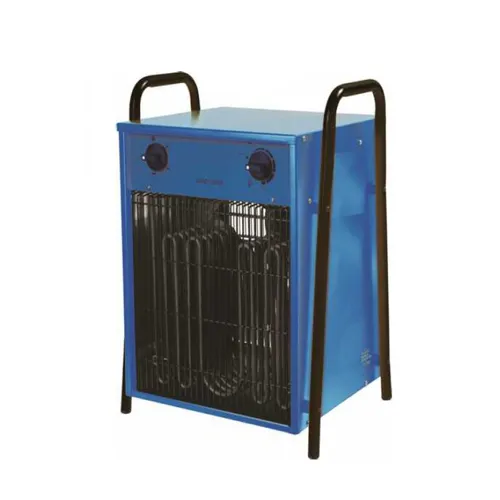

Broughton IFH9 Industrial Electric Fan Heater
9kW

Broughton IFH9 Industrial Electric Fan Heater

Portable three-phase 9kW heater

The Broughton IFH9 is a 9kW three-phase industrial electric fan heater with an airflow of 1198m3/h that can heat an area of 80m2. It is ideal for quickly warming up areas during colder months in workshops, warehouses, factories and more.

The Broughton IFH9 portable electric heater is safe to use in smaller, enclosed spaces, as the unit produces only clean, odourless, fume-free warm air. It is a safe and practical heating solution when direct oil and gas space heaters are not an option.

The Broughton industrial heater has sturdy, integrated handles and weights just 9.6kg. The outer casing is made from steel with a rugged enamel finish, which provides impact resistance. There are three running settings available, which include 4.5kW and 9kW heat output for better climate control.

The IFH9 heater is thermostatically controlled, so that a comfortable heat level can be maintained. There is also overtemperature protection included as standard. A fan-only mode can be used for ventilation without the heating elements for during the summer months.

The Broughton IFH9 is a three-phase electric heater with straightforward controls. It comes supplied with a 16A 5 pin appliance inlet (3P+N+E) and a 16A 5 pin mains cable (3P+N+E), which is approximately 1.8m in length. Other lengths of power cable are available on request.

Power: 9kW
Supply: 400v 3phase 50hz
Settings: Fan Only / 4.5kW / 9kW
IP Rating: IP20
Air Output: 1198 m3/hr
Approx Heating Area: 80m2
Dimensions: 355x300x490mm
Weight: 9.6kg
Overtemp protection: Yes
Thermostat Fitted As Standard
Plug Type: 16A 5 pin Three Phase Mains Cabl
Warranty: 2 Years

100% Clean Warm Air: Can be used in enclosed and confined spaces, as the heater is powered by electricity. It produces no fumes and does not consume oxygen within the space.

9kW Heat Capacity: Excellent heating capability from such a compact unit.

1198m³/hr Airflow: Ideal for heating industrial areas up to around 80m2.

Two Heat Settings: Operates either at full capacity (9kW) or half capacity (4.5kW).

Fan Only Mode: Fan can be operated without heat to provide ventilation.

Tough & Durable Construction: Robust steel casing with enamel finish.

Integrated Thermostat: The heater will switch itself on and off as required to maintain the set temperature.

Over Temperature Protection: A safety fail-safe feature that automatically shuts the heater down if it overheats.

Portable Design: Compact size with convenient carry handles mounted at the sides. Makes the heater easy to transport and move around a site.

5 Pin 16A Appliance Inlet: Powered by 400v (3 phase) power supply. 2m power cable available as optional accessory.

Fully Serviceable Equipment: Easy to maintain and repair when required to provide years of reliable service. High quality industrial heater made in the UK.
