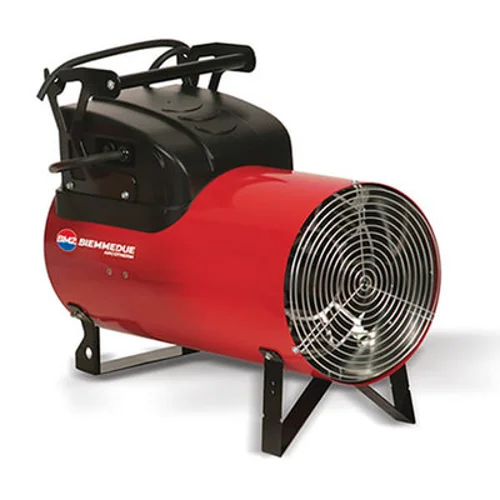

Arcotherm EK10C Industrial Electric Fan Heater - 3 Phase

The Arcotherm EK10C is a powerful, versatile electric fan heater designed for industrial use. With a maximum heating capacity of 10kW, this Arcotherm model can effectively heat large spaces including warehouses, factories and construction sites.

Effective heating for industrial spaces

With a dual heat output, the EK10C electric heater can operate at full 10kW capacity or reduced 6.6kW capacity. The high-powered AISI 321 heating elements produce substantial heat output up to 1500m3/h airflow, allowing the EK10C to rapidly warm expansive industrial environments. The portable electric heater can be ducted, circulating warm air through up to 6 metres of ducting to precisely direct heat.

Convenient temperature control

The built-in thermostat on this portable heater enables users to set a desired temperature. The heater will then automatically switch on and off to maintain the set temperature. This convenient feature maximises heating efficiency and saves energy. For safety, a separate thermal cut-out automatically shuts off the heater if overheating is detected.

The durable and compact steel body of this electric fan heater makes it highly portable and easy to reposition to wherever heating is needed. Weighing just 26.5kg, the unit is lightweight and stackable for simplified storage and transportation between work sites. With rapid heating and precise temperature control, the Arcotherm EK10C provides an ideal heating solution for industrial applications.

Max Rated Heating Power: 10kW
Min Rated Heating Power: 6.6kW
Airflow: 1,500 m³/h
Temperature Rise (a 20°C): 48.3 – 30.5 °C
Current Max: 13.6 – 7.1 A
Electrical Power: 400v - 3 Ph - 50 Hz
Dimensions (L x W x H): 505 x 277 x 511 mm
Weight: 13kg

Powerful 10kW Heating Capacity: Provides substantial warmth for large industrial spaces like warehouses, factories and construction sites.

Dual Heat Output Levels: Operates at full 10kW or reduced 6.6kW depending on heating requirements, maximising efficiency.

Built-In Thermostat: Allows users to preset a temperature for automatic on/off heating control, maintaining desired warmth conveniently.

Robust AISI 321 Heating Elements: Specially designed to rapidly produce high volumes of heat for fast warm-up times.

Compact and Portable: Weighing just 26.5kg, the lightweight unit is easy to move around and position wherever heating is required.

Stackable Design: Enables simplified storage and hassle-free transportation between locations.
