Arcotherm EC85 Indirect Oil Fired Space Heater
81kW

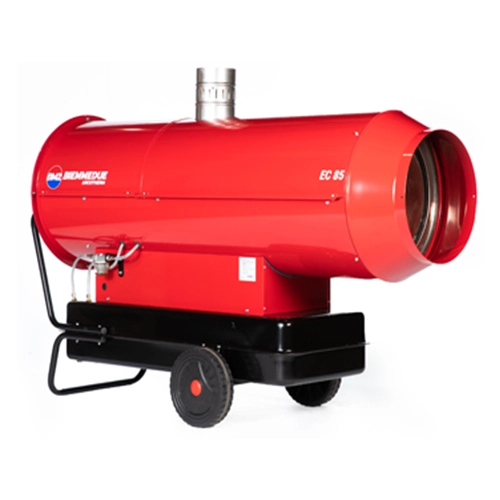

Arcotherm EC85 Indirect Oil Fired Space Heater

Ideal for heating events, parties and marquees.

The Arcotherm EC85 is an 81kW indirect diesel space heater with an airflow rate of 4300m³/hr, which allows only clean, fume-free warm air into the space and is safe to use for heating larger enclosed environments with little ventilation, such as halls, workshops and marquees.

The EC85 diesel heater can be wheeled into position outside the space and the heat is ducted inside, while any fumes produced during the diesel combustion process are expelled outside via the exhaust.

The Arcotherm EC85 indirect diesel heater features an automatic built-in oil burner and a Danfoss pump. Arcotherm EC85 heaters can be used with up to 7.6m of ducting and can also fit a two-way splitter, which allows you to connect two sections of ducting to the one heater.

The EC85 diesel space heater has a robust steel fuel tank, AISI 430 stainless steel combustion chamber, electronic flame control, safety thermostat and electronic control panel. The Arcotherm EC85 indirect diesel space heater is mounted on a set of strong wheels with a handlebar, which allows it to be moved around. The EC85 can also be connected to a thermostat.

Also available is the heavy-duty version of the EC85, which has a larger 135 litre fuel tank and will operate up to 18 hours continuously in the manual position. The EC85 HD indirect fired diesel heater has metal sheathed and hydrocarbon resistant rubber fuel hoses. They can also be used in conjunction with a Heavy-Duty Thermostat, which will automatically turn on and off as required. EC85 HD heaters come complete with a Tigerloop kit, allowing connection to an external tank if needed.

Heating Capacity = 81kW / 275000Btu/hr
Weight = 110kg
H x W x D = 1025 x 690 x 1740mm
Hose Length = 3m or 7.6m
Hose Diameter = 405mm
Tank Capacity = 105 litres

Consumption Rate = 7.2 l/hr
Airflow = 4300m³ / hr
Thermal Efficiency = 88.5%

100% Clean Hot Air: The heater blows out 100 per cent clean, fume-free warm air from its warm air outlet.

Ducting Connection: Lengths of ducting can be attached to this heater. This makes it ideal for heating enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately.

Tough & Robust: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.

High Quality Features: Robust hydrocarbon resistant polythene fuel tank, AISI 430 stainless steel combustion chamber, automatic built-in oil burner, Danfoss pump, electronic flame control and electronic control panel.

Overheat Thermostat: Shuts down the heater automatically if it overheats.

Dual Voltage Power Supply: Allows you to select the appropriate power supply for the space that you need to heat (240v / 110v).

Portable Design: Large wheels and a handle make the heater very portable. It is easy to transport, position and re-position.

Thermostat Connectivity: An optional thermostat can be connected to this heater. The thermostat will switch the heater on and off as required to maintain the set temperature.
