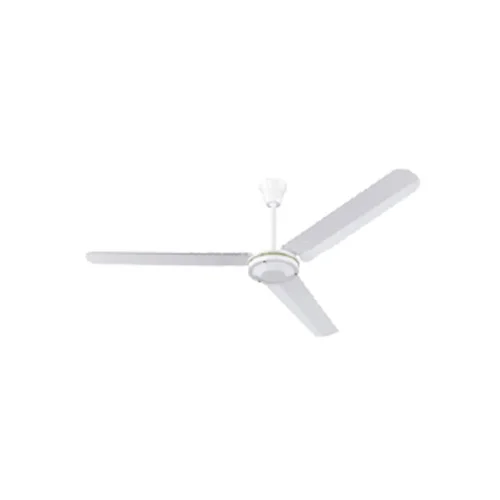

Reznor Impellor Series Destratification Fan

The Reznor Impellor Series destratification fan is an elegant and reliable air circulation system evenly distributing warm air for comfort and potential energy savings. With its powerful 230-volt motor and specially designed blades, this durable fan provides efficient temperature regulation up to 12,000 m3/h.

Optimise comfort and efficiency

Strategically circulating air, the Impellor Series fan destratifies rising heat to maintain steady, uniform temperatures throughout a space. Its wide area coverage gently pushes down warm air from ceiling levels, using minimal energy for optimised comfort. Reducing the need for prolonged central heating use, the fan’s air displacement may cut fuel costs by up to 15%.

Thoughtful design for performance

Built with precision in mind, this destratification fan features a robust die-cast aluminium housing and three dynamically balanced blades. Its 60 watt, 230 volt motor provides efficient operation, distributing a gentle breeze. The fan works effectively at standard voltage, with a fuse rating of 3 amps. Two-speed controller options allow custom control for up to 5 or 12 fans. Adjustable speeds and reversible rotation add further flexibility in installation.

With its elegant style, reliable construction and customisable controls, the Reznor Impellor destratification fan circulates air for comfort and potential energy savings. Strategically designed to distribute heat evenly, this powerful fan optimises efficiency.

B-IMI400-C
Air displacement m3/h Up to 12,000 m³/h
Mounting heights m 2.5 to 12
Floor coverage (at Max. height) m2 130
Maximum fan centres m 12
Clearance to walls m 2.5
Electrics
Supply V/ph/hz 230/1/50
Fuse rating amps 3
Motor Watts 60
Overall dimensions
Height mm 940
Blade sweep mm Ø 1400
Net weight Kg 4.3

Powerful Air Circulation: The fan effectively distributes up to 12,000 m3/h of air to evenly regulate temperatures for comfort.

Durable Construction: Made from robust die-cast aluminium with dynamically balanced blades, the fan is built to last.

230 Volt Operation: Running on just 60 watts, the standard 230V motor provides efficient, effective performance.

Uniform Heat Distribution: By gently circulating rising warm air, the fan destratifies heat for steady, uniform temperatures.

Reduced Heating Use: Destratification may lower central heating requirements by up to 15%, cutting fuel costs.

Customisable Controls: Two-speed controller options allow adjustment of up to 5 or 12 fans with customisable speeds and rotation.

Reversible Rotation: The ability to reverse airflow direction provides flexibility in installation for optimal coverage.

Elegant Styling: The fan adds elegance with its clean lines and durable aluminium housing.
