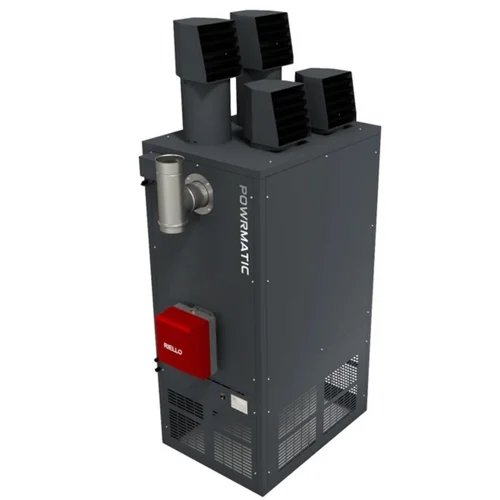

The Powrmatic CPx250 is a high-output 250kW oil-fired cabinet heater for large-scale industrial environments such as warehouses and workshops. It is easy to install and offers an upright design that saves space in large industrial buildings. The CPx250 is for any industrial space requiring consistent, powerful warmth.
The CPx250 delivers an exceptional 250kW of heat and is capable of quickly warming large areas. It boasts an airflow of 16,164 m³/h, a heat throw of up to 41m, and a fan pressure of 140Pa. Equipped with four adjustable airheads with variable louvres, the Powrmatic heater ensures that warm air is directed where it’s needed. An optional ducted air outlet can be added to handle different external static pressures, providing even more versatility.
This heater is powered by either red diesel or kerosene, offering flexibility in fuelling to suit your needs. It is ErP compliant, meeting the latest standards for reduced NOx emissions, making it both eco-friendly and cost-efficient. The CPx250 comes with a Powrmatic MC200 controller, which offers features like password protection, programmable timers, temperature-dependent start/stop, and thermostat control.
The Powrmatic CPx250 prioritises safety without compromising on performance. The unit features a state-of-the-art Riello Gulliver high-low burner for its reliability and efficiency in minimising operating costs. To manage exhaust fumes safely, the CPx250 is equipped with a 200mm diameter flue system, complete with a 90° flue tee and a flue gas analysis sample point.
The Powrmatic CPx250 is backed by a warranty that offers two years of parts coverage and one year of labour, and the heat exchanger is covered by a ten-year warranty for your peace of mind.
Model: CPx250
Output: 250kW
Input (nett CV) 35sec oil: 280.7kW
Old Powrmatic Reference: CP800
Thermal Efficiencies (Nett CV): Min 91.5%
NOx Seasonal (Gross): 97.3 mg/kWh
Seasonal Space Heating Efficiency (% hs,h): 72.5%
Airflow: 4.49 m³/s (16,164 m³/h)
Adjustable Heads: 4
Head Size: 457 mm
Air Throw: 41m
Pressure (Standard Fan): 140Pa
Power Supply: 400v / 3ph / 50Hz
Motor Power: 4kW
Run: 8 amp
Start: 28.2 amp
Connection (Oil): 3/8” BSP/Rc
Consumption Standard Outputs: 26.73 l/h
Overall Dimensions H x W x D (excluding burner): 3307 x 1104 x 1599 mm
Installation Clearances (Front / Side / Blank Side / Rear): 1000 / 1000 / 150 / 1000 mm
Flue Diameter: 200mm
Combustion Air Spigot Diameter: 150mm
Noise Level: 75 dB(A)
Nett Weight: 556kg
(Noise levels are applicable to standard models and are measured 5m from appliance and in free field conditions.)
Guarantees:
Powrmatic CPx heaters are provided with a comprehensive guarantee covering both the heater and the heat exchanger. For United Kingdom sales the heater has the benefit of a two year parts and one year labour guarantee whilst the heat exchanger assembly has a ten year time related warranty. All guarantees are subject to terms and conditions
