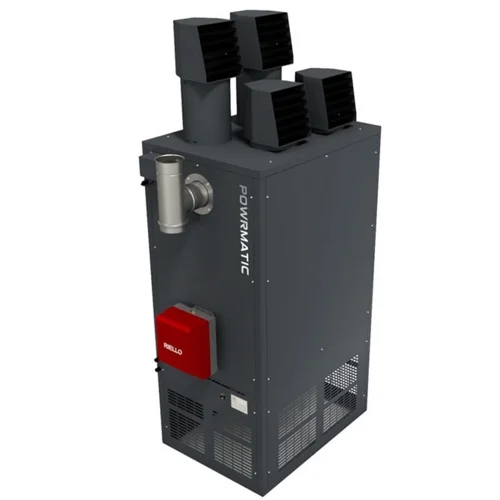

Powrmatic CPx200 Upright Oil Fired Cabinet Heater - 3 Phase


New

Powrmatic CPx200 Upright Oil Fired Cabinet Heater - 3 Phase

  • Exceptional 682,800 BTU/hr heating capacity
  • Quad 406mm air distribution outlets
  • Dual-fuel compatibility: red diesel or kerosene
  • ErP compliant with advanced control systems
  • Reduced NOx emissions for eco-efficiency
  • Delivery within a two-week timeframe
Call for advice 0808 196 6381
£8,245.18 £9,894.22 (inc VAT)
Rapid Delivery
In Stock
Payment by Visa, Master Card, PayPal Pay in 3, Pay By Bank, BACS

Description

Fuel Flexibility

The Powrmatic oil fired cabinet heater operates on 35sec oil (red diesel) and 28sec oil (kerosene), accommodating fuel availability and cost variations. This dual-fuel design ensures continuous heating, even during supply chain disruptions or market fluctuations.

Advanced Air Distribution

Four adjustable 406mm outlets with variable louvres form the core of the CPx200's air management system. This configuration and a 250Pa fan pressure facilitate uniform warmth distribution across expansive industrial spaces, maintaining a consistent 29-metre heat throw.

Environmental Performance

Incorporating high/low burner technology, the CPx200 achieves NOx emissions of 84.9 mg/kWh while maintaining 72.1% seasonal space heating efficiency. This design aligns with ErP regulations, balancing powerful heating with environmental responsibility.

Smart Control Integration

The MC200 controller transforms this oil fired cabinet heater into an intelligent climate system. It offers password protection, programmable timers, and thermostat controls for precise temperature management. A fan-only option provides ventilation without heat, enhancing year-round utility.

Industrial-Grade Construction

Designed for demanding environments, the CPx200 features a robust casing protecting vital components. Its construction withstands industrial rigours at 530kg and measures 3174 x 904 x 1399 mm. The 175mm flue system and 3/8 inch BSP/Rc fuel connection facilitate integration into existing setups.

Expansive Heating Capacity

With a 200kW output, the CPx200 effectively warms spaces up to 14,400 m³/h. This capacity suits large workshops, warehouses, and manufacturing facilities where consistent temperatures are essential for operations. The unit's 682,800 BTU/hr heat capacity ensures comprehensive coverage in vast industrial settings.

Specification

Model: CPx200
Output: 200kW
Input (nett CV) 35sec oil: 213.2kW
Old Powrmatic Reference: CP700
Thermal Efficiencies (Nett CV): Min 91.5%
NOx Seasonal (Gross): 84.9 mg/kWh
Seasonal Space Heating Efficiency (% hs,h): 72.1%
Airflow: 4 m³/s (14,400 m³/h)
Adjustable Heads: 4
Head Size: 406 mm
Air Throw: 29m
Pressure (Standard Fan): 250Pa
Power Supply: 400v / 3ph / 50Hz
Motor Power: 4kW
Run: 8 amp
Start: 23 amp
Connection (Oil): 3/8” BSP/Rc
Consumption Standard Outputs: 21.17 l/h
Overall Dimensions H x W x D (excluding burner): 3174 x 904 x 1399 mm
Installation Clearances (Front / Side / Blank Side / Rear): 1000 / 1000 / 150 / 1000 mm
Flue Diameter: 175mm
Combustion Air Spigot Diameter: 150mm
Noise Level: 74 dB(A)
Nett Weight: 530kg
(Noise levels are applicable to standard models and are measured 5m from appliance and in free field conditions.)

Guarantees:
Powrmatic CPx heaters are provided with a comprehensive guarantee covering both the heater and the heat exchanger. For United Kingdom sales the heater has the benefit of a two year parts and one year labour guarantee whilst the heat exchanger assembly has a ten year time related warranty. All guarantees are subject to terms and conditions
