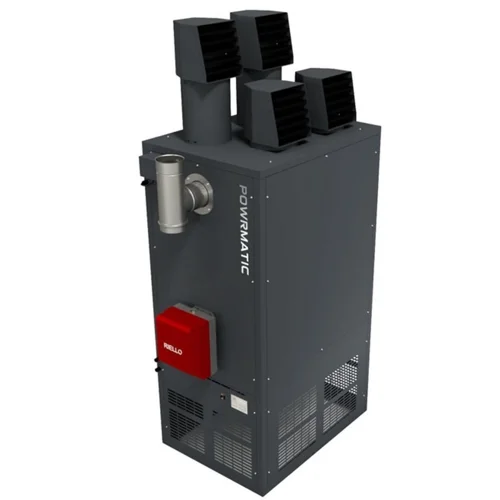

Powrmatic CPx150 Upright Oil Fired Cabinet Heater - 3 Phase


New

Powrmatic CPx150 Upright Oil Fired Cabinet Heater - 3 Phase

  • Mammoth 512,100 BTU/hr heating capacity
  • Quad-head air distribution system
  • Versatile diesel or kerosene operation
  • ErP compliant with cutting-edge controls
  • Eco-efficient design with NOx reduction
  • Delivery within fortnight timeframe
Call for advice 0808 196 6381
£6,085.65 £7,302.78 (inc VAT)
Rapid Delivery
In Stock
Payment by Visa, Master Card, PayPal Pay in 3, Pay By Bank, BACS

Description

Quad-Head Distribution System

The Powrmatic oil fired cabinet heater utilises four adjustable heads with variable louvres, each measuring 305/358 mm. This configuration allows for targeted warmth distribution across vast industrial spaces. With a 29-metre throw and 185Pa fan pressure, the system ensures consistent temperatures even in challenging layouts.

Fuel Flexibility and Efficiency

Adapting to various fuel sources, the CPx150 operates on 35sec oil (red diesel) and 28sec oil (kerosene). This versatility safeguards against supply chain disruptions and price fluctuations, providing you with peace of mind. The Riello Gulliver burner, featuring high/low technology, optimises fuel consumption while reducing NOx emissions to 69.2 mg/kWh.

Intelligent Climate Management

At the core of this oil fired cabinet heater sits the MC200 controller, offering advanced climate control features. With password protection, programmable timers, and thermostat controls, you have the power to manage temperatures precisely. The fan-only option provides ventilation without heat, adding to the unit's year-round utility.

Industrial-Grade Construction

Designed for demanding environments, the CPx150 boasts a robust outer casing protecting vital components. Weighing 386kg and measuring 2821 x 904 x 1200 mm, its solid construction withstands industrial rigours. The 175mm flue system and 3/8 inch BSP/Rc fuel connection facilitate integration into existing infrastructure.

Environmental Compliance

Meeting ErP regulations, the CPx150 achieves a seasonal efficiency of 75.2%. This eco-conscious design reduces environmental impact and contributes to lower operational costs, allowing you to operate responsibly. Despite its power, the unit maintains a 62 dB(A) noise level at a 5m distance.

Expansive Heating Capacity

With a 150kW output, the CPx150 effectively warms spaces up to 11,340 m³/h. This capacity makes it suitable for large workshops, warehouses, and manufacturing facilities where consistent temperatures are crucial for operations and comfort.

Specification

Model: CPx150
Output: 150kW
Input (nett CV) 35sec oil: 159.5kW
Old Powrmatic Reference: CP500
Thermal Efficiencies (Nett CV): Min 91.5%
NOx Seasonal (Gross): 69.2 mg/kWh
Seasonal Space Heating Efficiency (% hs,h): 75.2%
Airflow: 3.15 m³/s (11,340 m³/h)
Adjustable Heads: 4
Head Size: 305 / 358 mm
Air Throw: 29m
Pressure (Standard Fan): 185Pa
Power Supply: 400v / 3ph / 50Hz
Motor Power: 3kW
Run: 5.4 amp
Start: 23.5 amp
Connection (Oil): 3/8” BSP/Rc
Consumption Standard Outputs: 15.9 l/h
Overall Dimensions H x W x D (excluding burner): 2821 x 904 x 1200 mm
Installation Clearances (Front / Side / Blank Side / Rear): 1000 / 1000 / 150 / 1000 mm
Flue Diameter: 175mm
Combustion Air Spigot Diameter: 150mm
Noise Level: 62 dB(A)
Nett Weight: 386kg
(Noise levels are applicable to standard models and are measured 5m from appliance and in free field conditions.)

Guarantees:
Powrmatic CPx heaters are provided with a comprehensive guarantee covering both the heater and the heat exchanger. For United Kingdom sales the heater has the benefit of a two year parts and one year labour guarantee whilst the heat exchanger assembly has a ten year time related warranty. All guarantees are subject to terms and conditions
