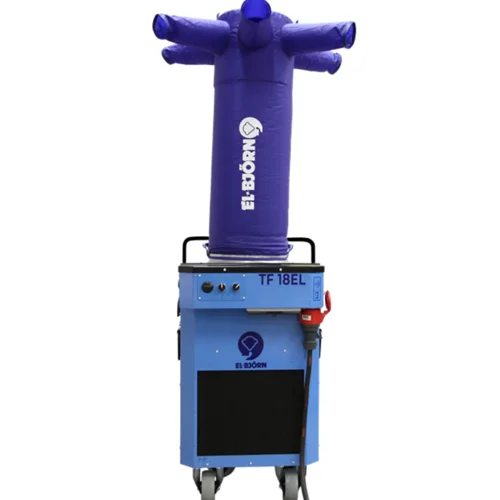

El-Bjorn TF 18EL 360-degree Electric Fan Heater - 400v, 3-Phase


New

El-Bjorn TF 18EL 360-degree Electric Fan Heater - 400v, 3-Phase

  • Powerful 18kW heating
  • 360° air distribution
  • Covers 350m2 areas
  • Durable construction
  • Portable design
Call for advice 0808 196 6381

Call for Price

Payment by Visa, Master Card, PayPal Pay in 3, Pay By Bank, BACS

Description

The El-Bjorn TF 18EL 360-degree Electric Fan Heater is an innovative heating solution that delivers powerful, consistent warmth across spaces up to 350m2. This 3-phase 400V fan heater provides next-level heating with upgraded motor performance and optimised airflow.

Innovative heating technology

Equipped with advanced airflow engineering, the El-Bjorn TF 18EL rapidly circulates heat with a textile or metal air distributor featuring six 95mm air ducts. The redesigned fan and housing geometry spreads warmth widely, eliminating cold zones. G4 filters and robust airflow enhance efficiency, while the mechanical thermostat enables precise temperature adjustments.

Durable and portable design

Built with galvanised steel and a powder-coated finish, this resilient electric fan heater withstands demanding conditions while remaining lightweight and portable. Integrated wheels and a handle frame ensure easy manoeuvrability, making it perfect for heating stairwells, flats, marquees and more. With 9kW or 18kW settings, this versatile unit can be adjusted to suit your space.

Experience consistent 360° warmth and next-level heating performance with the El-Bjorn TF 18EL Electric Fan Heater. The innovative heating technology and resilient yet portable design makes this electric fan heater the future of powerful and efficient area heating.  It delivers optimised airflow for consistent coverage across the entire space. With its upgraded power and advanced engineering, the TF 18EL electric fan heater sets a new standard for rapid, even heating.

Specification

Incoming 5-pol/400V 32A CEE 432-6 1 pcs

Rated current 27 A

Voltage 3N~400V V

Total thermal power 18 kW

Output modes 9-18 kW

Air flow 2500/2040 m³/h

Temperature increase 22/23 °C

Noise level 62/57 dB(A)

Weight tot 66 kg

Weight top 23,5 kg

Weight bottom 42,5 kg

Dimensions exkl. distributor H x W x D (mm) 1000 x 560 x 640 mm

Dimensions incl. distributor H x W x D 2150 x 560 x 640 mm

Protection class IP44

Seasonal average efficiency (ηs) 36%



TF18EL EBC

Incoming 5-pol/400V 32A CEE 432-6 1 pcs

Rated current 27 A

Voltage 3N~400V V

Total thermal power 18 kW

Output modes 9-18 kW

Air flow 2500/2040 m³/h

Temperature increase 22/23 °C

Noise level 62/57 dB(A)

Weight tot 66 kg

Weight top 23,5 kg

Weight bottom 42,5 kg

Dimensions exkl. distributor H x W x D (mm) 1000 x 560 x 640 mm

Dimensions incl. distributor H x W x D 2150 x 560 x 640 mm

Protection class IP44

Seasonal average efficiency (ηs) 36%
