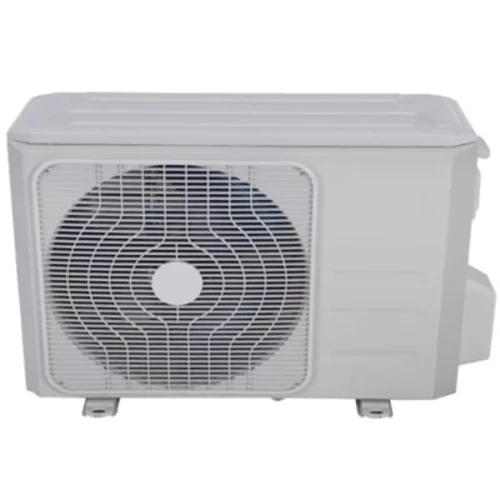

The Air Conditioning Centre 4-Head Outdoor Unit is a powerful yet quiet 4-head outdoor condenser unit that delivers efficient and customisable climate control for homes and commercial spaces. This 11kW, eco-friendly unit is ideal for use with up to 4 indoor air conditioning units.
Boasting an impressive 38,000 BTU capacity, the outdoor unit provides versatile cooling and heating for spaces up to 250 square meters. The unit removes heat and condensation from rooms, efficiently dissipating it outside. Auto restart functionality ensures continuous operation even after power failures. With an A++ energy efficiency rating for cooling and an A+++ rating for heating, this 4-head outdoor condenser delivers reliable, cost-effective climate control all year round.
Installation of this unit is simple, compact, slim, and requires just two pipe systems. The reasonable 63dB(A) noise level makes this unit unobtrusive. Mix and match the outdoor condenser with a selection of indoor units at the Air Conditioning Centre to create a customised system for your space. Easy to install and operate, this 4-head outdoor unit is the perfect addition to any home or office needing powerful yet quiet and efficient air conditioning.
Model No: KMS-4MI0/X1CM
Energy Efficiency Rating Cooling: A++
Energy Efficiency Rating Heating: A+++
Power Rating (Ph-V-Hz): 1 / 220-240V / 50Hz
Capacity BTU Cooling kW (Max kW): 36000 / 10.55 (12)
Capacity BTU Heating kW (Max kW): 38000 / 11.14 (13)
Power Input (W) Cooling/Heating (Max kW): 3620 - 3170 (4.5)
Current Input (A) Cooling/Heating: 12.7 - 12.9
EER (BTU/hr.w): SEER 6
COP (W/W): SCOP 3.6
Dehumidification (L/h): N/A
Indoor Noise Level dB(A) (Hi/M/Lo): N/A
Outdoor Noise Level dB(A): 63
Indoor Airflow (m3/h) (Hi/M/Lo): N/A
Max. Current Rating (A): 20
Net Dimension (mm) indoor (W/D/H): N/A
Net Dimension (mm) outdoor (W/D/H): 946x410x810
Net/Gross Weight (kg) indoor: N/A
Net/Gross Weight (kg) outdoor: 70
Max Room Size (m2): N/A
Max Conservatory Size (m2): N/A
Connecting Pipe Length (m): N/A
Pipe Diameter Liquid/Gas (Inch): 3 Sets of 1/4 & 3/8, 1 Set of 1/4 & 1/2
Selectable Temp Range ºC: N/A
Minimum Operating Temp (Cooling/Heating) ºC: -15
Automatic Restart after Power Failure: Yes
Automatic Refrigerant Leak Detection & Self Diagnosis Systems: Yes
Warranty: 5 Years (Must be installed by F-Gas registered installer, systems must be serviced by F-GAS registered installer and warranty & services must be registered with Air Conditioning Centre).
